OV5640 Camera Module

Product Features

Key Highlights

• Sensor：OmniVision OV5640 CMOS sensor (1/4" optical format)
• Resolution：2592×1944 pixels (5MP)
• Optics： Available in 60° or 120° FOV versions
• Focusing Distance：Supports focusing at 8 cm or 3 m

Model Comparison Table

Parameter	OV5640 Module (60°)	OV5640 Module (120°)
FOV	60°	120°
Focal Lengt (mm)	3.97	1.79
Aperture(F/No)	2.4	2.0
Focusing Distance	15cm or 400cm	8cm or 300cm

---

Specifications

Parameter	Description	Remarks
Max Resolution	2592×1944	JPEG/YUV Supported
Optical Format	1/4"	OmniBSI™
**Pixel **	5MP
FOV	60° / 120°	Optional versions
Aperture (F/No)	2.4（60°） / 2.0（120°）	Larger aperture improves low-light performance
Focal Length (mm)	3.97（60°） / 1.79（120°）	Shorter focal length enables ultra-wide FOV
Focusing Distance	8cm or 3m	Supports both close-up and distant scenes
Operating Temperature	-10°C ~ +65°C	Industrial-grade temperature range

---

Module Pinout

Pin	Signal	Type	Description
1	NC	-	Not Connected
2	AGND	Ground	Analog Ground
3	SDA	I/O	SCCB Data Line
4	AVDD	Power	Analog Power (2.8V)
5	SCL	I/O	SCCB Clock Line
6	RESET	Input	Hardware Reset (Active High)
7	VSYNC	Output	Vertical Sync
8	PWDN	Input	Power Down Control (Active High)
9	HSYNC	Output	Horizontal Sync
10	DVDD	Power	Digital Core Power （1.5V）
11	DOVDD	Power	Digital Output Power （1.8V）
12	D9	Output	Image Data Bit（D9）
13	MCLK	Input	Master Clock Input （24MHz）
14	D8	Output	Image Data Bit（D8）
15	GND	Ground	Digital Ground
16	D7	Output	Image Data BitD7）
17	PCLK	Output	Pixel Clock
18	D6	Output	Image Data Bit（D6）
19	D2	Output	Image Data Bit（D2）
20	D5	Output	Image Data Bit（D5）
21	D3	Output	Image Data Bit（D3）
22	D4	Output	Image Data Bit（D4）
23	NC	-	Not Connected
24	NC	-	Not Connected

---

Usage

Installation

1. Hardware Connection：

   • Connect the FPC connector (38.5×12.5 mm, 24-pin @ 0.5 mm pitch) to the host board.
   • Ensure proper wiring for power (AVDD/DVDD/DOVDD) and ground (AGND/DGND).

2. Initialization：

   • Configure the module via the SCCB interface (SDA/SCL) by writing to registers (refer to the Register Tables inOV5640 datasheet ）
   • Set parameters such as FOV, exposure time, and gain.

3. Image Output：

   • Enable the DVP (Digital Video Port) interface，Set the data format to YUV422 or RGB565.
   • Use VSYNC and HREF signals to synchronize and read image frames.

Notes

• ESD Protection：Always wear an anti-static wrist strap during operation.
• Power Stability：Ensure AVDD voltage fluctuation is within ±5%.
• Thermal Considerations：Adequate heat dissipation is required for prolonged operation.

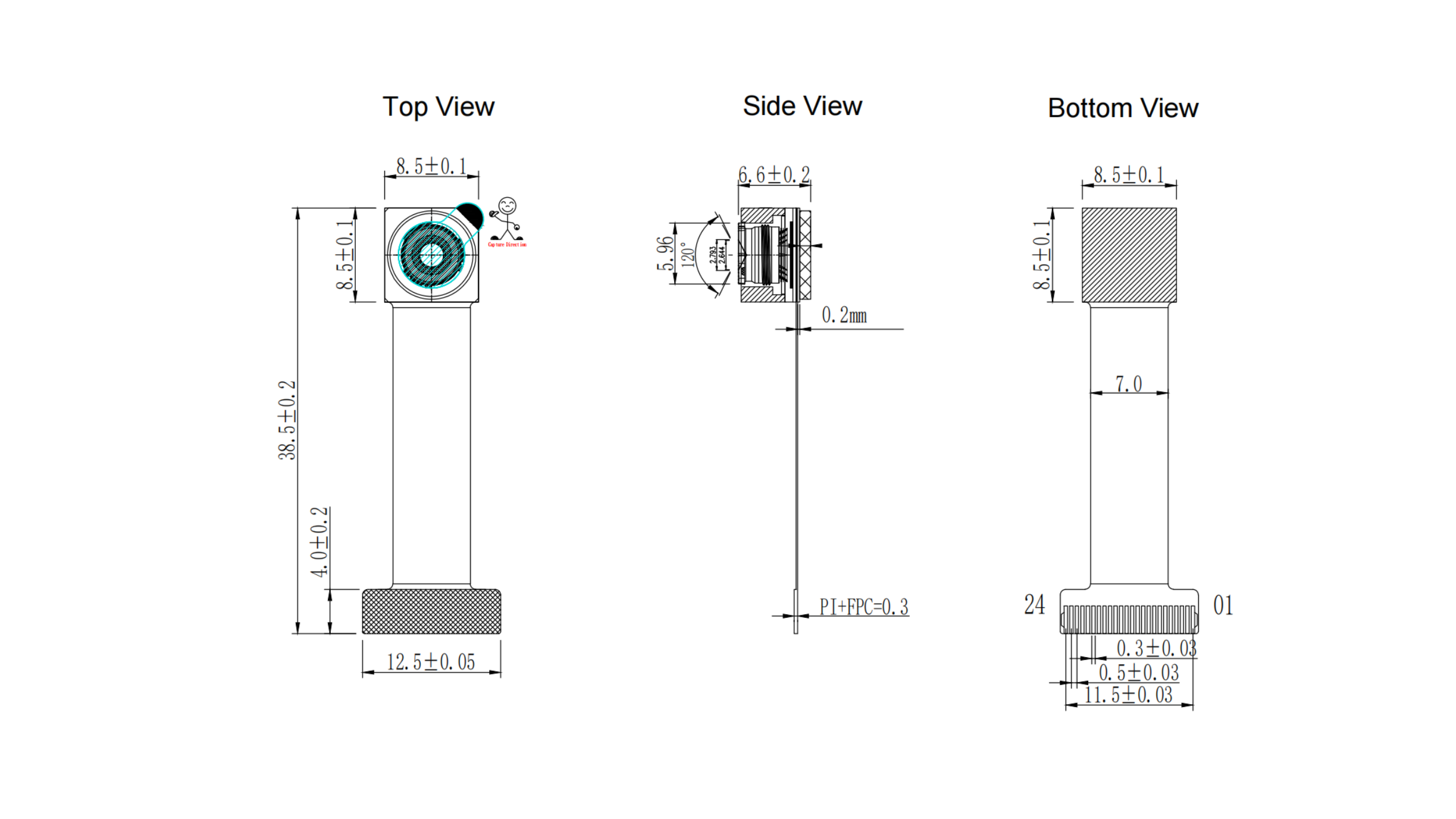

Dimension
