WIFI
本文档以 Realtek RTL8821CE 为例，介绍NG4520平台下 WIFI 驱动的安装与使用方法。
安装方式
WIFI 驱动支持两种安装方式：
-
系统内直接安装（推荐，简单快捷）
-
源码编译后烧写（适用于定制或内核版本不兼容场景）
系统内直接安装
安装步骤如下：
- 安装驱动
$ sudo apt update
$ sudo apt install rtl8821ce-dkms
- 加载驱动
$ sudo modprobe rtl8821ce
- 验证驱动加载
$ dmesg | grep rtl
典型日志输出示例：
[ 10.805932] rtl8821ce 0001:01:00.0: Adding to iommu group 3
[ 10.806901] rtl8821ce 0001:01:00.0: enabling device (0000 -> 0003)
[ 11.077841] Bluetooth: hci0: RTL: loading rtl_bt/rtl8821c_fw.bin
[ 11.079036] Bluetooth: hci0: RTL: loading rtl_bt/rtl8821c_config.bin
[ 11.320620] rtl8821ce 0001:01:00.0 wlP1p1s0: renamed from wlan0
源码编译安装
- 代码获取
- 官方仓库：GitHub - tomaspinho/rtl8821ce
- 寻求与 WiFi 厂商获取相关资源
- 目录放置
将源码放置于：
Linux_for_Tegra/source/nvidia-oot/drivers/net/wireless/realtek/rtl8821ce
- Makefile 配置
在主 Makefile 中添加：
obj-m += rtl8821ce/
按需修改 rtl8821ce 目录下 Makefile，使能 TEGRA 平台支持：
diff --git a/Makefile b/Makefile
index 5b5dc9a..01b1e24 100755
--- a/Makefile
+++ b/Makefile
@@ -15,6 +15,8 @@ EXTRA_CFLAGS += -Wno-unused-parameter
EXTRA_CFLAGS += -Wno-unused-function
EXTRA_CFLAGS += -Wno-unused
#EXTRA_CFLAGS += -Wno-uninitialized
+EXTRA_CFLAGS += -Wno-missing-prototypes
+EXTRA_CFLAGS += -Wno-error=misleading-indentation
GCC_VER_49 := $(shell echo `$(CC) -dumpversion | cut -f1-2 -d.` \>= 4.9 | bc )
ifeq ($(GCC_VER_49),1)
@@ -29,6 +31,7 @@ else
export TopDIR ?= $(srctree)/$(src)
endif
+TopDIR = $(srctree.nvidia-oot)/drivers/net/wireless/realtek/rtl8821ce
EXTRA_CFLAGS += -I$(TopDIR)/include
EXTRA_LDFLAGS += --strip-debug
@@ -113,7 +116,8 @@ CONFIG_RTW_SDIO_PM_KEEP_POWER = y
###################### MP HW TX MODE FOR VHT #######################
CONFIG_MP_VHT_HW_TX_MODE = n
###################### Platform Related #######################
-CONFIG_PLATFORM_I386_PC = y
+CONFIG_PLATFORM_TEGRA = y
+CONFIG_PLATFORM_I386_PC = n
CONFIG_PLATFORM_ANDROID_X86 = n
CONFIG_PLATFORM_ANDROID_INTEL_X86 = n
CONFIG_PLATFORM_JB_X86 = n
@@ -1212,6 +1216,15 @@ endif
EXTRA_CFLAGS += -DDM_ODM_SUPPORT_TYPE=0x04
+ifeq ($(CONFIG_PLATFORM_TEGRA), y)
+ARCH = arm
+KVER := $(shell uname -r)
+KSRC := /lib/modules/$(KVER)/build
+EXTRA_CFLAGS += -DCONFIG_LITTLE_ENDIAN
+EXTRA_CFLAGS += -DCONFIG_IOCTL_CFG80211 -DRTW_USE_CFG80211_STA_EVENT
+EXTRA_CFLAGS += -Wno-error=date-time
+MODULE_NAME = rtl8821ce
+endif
ifeq ($(CONFIG_PLATFORM_I386_PC), y)
EXTRA_CFLAGS += -DCONFIG_LITTLE_ENDIAN
EXTRA_CFLAGS += -DCONFIG_IOCTL_CFG80211 -DRTW_USE_CFG80211_STA_EVENT
@@ -2232,7 +2245,7 @@ ifeq ($(CONFIG_RTL8723B), y)
$(MODULE_NAME)-$(CONFIG_MP_INCLUDED)+= core/rtw_bt_mp.o
endif
-obj-$(CONFIG_RTL8821CE) := $(MODULE_NAME).o
+obj-m := $(MODULE_NAME).o
else
- 编译与烧录
执行内核或模块编译，将模块安装到 rootfs 下，烧录系统。具体编译、烧录方法参见 Jetson 官方文档。
- 使用与验证
加载驱动
$ sudo modprobe rtl8821ce
查看设备
$ sudo lspci
0001:01:00.0 Network controller: Realtek Semiconductor Co., Ltd. RTL8821CE 802.11ac PCIe Wireless Network Adapter
查看日志
$ sudo dmesg | grep rtl
[ 9.785137] rtl8821ce 0001:01:00.0: Adding to iommu group 3
[ 9.785307] rtl8821ce 0001:01:00.0: enabling device (0000 -> 0003)
[ 10.010615] Bluetooth: hci0: RTL: loading rtl_bt/rtl8821c_fw.bin
[ 10.011780] Bluetooth: hci0: RTL: loading rtl_bt/rtl8821c_config.bin
[ 10.441574] rtl8821ce 0001:01:00.0 wlP1p1s0: renamed from wlan0

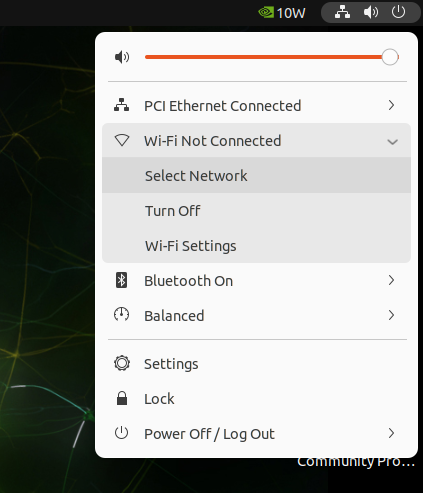

查看网络接口
ifconfig查看网络设备
wlP1p1s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.204.218 netmask 255.255.255.0 broadcast 192.168.204.255
inet6 fe80::aba:6776:77ec:4831 prefixlen 64 scopeid 0x20<link>
inet6 2409:8934:20d4:908:f2b8:fd54:f19a:a11a prefixlen 64 scopeid 0x0<global>
inet6 2409:8934:20d4:908:5de2:d217:83e0:d943 prefixlen 64 scopeid 0x0<global>
ether a4:e8:8d:0f:e4:ce txqueuelen 1000 (Ethernet)
RX packets 2060 bytes 2644294 (2.6 MB)
RX errors 0 dropped 48 overruns 0 frame 0
TX packets 1656 bytes 195010 (195.0 KB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0ons 0
网络连通性测试
$ ping -I wlP1p1s0 www.baidu.com
PING www.baidu.com(2409:8c20:6:1d55:0:ff:b09c:7d77 (2409:8c20:6:1d55:0:ff:b09c:7d77)) from 2409:8934:20d4:908:5de2:d217:83e0:d943 wlP1p1s0: 56 data bytes
64 bytes from 2409:8c20:6:1d55:0:ff:b09c:7d77 (2409:8c20:6:1d55:0:ff:b09c:7d77): icmp_seq=1 ttl=48 time=88.7 ms
64 bytes from 2409:8c20:6:1d55:0:ff:b09c:7d77 (2409:8c20:6:1d55:0:ff:b09c:7d77): icmp_seq=2 ttl=48 time=50.8 ms
64 bytes from 2409:8c20:6:1d55:0:ff:b09c:7d77 (2409:8c20:6:1d55:0:ff:b09c:7d77): icmp_seq=3 ttl=48 time=80.5 ms
64 bytes from 2409:8c20:6:1d55:0:ff:b09c:7d77 (2409:8c20:6:1d55:0:ff:b09c:7d77): icmp_seq=4 ttl=48 time=86.1 ms
如需支持其它 WIFI 芯片驱动，参考对应厂商文档和内核适配流程。
