DeepStream Multi-Stream Video Analytics on NG4500

Multi-stream RTSP video analytics on NG4500 (Jetson Orin) — a single box handles 2–32 cameras with HW decode + inference + tracking, emitting business events and re-publishing annotated RTSP.

---

1. Solution Overview

The deepstream extension wraps the NVIDIA DeepStream 7.1 SDK (a GStreamer-based video-analytics pipeline) for multi-stream RTSP inference on Jetson. The typical deployment: NeoMind on a Mac/PC, the sidecar on the NG4500, bridged over TCP.

Core capabilities:

• Multi-stream RTSP: 2–32 concurrent 720p/1080p streams on a single Jetson Orin NX 8G.
• Hardware pipeline: NVDEC → TensorRT → tracker (NvDCF/NvSORT) → nvdsanalytics → OSD → NVENC, zero-copy.
• Business analytics: line crossing, ROI intrusion, bidirectional counting, dwell time.
• Annotated output: RTSP stream with detection boxes / track IDs / analytics overlays, plus browser-friendly MJPEG thumbnails and JPEG snapshots.
• Event-driven: Detection / LineCross / ROIIntrusion / AnalyticsSnapshot pushed to the NeoMind EventBus to drive dashboards and automation.

Data Flow:

Live demo (multi-stream RTSP inference + tracking + business-event overlay):

---

2. Bill of Materials (BOM)

Item	Spec	Purpose	Required
NeoMind platform	v0.9.0+	Runs on Mac/PC, hosts the extension	✅
deepstream extension	v2.8.0+	Remote bridge + event routing	✅
NG4500	Jetson Orin NX/Nano/AGX, JetPack 6.x, DeepStream 7.1	Runs the DeepStream sidecar	✅
RTSP cameras	2–32 × 720p/1080p	Video sources	✅
Network	NeoMind ↔ NG4500 reachable (TCP 9556, etc.)	Remote bridge	✅

---

3. Deploy the DeepStream Runtime (NG4500)

The deepstream extension's Python sidecar runs on Jetson only (the DeepStream SDK is Jetson-only). Deploy it once on the NG4500 in six steps. For OS-level DeepStream SDK install details see the NG4500 DeepStream guide; the extension's most complete steps are in INSTALL.md.

Run everything on the NG4500 as a normal user; Docker commands rely on nvidia-container-runtime (bundled with JetPack).

3.1 Verify the system

Item	Requirement	Check
JetPack / L4T	R36.4.3 (JetPack 6.1 GA)	cat /etc/nv_tegra_release
Kernel	5.15.x-tegra	uname -r
Free disk	≥ 20 GB	df -h /var/lib
Memory	≥ 8 GB (validated on Orin NX 8GB)	free -h

3.2 Install DeepStream SDK 7.1

The official Debian package is the easiest path. Install the dependencies first:

sudo apt update
sudo apt install -y libssl1.1 libgstreamer1.0-0 gstreamer1.0-tools \
  gstreamer1.0-plugins-good gstreamer1.0-plugins-bad gstreamer1.0-plugins-ugly \
  gstreamer1.0-libav libgstrtspserver-1.0-0 libjansson4 libyaml-cpp-dev

Download deepstream-7.1_7.1.0-1_arm64.deb from NGC, then install:

sudo apt-get install ./deepstream-7.1_7.1.0-1_arm64.deb
sudo ldconfig

Verify:

deepstream-app --version-all
# deepstream-app version 7.1.0 / DeepStreamSDK 7.1.0 / CUDA 12.6 / TensorRT 10.3

tar / SDK Manager and other install options: NG4500 DeepStream guide §3.

3.3 Configure Docker

Two kernel quirks must be handled first, or containers retry endlessly or lose networking.

① Switch the storage driver to vfs — the kernel's overlayfs mishandles whiteout files in containers, making Docker retry and fill the disk:

sudo tee /etc/docker/daemon.json <<'EOF'
{
  "storage-driver": "vfs",
  "default-runtime": "nvidia",
  "runtimes": {
    "nvidia": { "path": "nvidia-container-runtime", "runtimeArgs": [] }
  }
}
EOF
sudo systemctl restart docker

② Always use --network=host — the kernel lacks the iptable_raw module, so Docker bridge networking fails. Every docker run in this guide uses host networking.

③ Log in to NGC (required to pull the base image). Create an API key at NGC, then:

echo "$YOUR_NGC_KEY" | docker login nvcr.io -u '$oauthtoken' --password-stdin

$oauthtoken is literal — keep the $ and single-quote it to prevent shell expansion. vfs does no layer dedup; run docker image prune -f regularly.

3.4 Build the sidecar image ds:7.1-pyds-gi

Pull the Jetson-specific base image (not the :7.1 datacenter variant, which lacks Jetson libs):

docker pull nvcr.io/nvidia/deepstream:7.1-samples-multiarch
docker tag nvcr.io/nvidia/deepstream:7.1-samples-multiarch ds:7.1-base

Get the pyds 1.2.0 wheel (matches DS 7.1 / Python 3.10):

wget https://github.com/NVIDIA-AI-IOT/deepstream_python_apps/releases/download/v1.2.0/pyds-1.2.0-cp310-cp310-linux_aarch64.whl
# If the filename has cp310 only once (common when downloaded from NGC), add the second ABI tag,
# or pip rejects it per PEP 427:
# cp pyds-1.2.0-cp310-linux_aarch64.whl pyds-1.2.0-cp310-cp310-linux_aarch64.whl

Place Dockerfile.sidecar in the same dir (layers Python GI bindings on top of pyds):

FROM nvcr.io/nvidia/deepstream:7.1-samples-multiarch

RUN apt-get update && apt-get install -y --no-install-recommends \
        python3-gi python3-gst-1.0 libpython3.10 python3-pip \
    && rm -rf /var/lib/apt/lists/*

COPY pyds-1.2.0-cp310-cp310-linux_aarch64.whl /tmp/
RUN pip3 install --no-cache-dir /tmp/pyds-1.2.0-cp310-cp310-linux_aarch64.whl \
    && rm /tmp/*.whl

WORKDIR /srv/sidecar

Build and verify pyds loads:

docker build --network=host -t ds:7.1-pyds-gi -f Dockerfile.sidecar .
docker run --rm --runtime=nvidia --network=host ds:7.1-pyds-gi \
    python3 -c "import pyds; print('pyds', pyds.__version__)"

3.5 Pre-build the TensorRT FP16 engine

On Orin NX 8GB, letting nvinfer build an INT8 engine at startup OOMs during tactic selection. Always pre-build an FP16 engine with trtexec so runtime only deserializes.

mkdir -p ~/ds-engines
docker run --rm --runtime=nvidia --network=host \
    -v ~/ds-engines:/engines ds:7.1-pyds-gi \
    trtexec \
        --onnx=/opt/nvidia/deepstream/deepstream/samples/models/Primary_Detector/resnet18_trafficcamnet_pruned.onnx \
        --saveEngine=/engines/trafficcam_fp16.engine \
        --fp16 --memPoolSize=workspace:1024

~3 s to produce a ~4 MB engine. TensorRT 10.3+ deprecates --workspace; use --memPoolSize.

trtexec defaults to batch-size=1; the sidecar's pipeline_builder.py forces nvinfer batch-size=1 to match. Keep batch sizes aligned in custom configs or nvinfer triggers a rebuild back into the OOM trap.

3.6 Prepare an RTSP test source (mediamtx + ffmpeg)

Without real cameras, loop a sample video as RTSP. Install mediamtx (ARM64v8, from releases):

tar xf mediamtx_v*.linux_arm64v8.tar.gz
./mediamtx &          # listens on 8554

Publish four test streams:

for i in 1 2 3 4; do
    ffmpeg -re -stream_loop -1 -i sample.mp4 -c copy \
        -f rtsp rtsp://localhost:8554/in/stream$i &
done

RTSP must use TCP (protocols=tcp). UDP fails because the kernel's multiudpsink can't resolve IPv6 localhost — Invalid address family (got 10).

---

4. Start the sidecar on the NG4500

Four services must be resident on the NG4500:

Service	Port	Purpose
mediamtx	8554 (RTSP)	RTSP relay — receives input streams and DeepStream's annotated output, serves them to clients
ffmpeg test source	—	Loops a sample video as RTSP (for testing; replace with real camera URLs in production)
mjpeg_server.py	8090 (HTTP)	Converts RTSP output to MJPEG for browser thumbnails
sidecar_bridge.py	9556 (TCP)	Bridge daemon between NeoMind and the Docker sidecar

4.1 One-shot start (recommended)

The extension does not ship a ready-made one-click script: create start_all.sh yourself on the Jetson (e.g. under ~/ds-deps/) using the script content given in the extension README. It brings up mediamtx, the test source, the MJPEG server, and the bridge daemon in order — the bridge then spawns the container:

./start_all.sh

The bridge daemon starts the ds:7.1-pyds-gi container with --runtime=nvidia --network=host, running deepstream_runner.py.

4.2 Start the sidecar container manually (for debugging)

Copy the sidecar source to the device (in production the .nep package installs it under ~/.neomind/extensions/deepstream/sidecar/, located via NEOMIND_EXTENSION_DIR):

scp -r extensions/deepstream/sidecar box@<jetson-ip>:~/ds-deps/

Prepare the JSONL control input (hello to register + add_stream for one test stream):

cat > ~/ds-deps/data-plane.jsonl <<'EOF'
{"id":"0","type":"hello","version":"1.0","capabilities":["streams","events"],"pid":12345,"rtsp_port":8554,"snapshot_port":8555,"log_level":"info","models_dir":"/opt/nvidia/deepstream/deepstream/samples/models","max_streams":4,"snapshot_bind_addr":"0.0.0.0"}
{"id":"1","type":"add_stream","config":{"stream_id":"test-1","source":{"type":"rtsp","url":"rtsp://localhost:8554/in/stream1","rtsp_transport":"tcp","latency_ms":200},"model":"Primary_Detector"}}
EOF

Start the container (feed the JSONL; send shutdown after 60 s for easy observation):

docker run --rm -i --runtime=nvidia --network=host \
    -v ~/ds-deps/sidecar:/srv/sidecar:ro \
    -v ~/ds-deps/data-plane.jsonl:/srv/data-plane.jsonl:ro \
    -v ~/ds-engines:/engines:ro \
    ds:7.1-pyds-gi \
    bash -c "(cat /srv/data-plane.jsonl; sleep 60; echo '{\"id\":\"2\",\"type\":\"shutdown\",\"graceful_secs\":3}') | timeout 90 python3 /srv/sidecar/deepstream_runner.py"

models_dir must not end with / — a trailing slash breaks os.path.dirname() path resolution.

4.3 Verify

The sidecar emits JSONL on stdout; you should see, in order:

1. hello_ack — registration succeeded, with max_streams and the RTSP prefix rtsp://0.0.0.0:8554/ds/;
2. stream_added — the stream is ready, with its full RTSP URL (e.g. rtsp://0.0.0.0:8554/ds/test-1);
3. Detection — per-frame inference results.

Test-source connectivity:

ffprobe -v error rtsp://127.0.0.1:8554/sample   # expect h264

With the four services up, head back to NeoMind to configure the remote sidecar (next section).

---

5. Configure the NeoMind extension (remote mode)

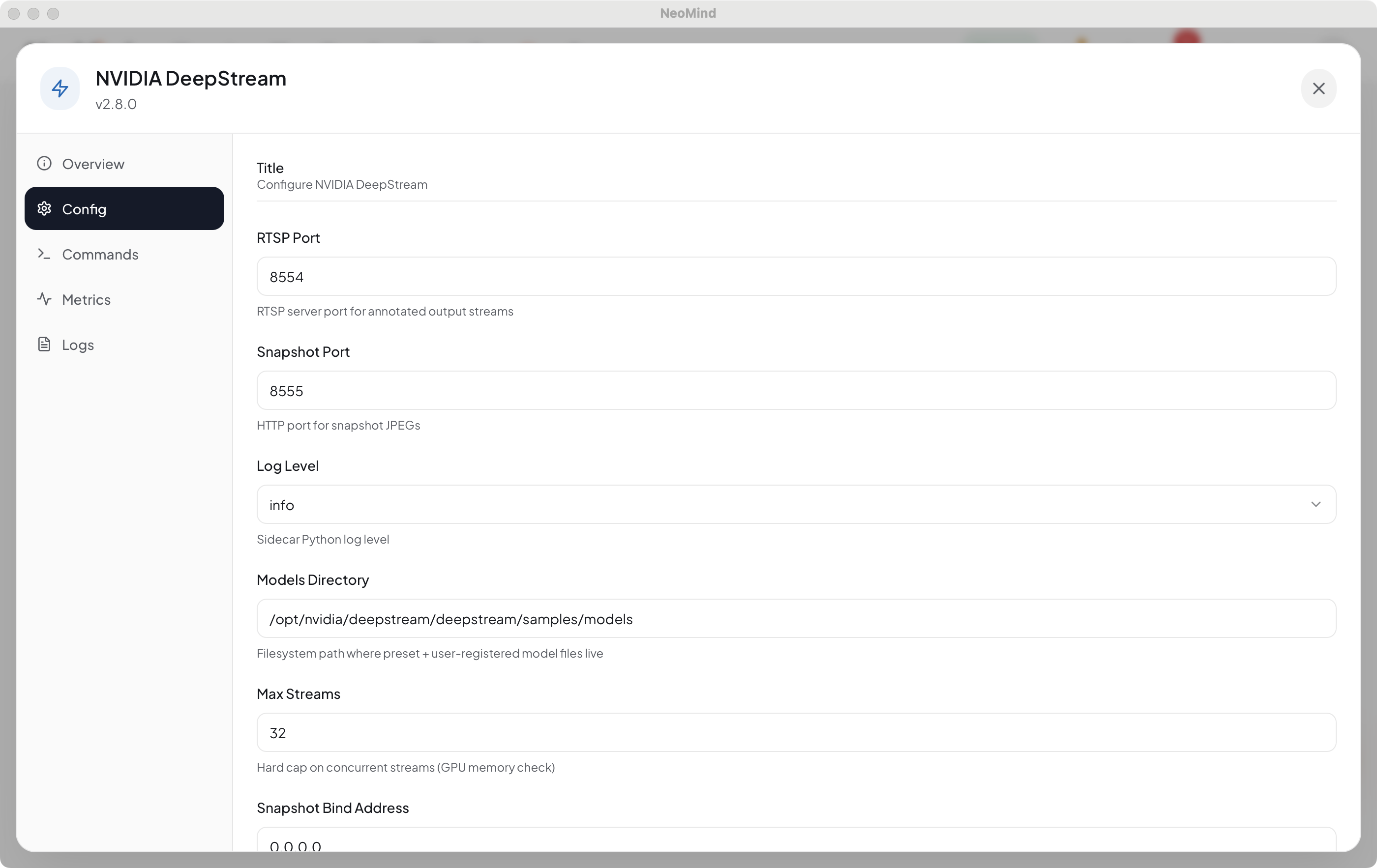

After installing the deepstream extension in NeoMind, switch it to remote mode in Configuration and point it at the NG4500:

Parameter	Value	Description
sidecar_mode	remote	Sidecar runs on a remote NG4500 (not a local child process)
sidecar_host	NG4500 IP	Remote bridge address
sidecar_port	9556	Bridge TCP port
server_host	same NG4500 IP	Used by the frontend to build preview / RTSP URLs
rtsp_port	8554	Annotated RTSP output port
snapshot_port	8555	Snapshot HTTP port
max_streams	32	Concurrent stream cap (1–64)
models_dir	DeepStream sample models dir	Model files location

On save, the extension connects to the sidecar over TCP.

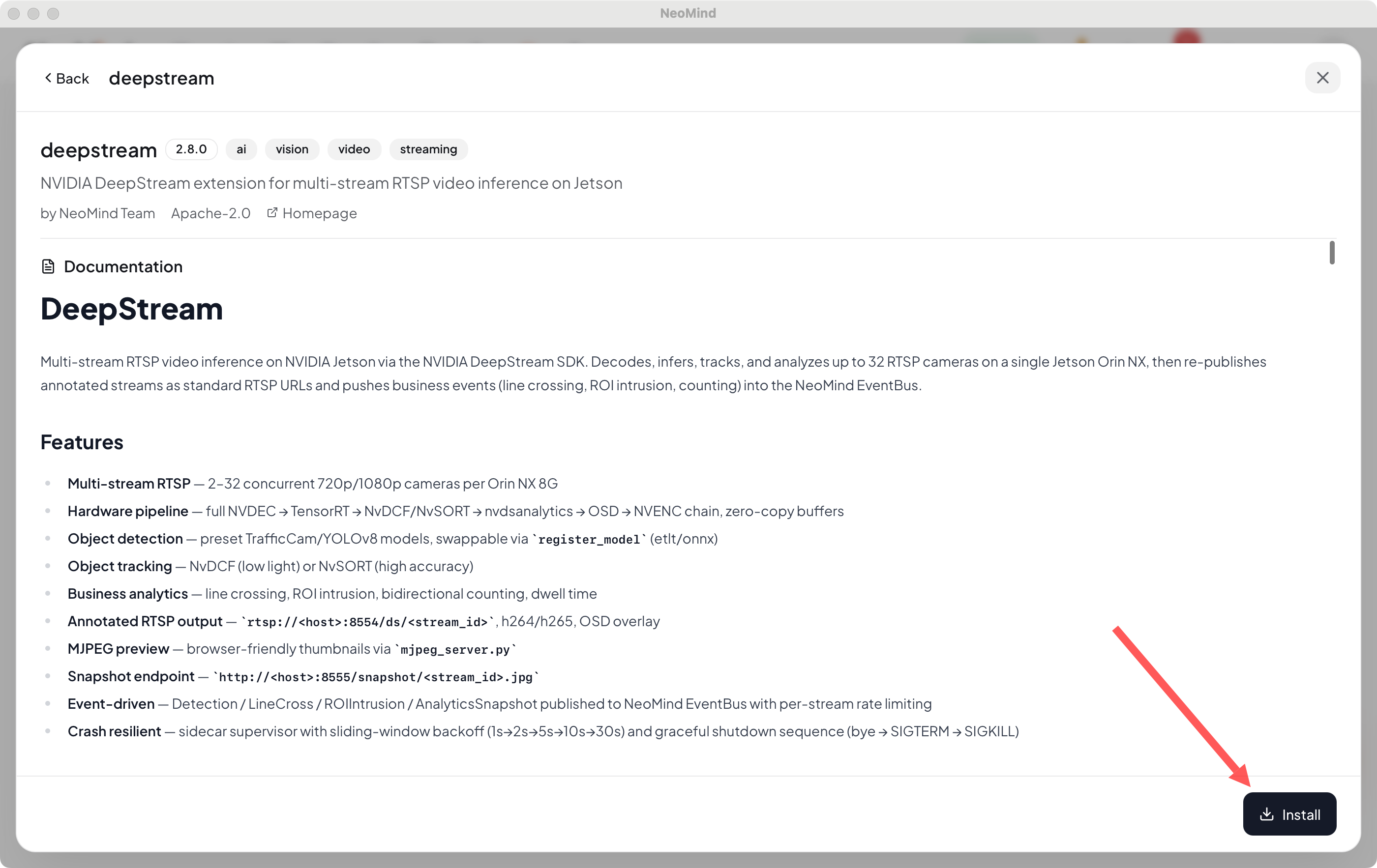

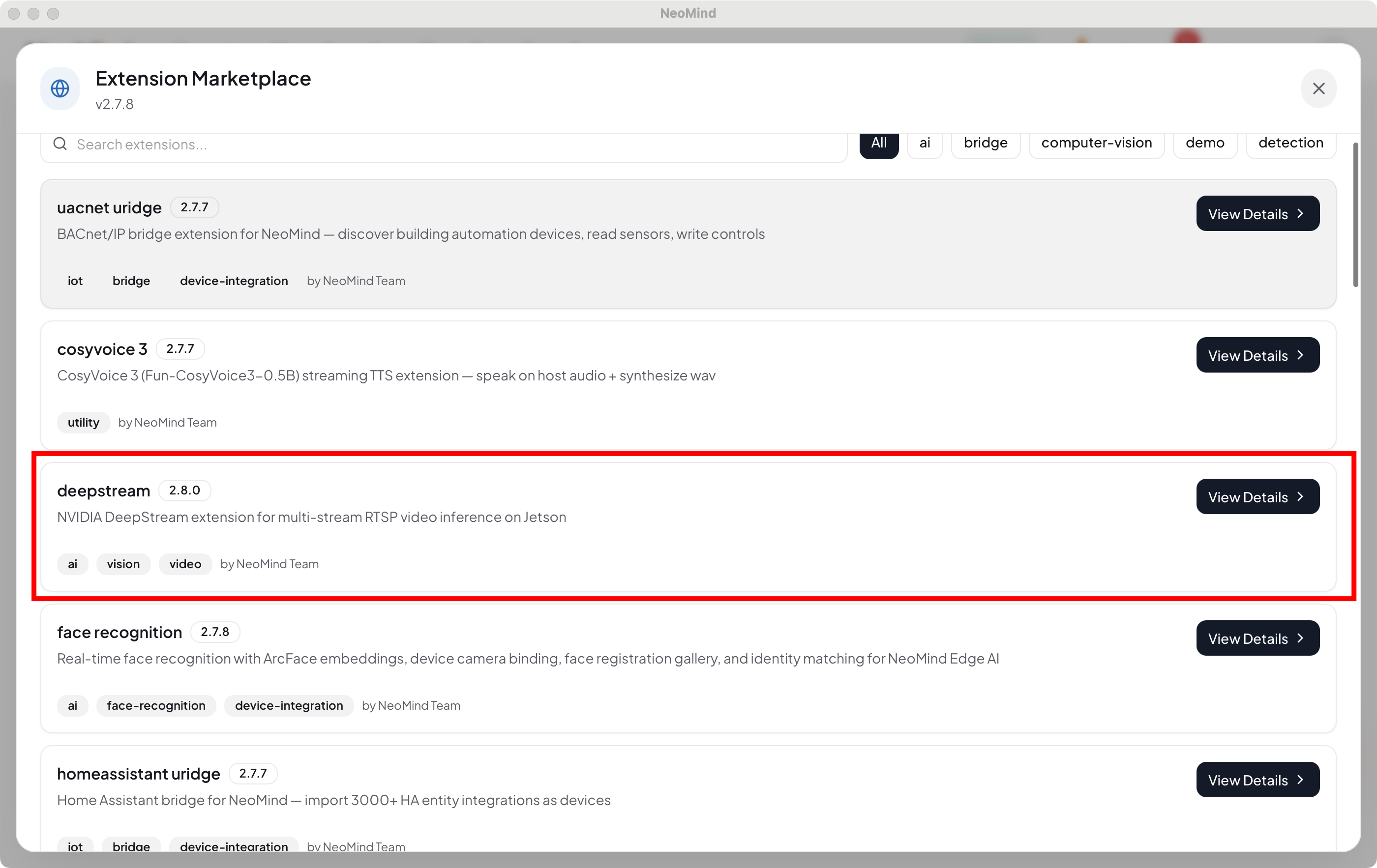

Install and configure (open the marketplace → install the extension → switch to remote mode):

---

6. Add a video stream

Add the deepstream extension's DeepStreamManagerCard to the Dashboard (the DeepStream panel); click Add Stream, providing per stream:

Field	Example	Description
stream_id	cam1	Stream identifier, used in output URLs and events
source.url	rtsp://admin:pass@10.0.0.10/Streaming/Channels/101	RTSP source (TCP transport recommended on Jetson)
model	Primary_Detector	Preset TrafficCam / YOLOv8; swap via register_model (etlt/onnx)
tracker	NvDCF / NvSORT	NvDCF for low light, NvSORT for high accuracy
analytics	line crossing / ROI polygons	Define analytics regions

On save, the sidecar builds the pipeline and begins inference and event emission.

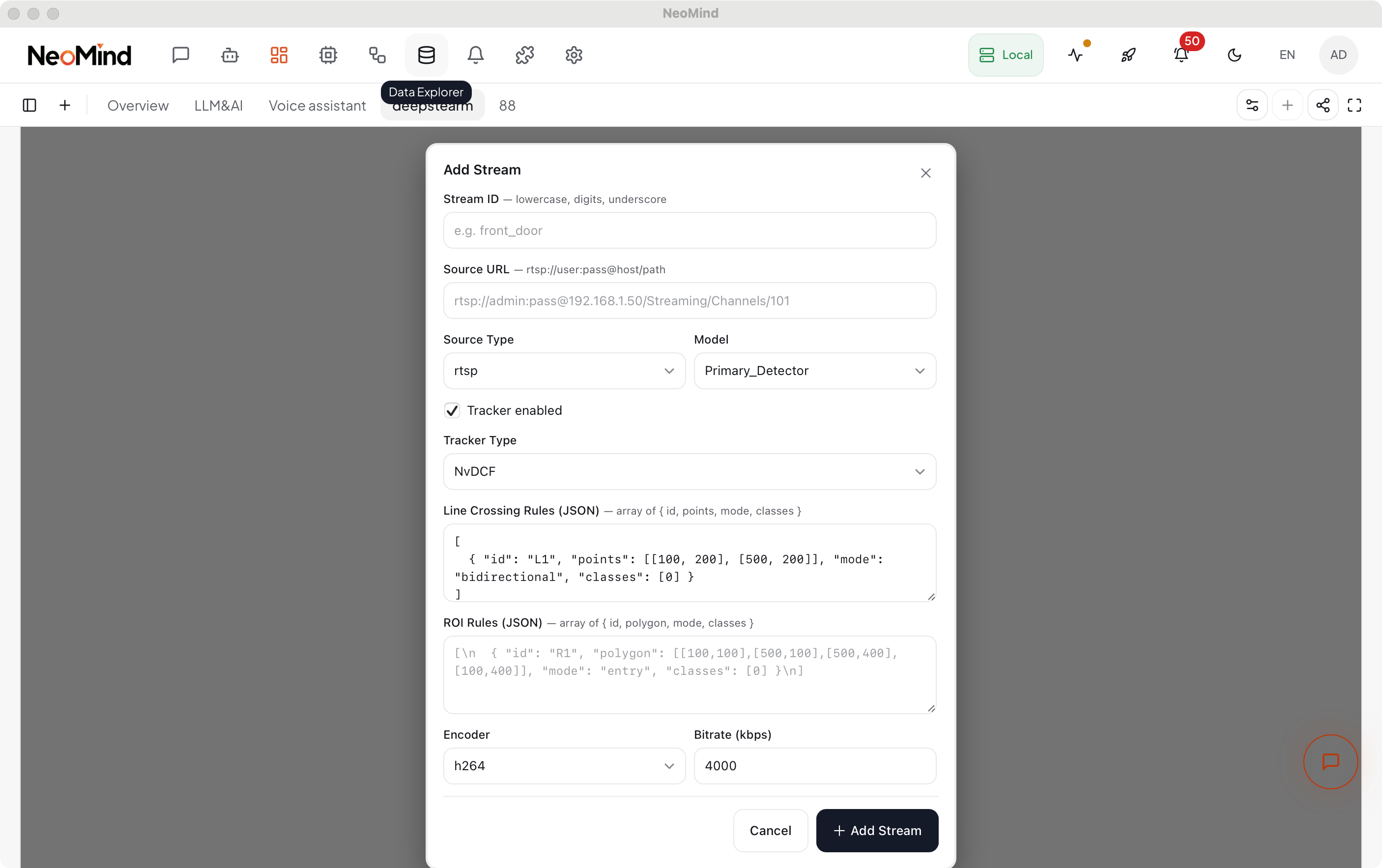

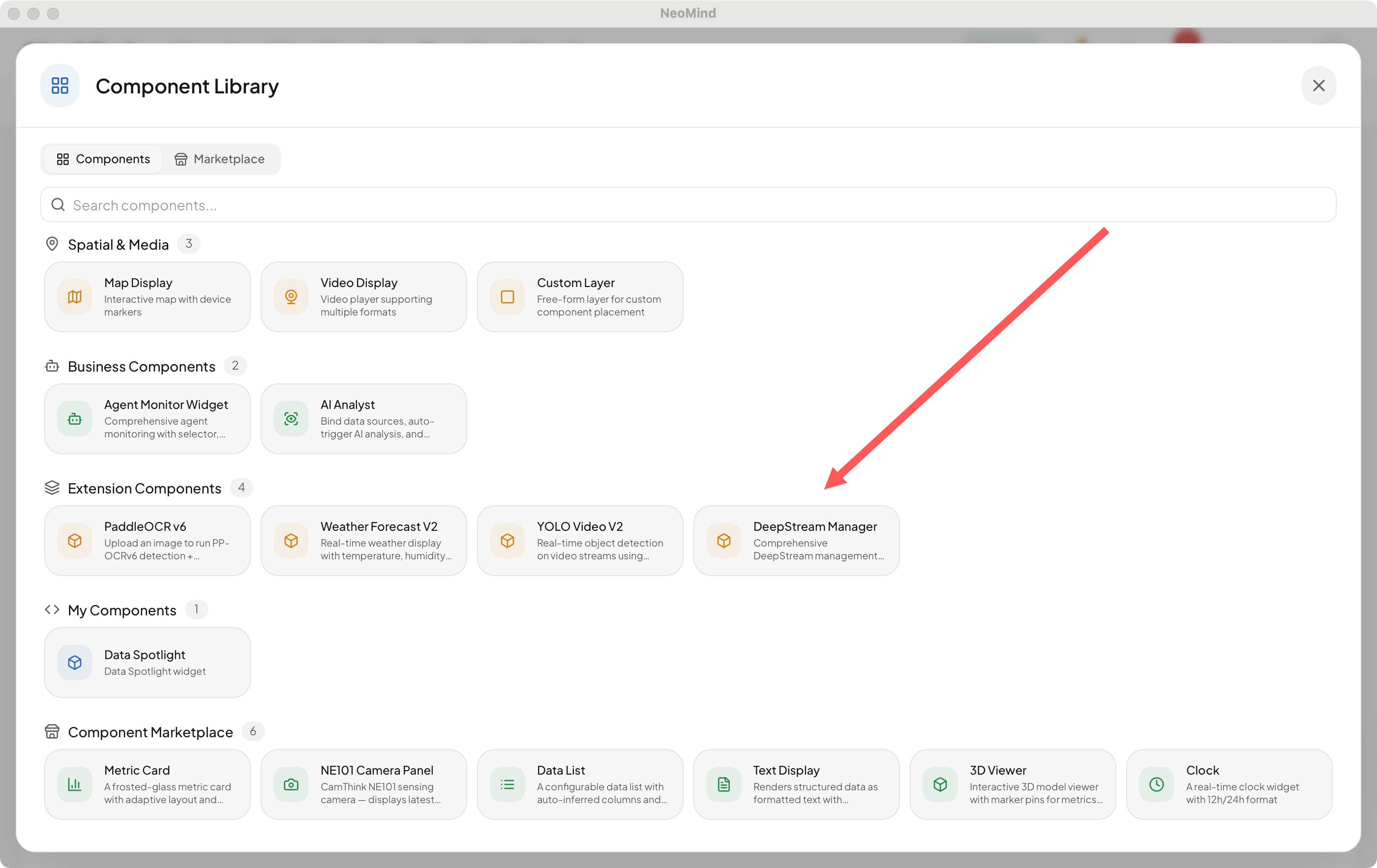

Add the DeepStream panel and a video stream:

---

7. View results

• Panel status bar: the top bar shows service status, GPU usage, FPS, and stream count; refresh or restart the service from here.
• MJPEG thumbnails: live multi-stream preview (with detection boxes) in the panel; click a thumbnail to open the detail drawer — HLS live video, per-class counts (object / meta / class), and an event log, with copy-RTSP and delete-stream actions.
• Annotated RTSP: rtsp://<server_host>:8554/ds/<stream_id> — play in any player or record.
• JPEG snapshot: http://<server_host>:8555/snapshot/<stream_id>.jpg.
• Business events: Detection / LineCross / ROIIntrusion / AnalyticsSnapshot enter NeoMind — show on the dashboard, trigger alerts / pushes via Automation Rules.

---

8. Typical Scenarios

• People / vehicle counting: multi-entrance cameras with real-time counts and time-of-day distribution.
• Line-crossing counting: draw a line at a gate / doorway for bidirectional (in/out) counting.
• Zone intrusion alerts: define a forbidden ROI; a target entering raises an event → automation push.
• Dwell analysis: track IDs across frames to measure how long targets stay in a region — useful for service-area / booth heat.

---

9. Appendix
