LocateAnything Visual Grounding

Open-vocabulary visual grounding via a VLM — a single phrase finds / counts any object in a frame, no pre-trained categories. A GPU server is required.

---

1. Solution Overview

locate-anything-v2 is an HTTP bridge extension: the extension is a lightweight client, while the LocateAnything-3B model runs in a separate Python inference service (NVIDIA GPU recommended). The extension handles result post-processing (NMS, area filtering).

"Open-vocabulary" is its core: unlike YOLO, which only recognizes its pre-trained 80 classes, you describe what to find in any natural language and the model locates it zero-shot.

Five commands:

Capability	Command	Key parameter	Description
Category detection	detect	categories (e.g. person,car)	Detect by category
Phrase grounding	ground	phrase (natural language)	Zero-shot locate by description; single/multi
Text localization	detect_text	—	Locate all text in the frame
GUI grounding	ground_gui	phrase, output_type (box/point)	Locate UI elements in a screenshot
Pointing	point	phrase	Point to a specific object

Data Flow:

---

2. Bill of Materials (BOM)

Item	Spec	Purpose	Required
NeoMind platform	v0.8.0+	Extension host	✅
locate-anything-v2 extension	v2.7.7+	HTTP bridge + post-processing	✅
GPU inference server	NVIDIA GPU	Run the LocateAnything Python service	✅
Local LLM	Ollama, etc.	AI Chat backend	Optional

---

3. Prerequisites: Deploy the Inference Service

The LocateAnything extension is just an HTTP client; the actual nvidia/LocateAnything-3B model (~6 GB) runs in a separate Python inference service. Built on FastAPI, it exposes these endpoints:

Endpoint	Method	Purpose
/health	GET	Health check; returns model and device status
/detect	POST	Detect by category
/ground	POST	Natural-language phrase grounding
/detect_text	POST	Localize all text in the frame
/ground_gui	POST	Localize a UI element
/point	POST	Point at an object

It defaults to http://127.0.0.1:9380; the service source lives in the extension's service/ directory (server.py, locateanything_worker.py, Dockerfile, docker-compose.yml, start.sh). Two options: Docker (recommended) or local run.

3.1 Option 1: Docker (recommended, GPU machine)

The image is based on pytorch/pytorch:2.6.0-cuda12.4-cudnn9-devel and ships with the CUDA runtime.

Prerequisite: an NVIDIA GPU with the NVIDIA Container Toolkit installed.

cd service/

# Build the image (first build is slower; installs deps)
docker build -t locate-anything-service .

# Optional: pre-download the model (~6 GB) at build time to skip the first-start wait
docker build --build-arg DOWNLOAD_MODEL=1 -t locate-anything-service .

# Run: map port, mount model cache volume, attach GPU
docker run -d --gpus all \
  -p 9380:9380 \
  -v locate-models:/models \
  locate-anything-service

Or use the included Compose file (equivalent, with auto-restart and a health check):

cd service/
docker compose up -d        # start
docker compose logs -f      # follow logs (first run downloads the model)

The model is ~6 GB, cached in the locate-models volume (at /models/huggingface inside the container); the first start downloads it, which is why the health check's start_period is 300 s.

3.2 Option 2: Run locally

Good for dev/debug, or for running on a Mac (MPS) / a GPU workstation.

Prerequisite: Python 3.10+; install the CUDA build of PyTorch on NVIDIA GPUs, or use MPS on Mac.

cd service/

# Install deps (Mac/CPU-compatible; includes torch>=2.5)
pip install -r requirements.txt

# Use the start script (auto-detects the env, sets MPS fallback)
./start.sh                          # default port 9380, downloads the model
./start.sh --port 9381              # custom port
./start.sh --model /path/to/model   # use a local model path

# Or run directly
python server.py --host 0.0.0.0 --port 9380

Common environment variables:

Variable	Default	Description
LOCATE_ANYTHING_MODEL	nvidia/LocateAnything-3B	HF model ID or local path
LOCATE_ANYTHING_PORT	9380	Listen port (read by start.sh)
PYTORCH_ENABLE_MPS_FALLBACK	1 (start.sh)	macOS MPS fallback toggle

The inference device is auto-selected as CUDA → MPS → CPU; CUDA is recommended for production.

3.3 Verify the service is ready

On startup the model loads first (~6 GB, plus a first-time download — wait a few minutes). Once ready, confirm with /health:

curl http://127.0.0.1:9380/health
# {"status":"ok","model":"nvidia/LocateAnything-3B","device":"cuda"}

status: ok means the model is loaded; model_not_loaded means it is still loading or failed (check the service logs).

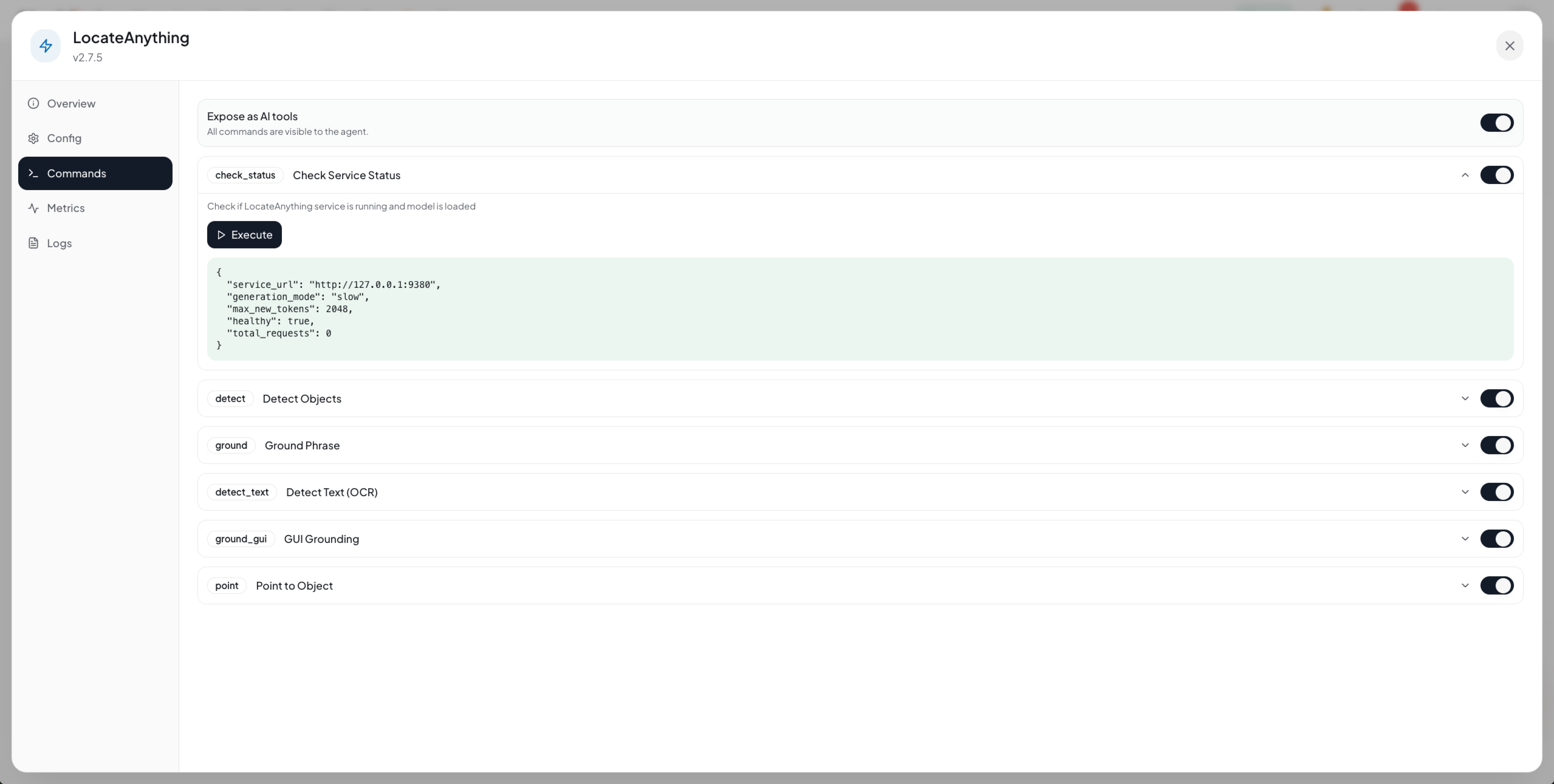

Back on the NeoMind extension detail page, run check_status to confirm the model is loaded.

---

4. Install and Configure the Extension

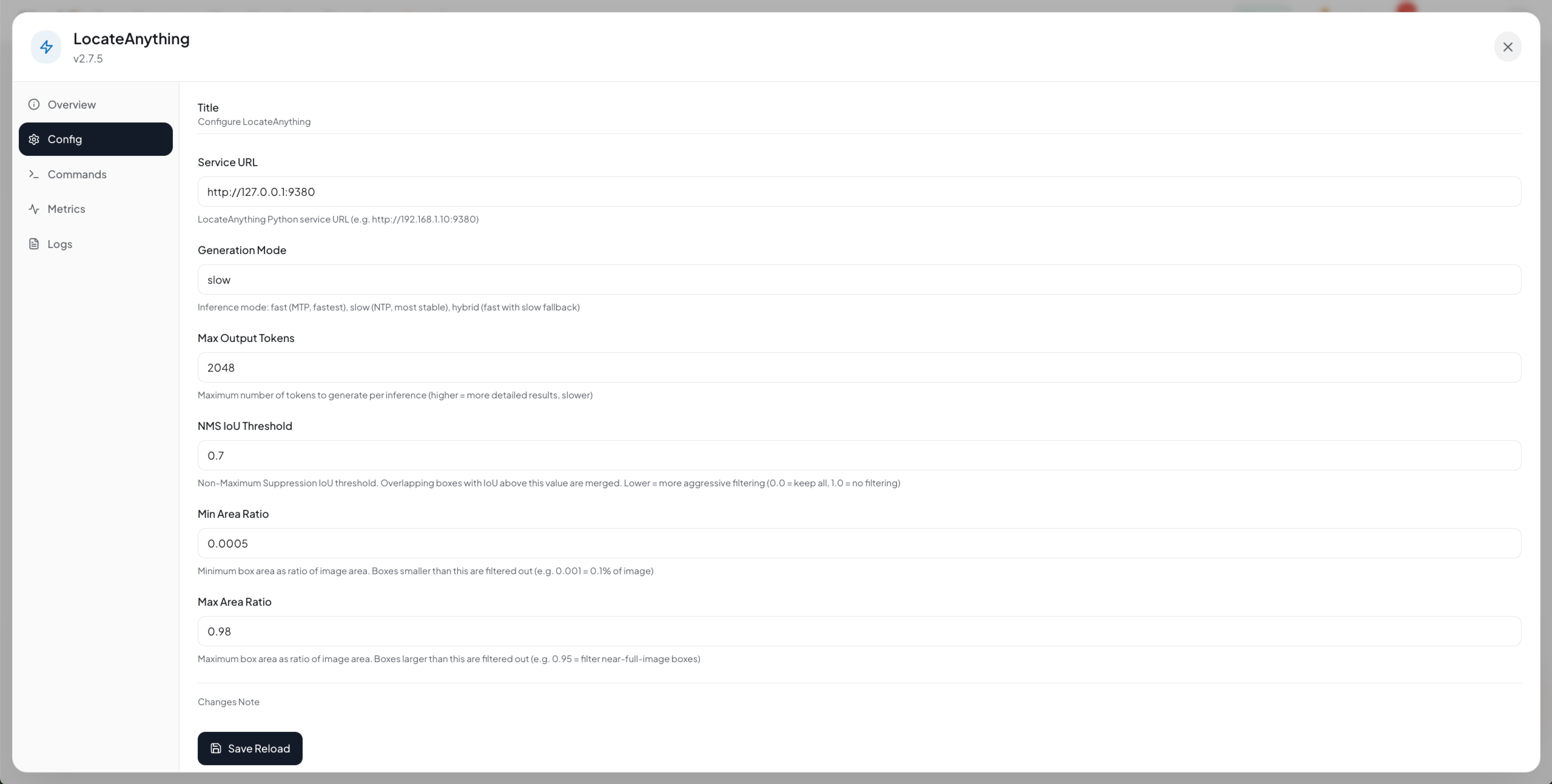

Go to the Extensions page, install locate-anything-v2 from the marketplace, and in Configuration point service_url at the inference service (e.g. http://<gpu-server-ip>:9380).

Parameter	Default	Description
service_url	http://127.0.0.1:9380	LocateAnything service URL
generation_mode	slow	fast (MTP, fastest) / slow (NTP, most stable) / hybrid (fast + fallback)
max_new_tokens	2048	Max tokens per inference (128–8192)
nms_iou_threshold	0.7	NMS IoU threshold (lower = more aggressive filtering)
min_area_ratio	0.0005	Min box area as fraction of image (filters tiny boxes)
max_area_ratio	0.98	Max box area as fraction of image (filters huge boxes)

NMS and area filtering apply to detect / ground / ground_gui; detect_text and point are returned as-is. All three can be overridden per command via args.

---

5. Usage

5.1 Test with the Dashboard card (LocateCard)

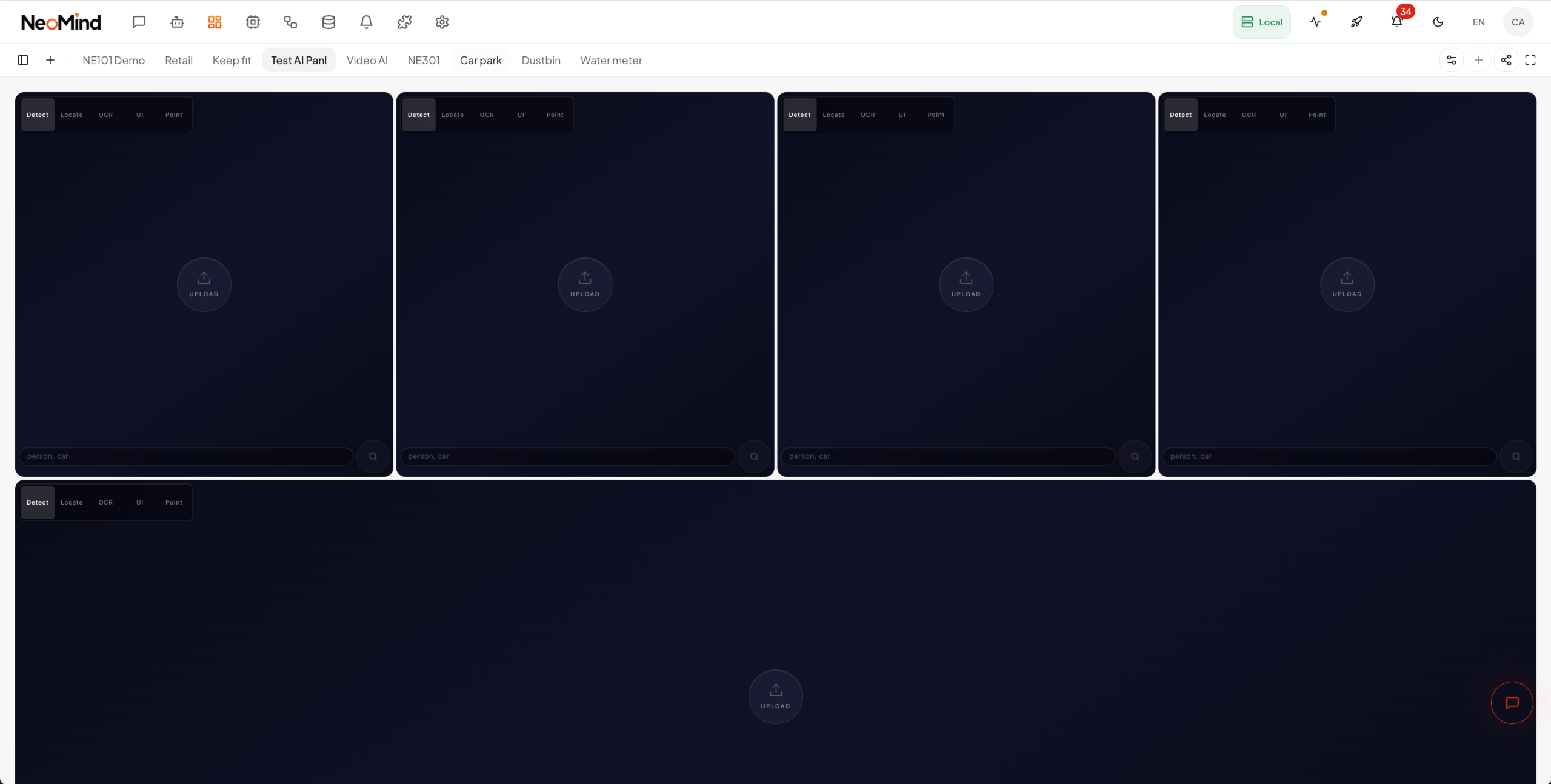

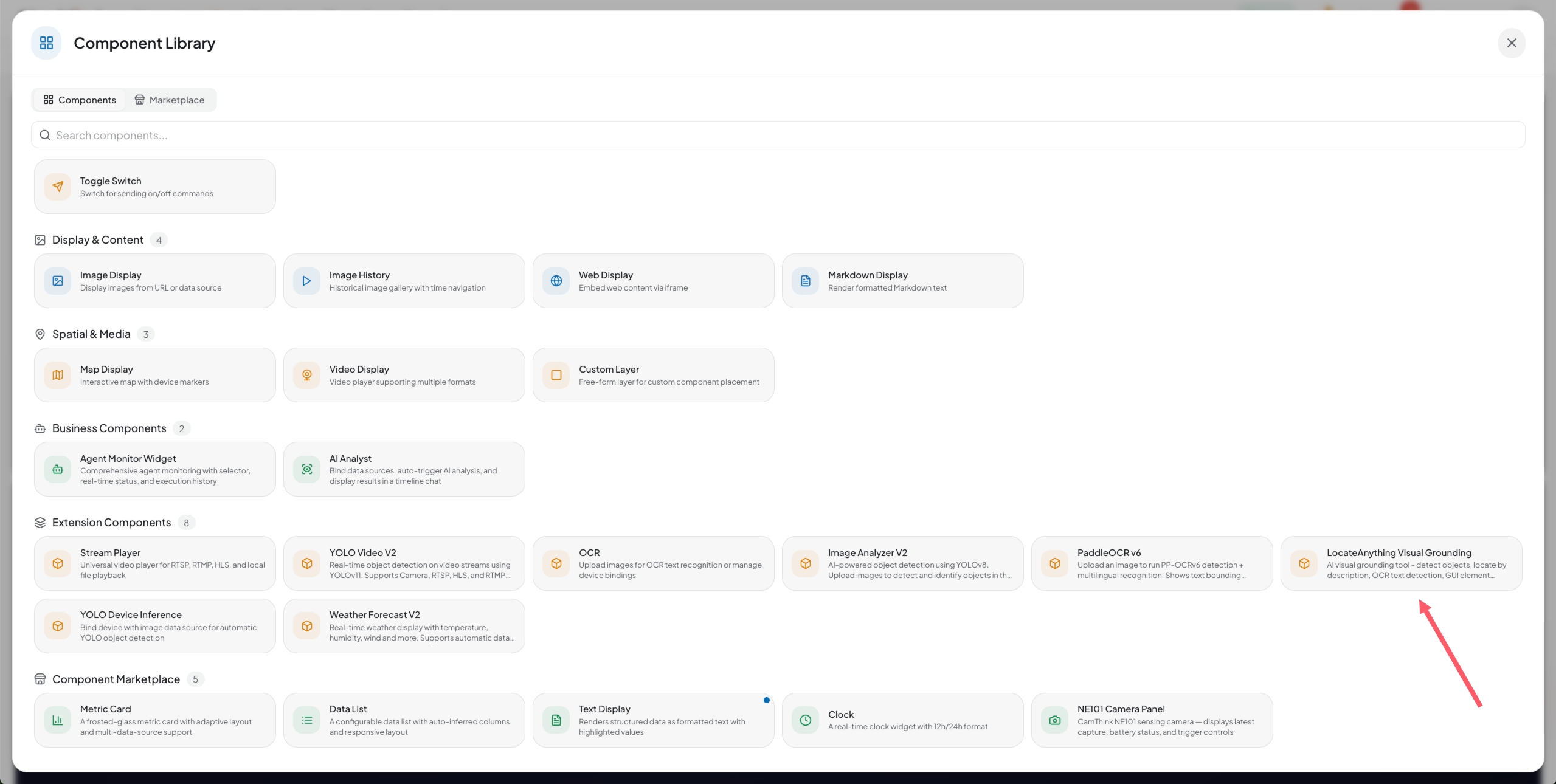

The extension ships a frontend component, LocateCard — add it to the Dashboard to test visually, with no need to fill in raw command args:

1. Upload an image (the component compresses it automatically).
2. Switch mode at the top: Detect / Locate / OCR / UI / Point (maps to detect / ground / detect_text / ground_gui / point).
3. Enter a query in the bottom input: categories for Detect (e.g. person,car), a natural-language phrase for Locate/UI/Point (e.g. people in red vests); OCR needs no input.

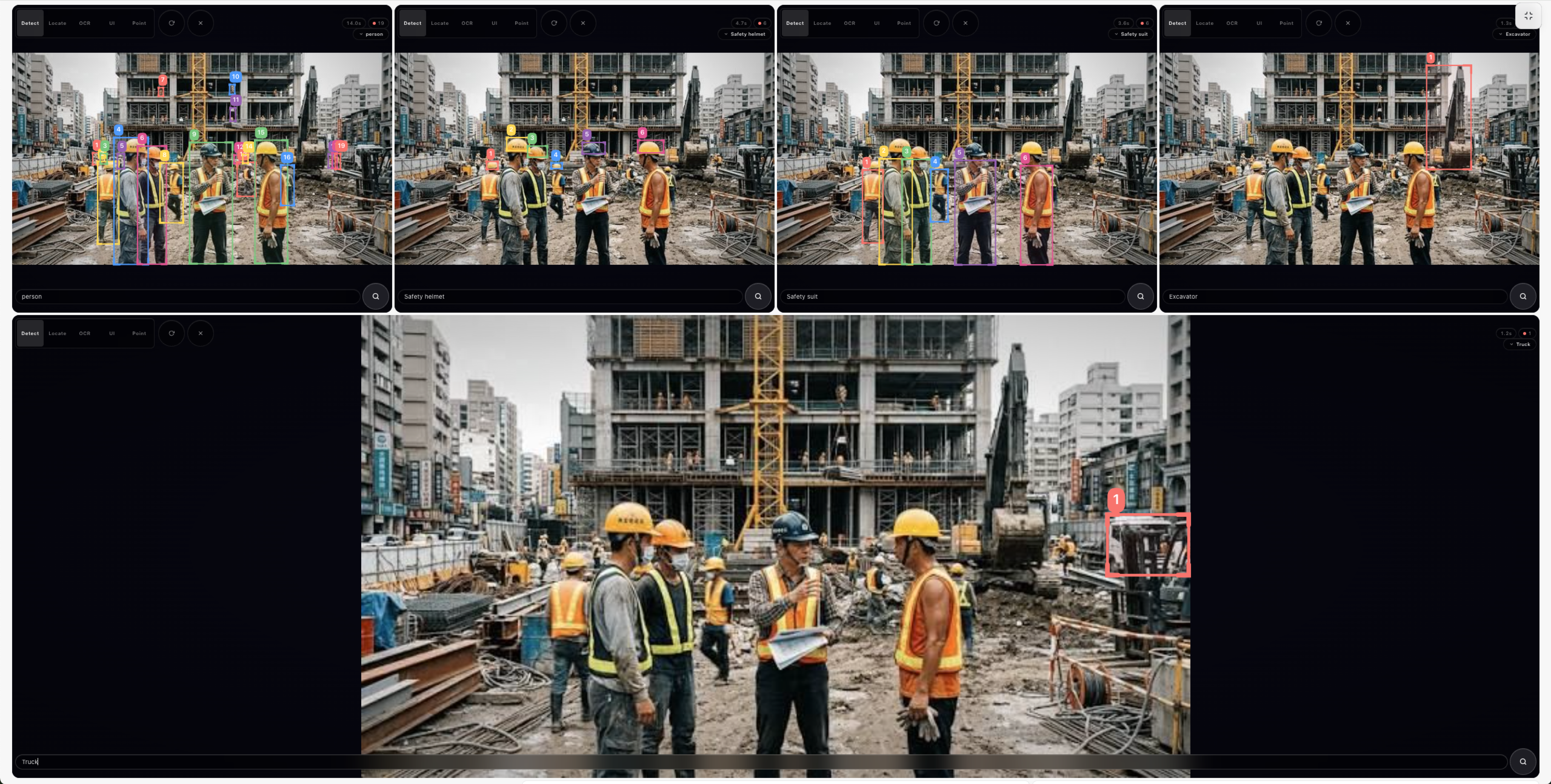

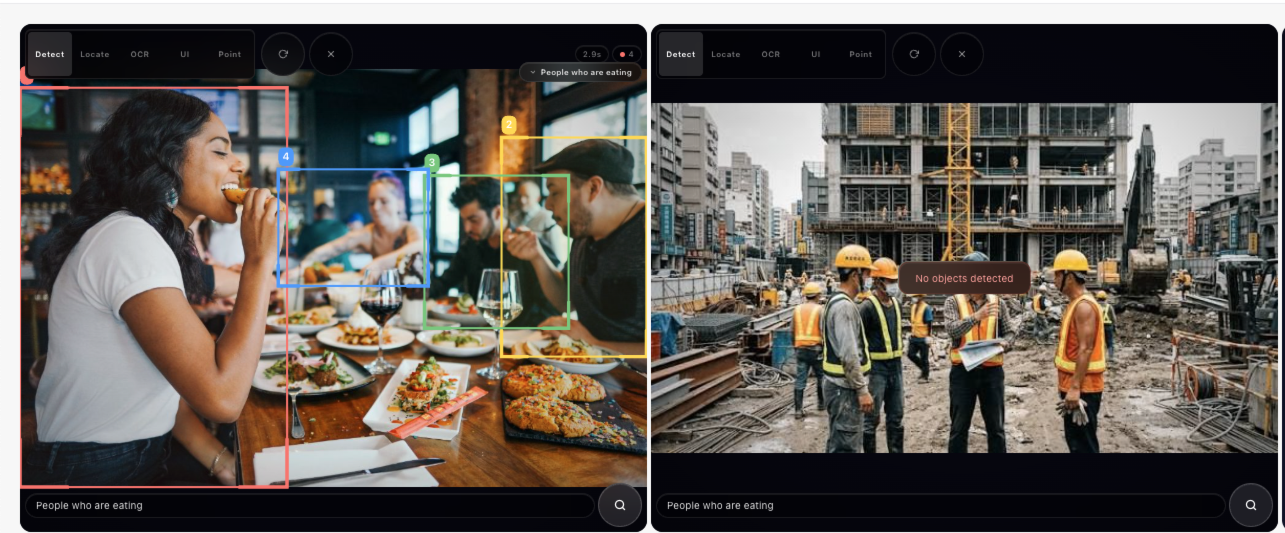

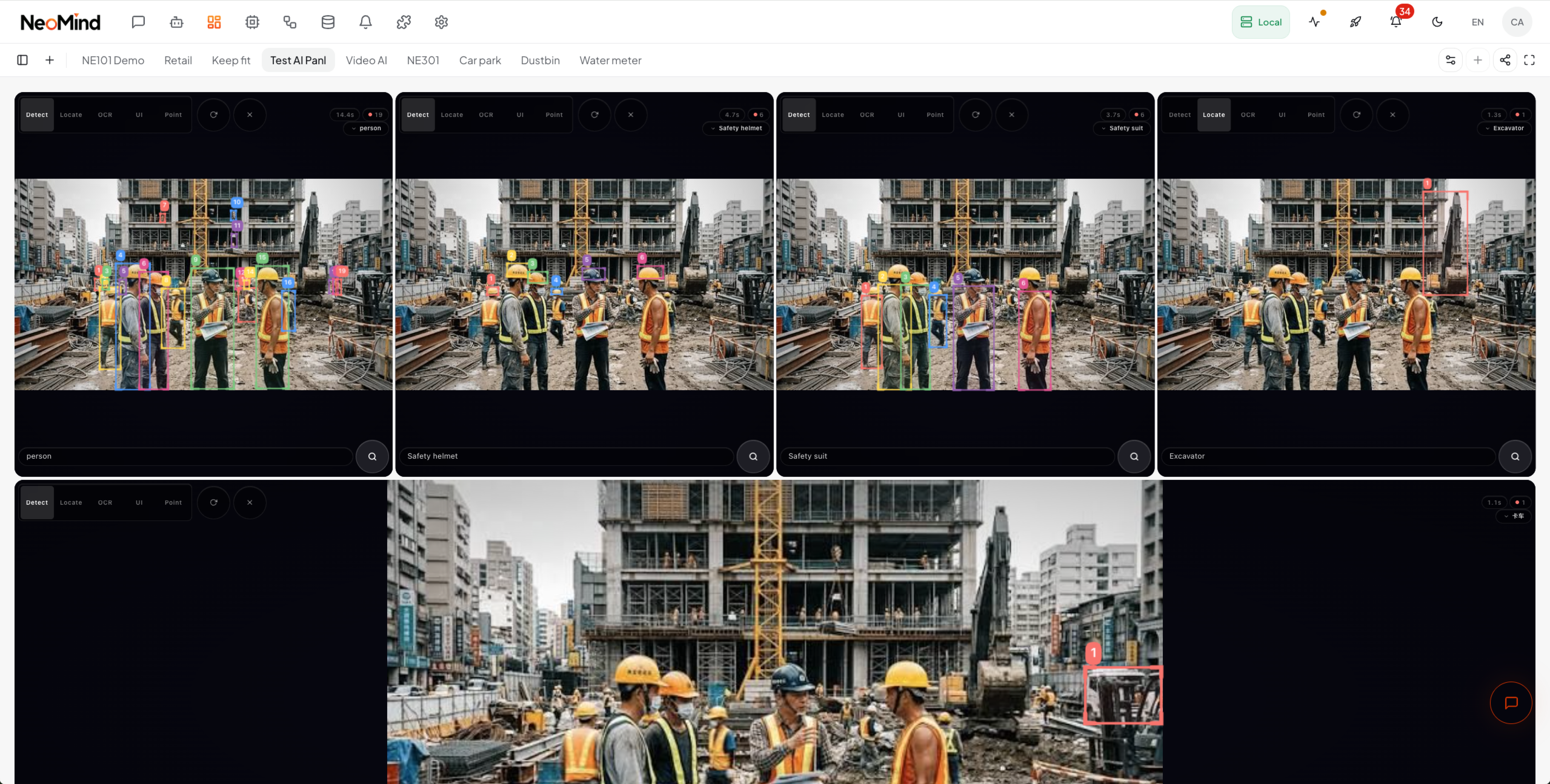

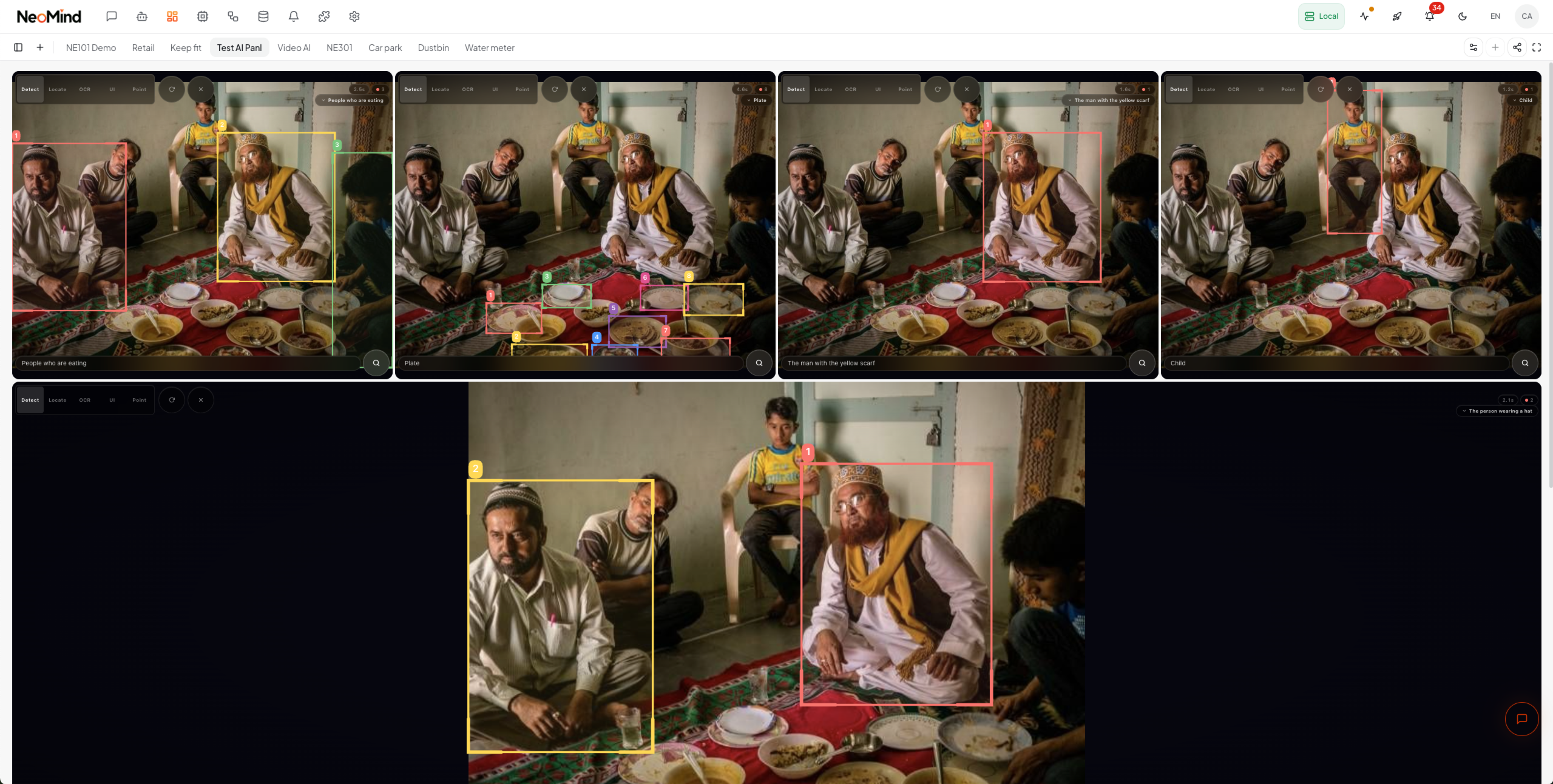

4. Click run (or press Enter) — boxes / points overlay directly on the image, with elapsed time and count shown.

Under the hood it calls the same extension commands; the card just wraps image upload, parameters, and result visualization.

5.2 Integrate with the NE101 camera component

In the NE101 camera component, set processingExtensionId to locate-anything-v2:

• Template object_detection → detect command (by processingCategories).
• Template grounding → ground command (locate via processingPhrase).

The latter is the killer feature: describe what to monitor in one sentence, and the camera locates it zero-shot, always-on.

5.3 Via AI Chat

Tell AI Chat "use locate-anything to count the people in red vests in this image" — the LLM calls the command and interprets the result.

---

6. Typical Scenarios

6.1 Natural-language find / zero-shot counting

Use ground + phrase to find / count anything, no training needed:

• phrase = people in red vests → count safety supervisors.
• phrase = red products on the shelf → out-of-stock / display checks.
• phrase = trash on the floor → environment inspection.

Returns all matching locations and a count; pair with Automation Rules to trigger alerts.

6.2 Defect / foreign-object localization

Describe the anomaly (e.g. scratch, leftover tool, foreign object); after the model locates it, combine with ROI or manual review. Suited to sporadic, occasional defect checks without training a model per defect type.

6.3 Text and GUI localization

• detect_text: locate all text in a frame (lighter than OCR — positions only).
• ground_gui / point: locate UI elements or point to objects in screenshots, useful for RPA, automated testing, and accessibility.

---

7. Selection: locate-anything vs yolo-device-inference

Dimension	yolo-device-inference	locate-anything-v2
Classes	Fixed (COCO 80 / custom model)	Open-vocabulary (natural language, zero-shot)
Latency	Milliseconds	Seconds (VLM)
Deployment	Local ONNX, edge-runnable	Requires a GPU inference service
Best for	Stable detection of known classes, high throughput	Ad-hoc needs, unknown classes, "find X in words"

Known classes and speed → yolo; "find things in words" or fluid classes → locate-anything. Both can be swapped in the NE101 camera component.

---

8. Appendix

Related docs

• NE101 Camera AI Vision
• Object Detection Use Case
• Extension Management
• AI Chat
• Automation Rules

---

Last updated: 2026-07-13
