NE101 Camera AI Vision

One component, many AI vision capabilities — this guide walks the pluggable pipeline end-to-end with OCR (meter reads, product labels); swap processingExtensionId for the others.

---

1. Solution Overview

The NeoMind NE101 camera component (ne101_camera) is more than a display widget — it ships with a built-in AI processing pipeline. The component itself does not run AI; instead, through the processingExtensionId contract it hands every captured frame to an extension of your choice for inference, then renders the results back onto the image as overlays and virtual metrics.

The pipeline is pluggable — swap in a different extension and the same component performs a different kind of AI vision task:

AI capability	Extension	Typical scenarios
OCR / text recognition	paddle-ocr-v6 / paddle-ocr-vl	Meter readings (water/electricity/gas), product and price labels, digital instruments, nameplates and serial numbers, documents and forms
Object detection	yolo-device-inference / image-analyzer-v2	People counting, vehicle detection, zone intrusion alerts
Open-vocabulary grounding	locate-anything-v2	Find or count arbitrary objects by natural language, defect localization, zero-shot counting

Beyond the structured pipeline, you can also use an AI Agent + vision LLM for open-ended scene understanding (description, reasoning, alerts) — see Section 7.

This guide uses OCR / text recognition (with paddle-ocr-v6) as a full walkthrough of the pipeline, from install to results; other capabilities follow the exact same configuration, only swapping processingExtensionId in step 5.3. The walkthrough uses water-meter reading and product labels as the OCR examples.

Data Flow:

Inference results are written to virtual metrics virtual.<extension>.*; the component overlays detection or text boxes on the image (optionally with ROI highlight) from them, and they are available to dashboards and AI Chat.

---

2. Bill of Materials (BOM)

Item	Model / Spec	Qty	Purpose	Required
Smart camera	NE101 or NE301	1+	Image capture	✅
NeoMind platform	v0.8.0+	1	Edge AI management	✅
paddle-ocr-v6 extension	v2.7.8+	1	Local OCR inference engine	✅
ne101_camera component	v2.14.10+	1	Camera panel + AI processing pipeline	✅ (from the component marketplace)
Local LLM	Ollama, etc.	1	AI Chat backend	Optional

---

3. Prerequisites

3.1 Install and configure NeoMind

Complete NeoMind installation, registration, and basic configuration — see NeoMind Quick Start.

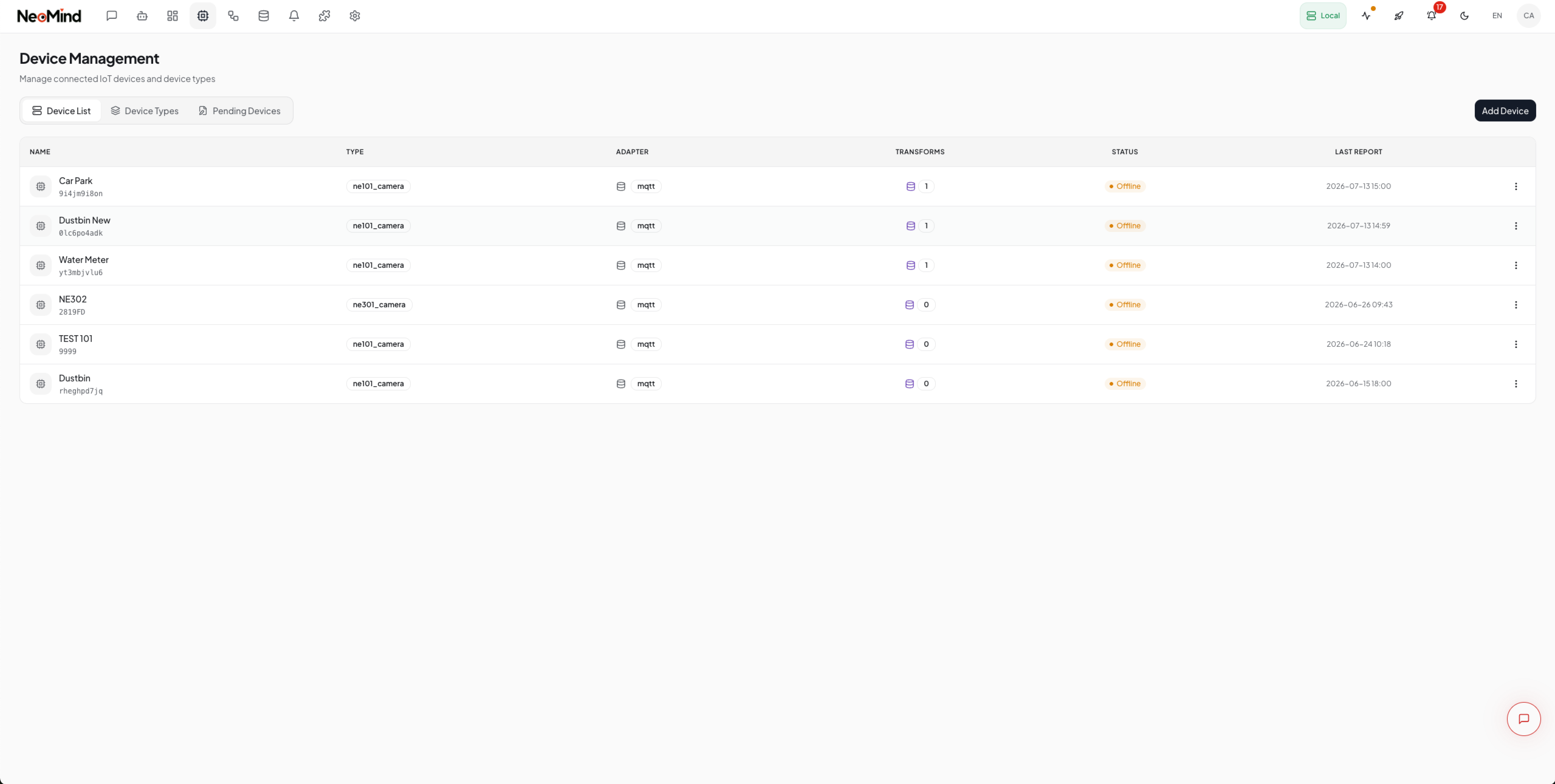

3.2 Onboard the device

Register the NE101 or NE301 with the NeoMind platform (device type ne101_camera) — see NeoMind Quick Start - Device Management.

---

4. Install the Extension and Component

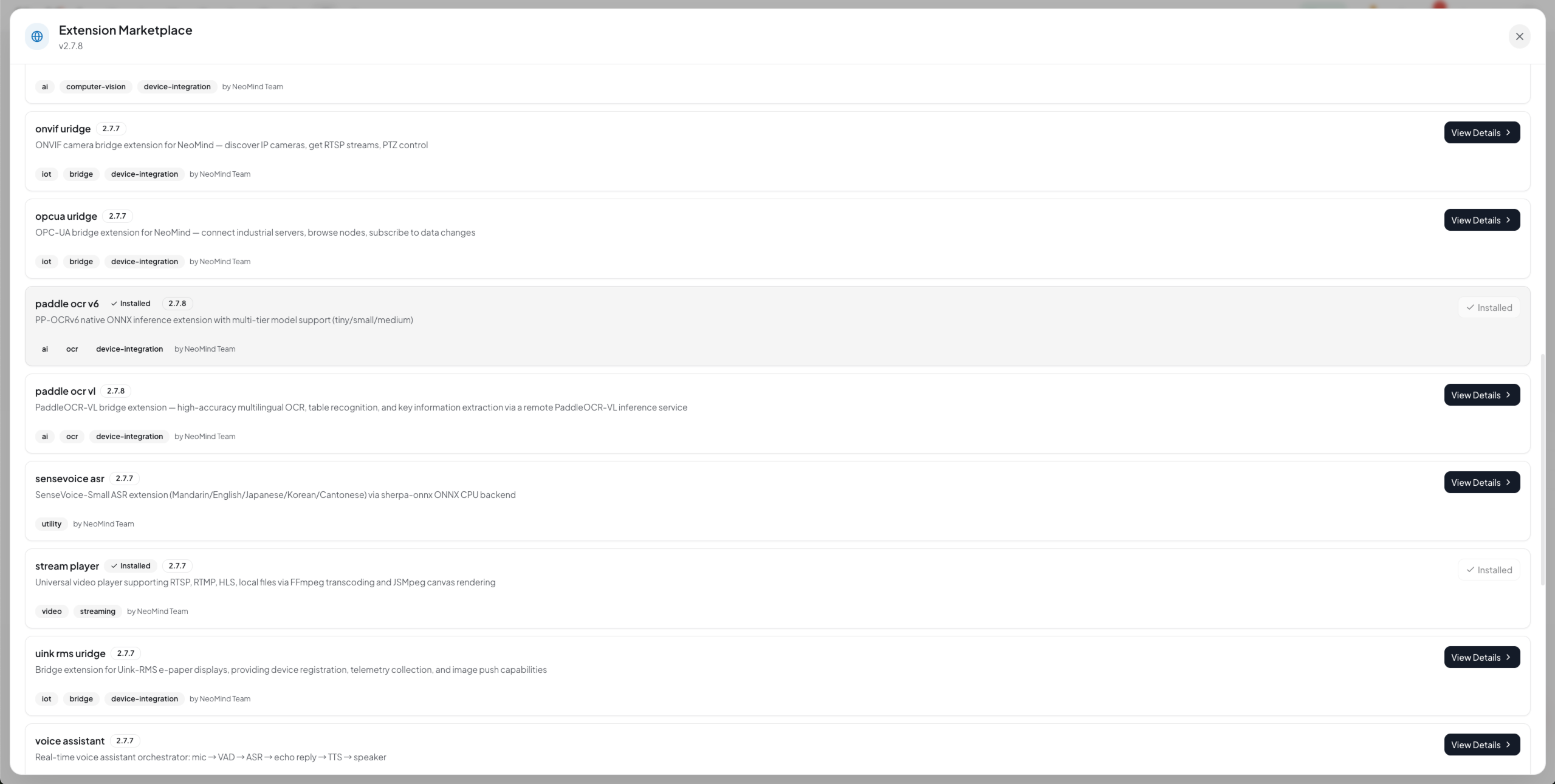

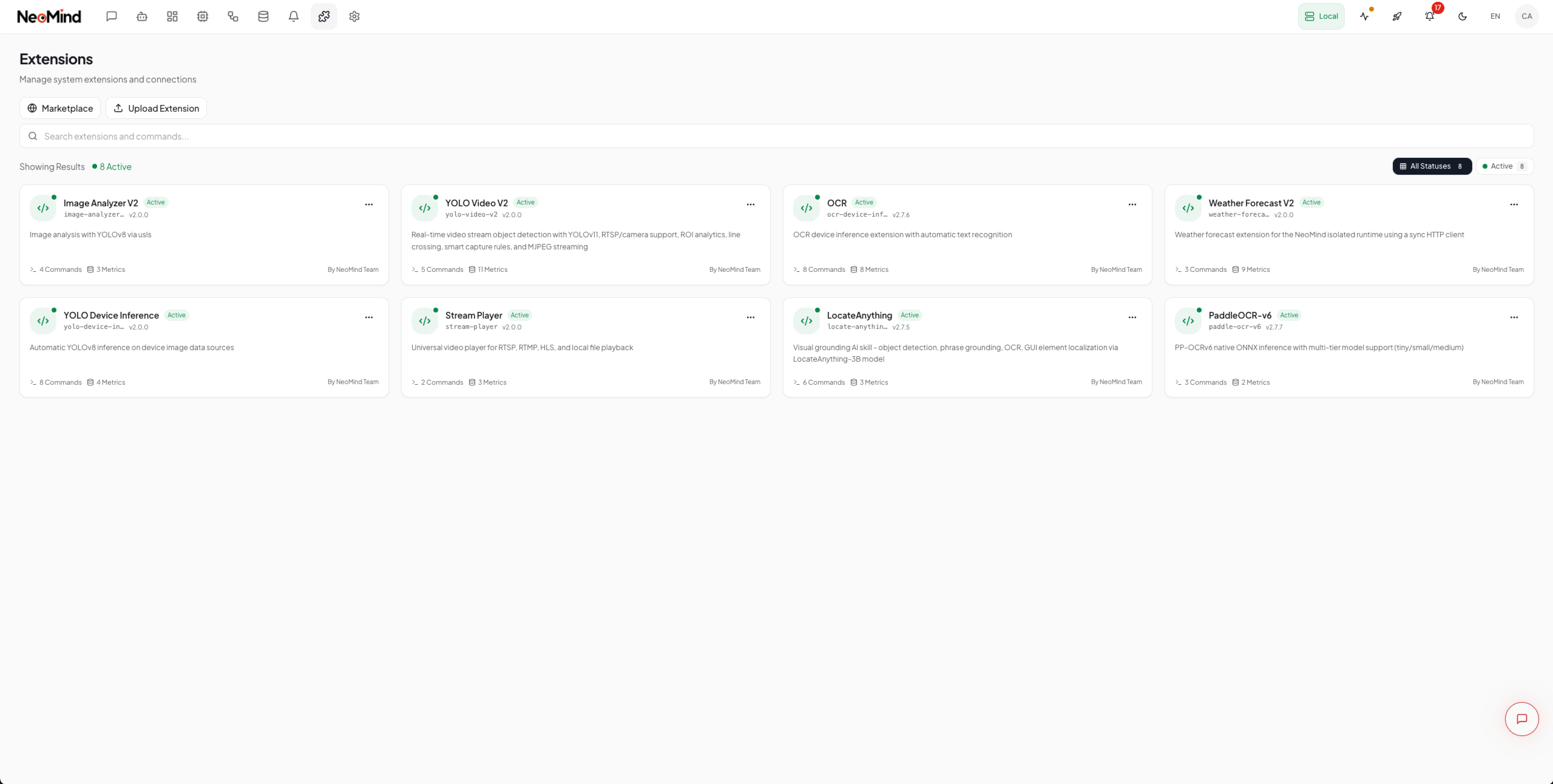

4.1 Install the paddle-ocr-v6 extension

Go to the Extensions page, open the marketplace, search for paddle-ocr-v6, and download/install it; after installation, confirm the status is Running.

paddle-ocr-v6 offers four inference tiers, switchable in the extension config or the component panel:

Tier	Size	Use case
tiny	~6MB (bundled)	Lightweight CPU, offline (no Japanese)
small	~18MB (lazy download)	CoreML or CUDA available, higher accuracy
medium	~132MB (lazy download)	CUDA with ≥16GB RAM, highest accuracy
auto	—	Default; auto-selects by host capability

4.2 Confirm the ne101_camera component is available

ne101_camera is an official component in the dashboard component marketplace. If it does not appear in the component library, install it from the marketplace (see Extension Management).

---

5. Dashboard Configuration: Camera + OCR Pipeline

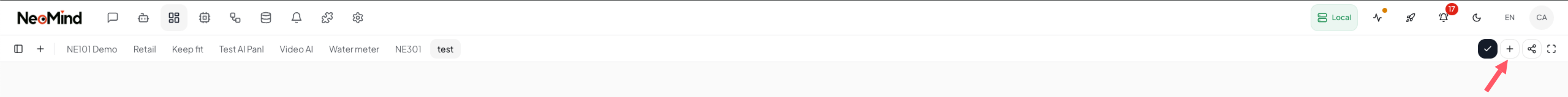

5.1 Add the NE101 camera component

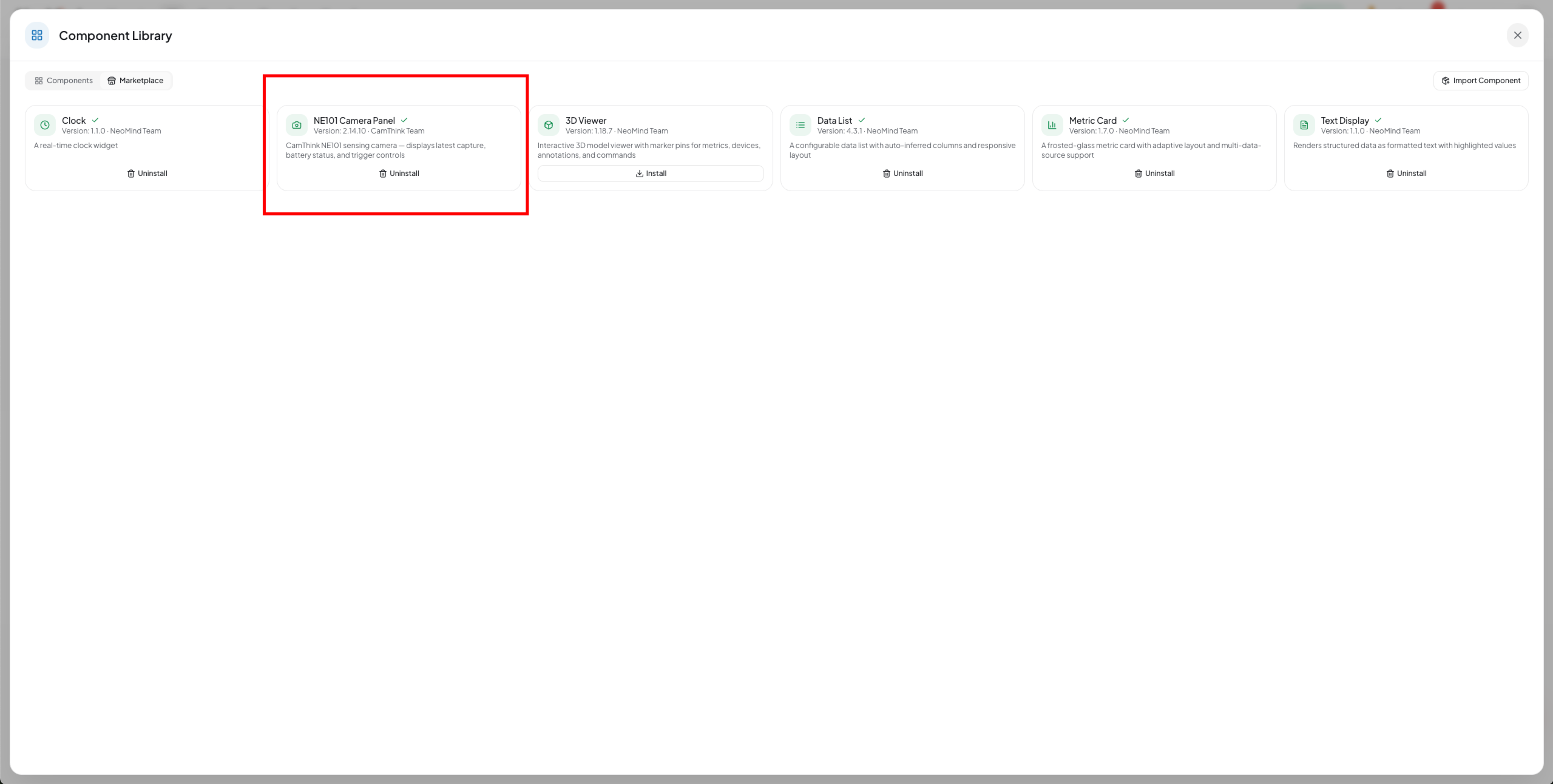

Go to Dashboard, create a dashboard, click Add Panel, and select the NE101 Camera Panel component. The first time you use it, you need to download the component package.

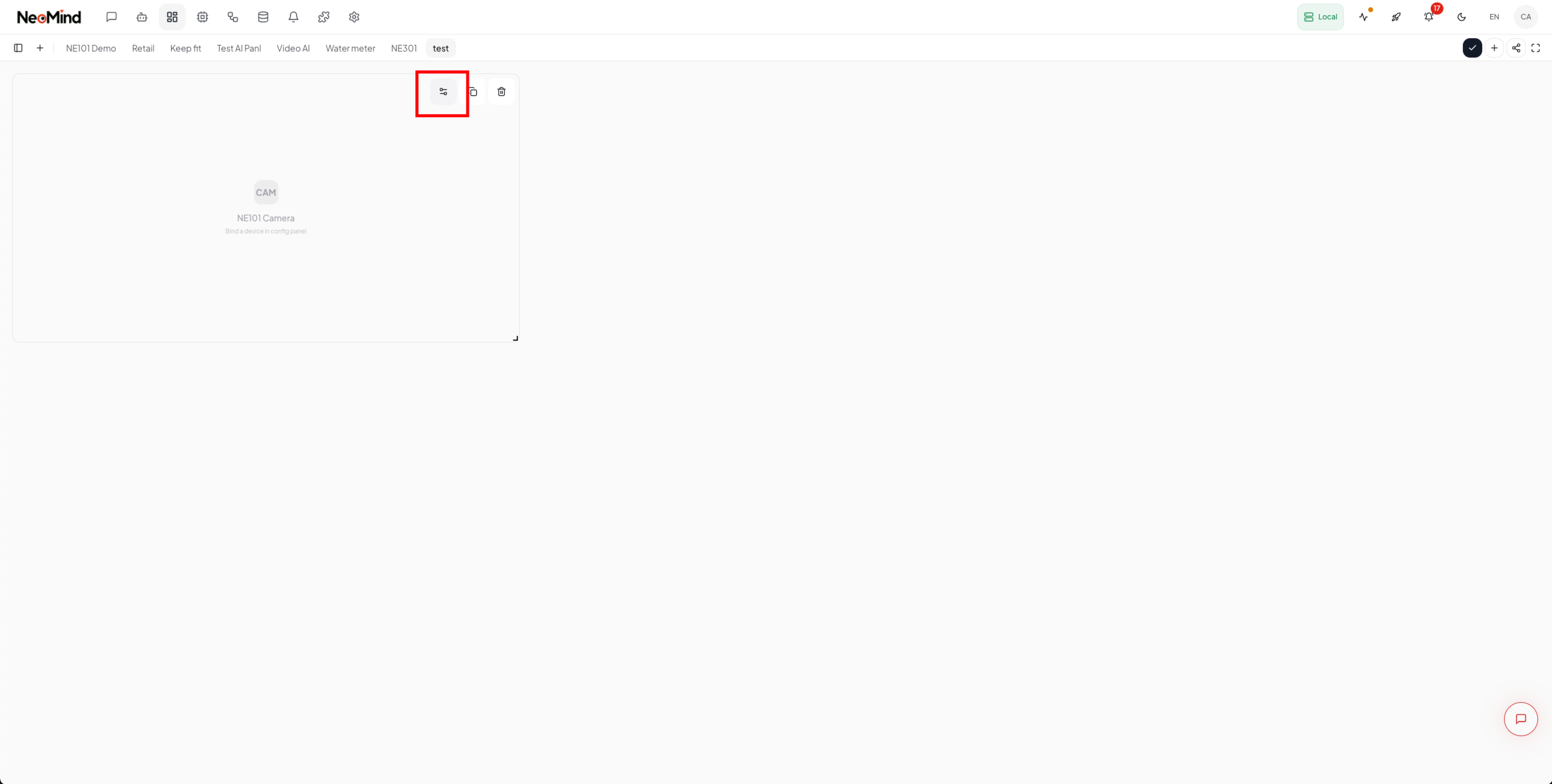

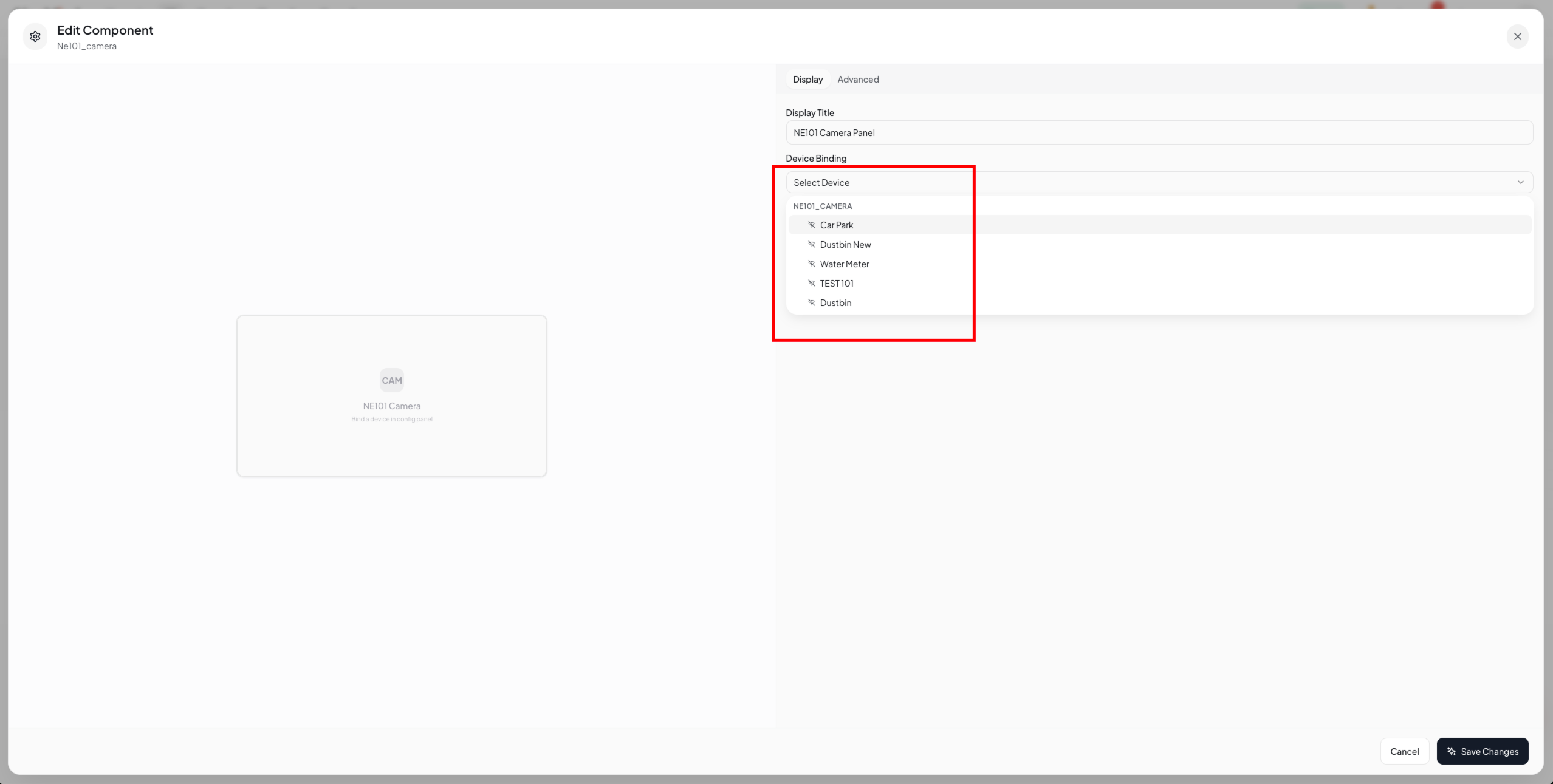

5.2 Configure the component and bind a device

After adding the component, bind an onboarded NE101 or NE301 device in the config panel; once bound, the panel shows the live feed, online status, and battery level.

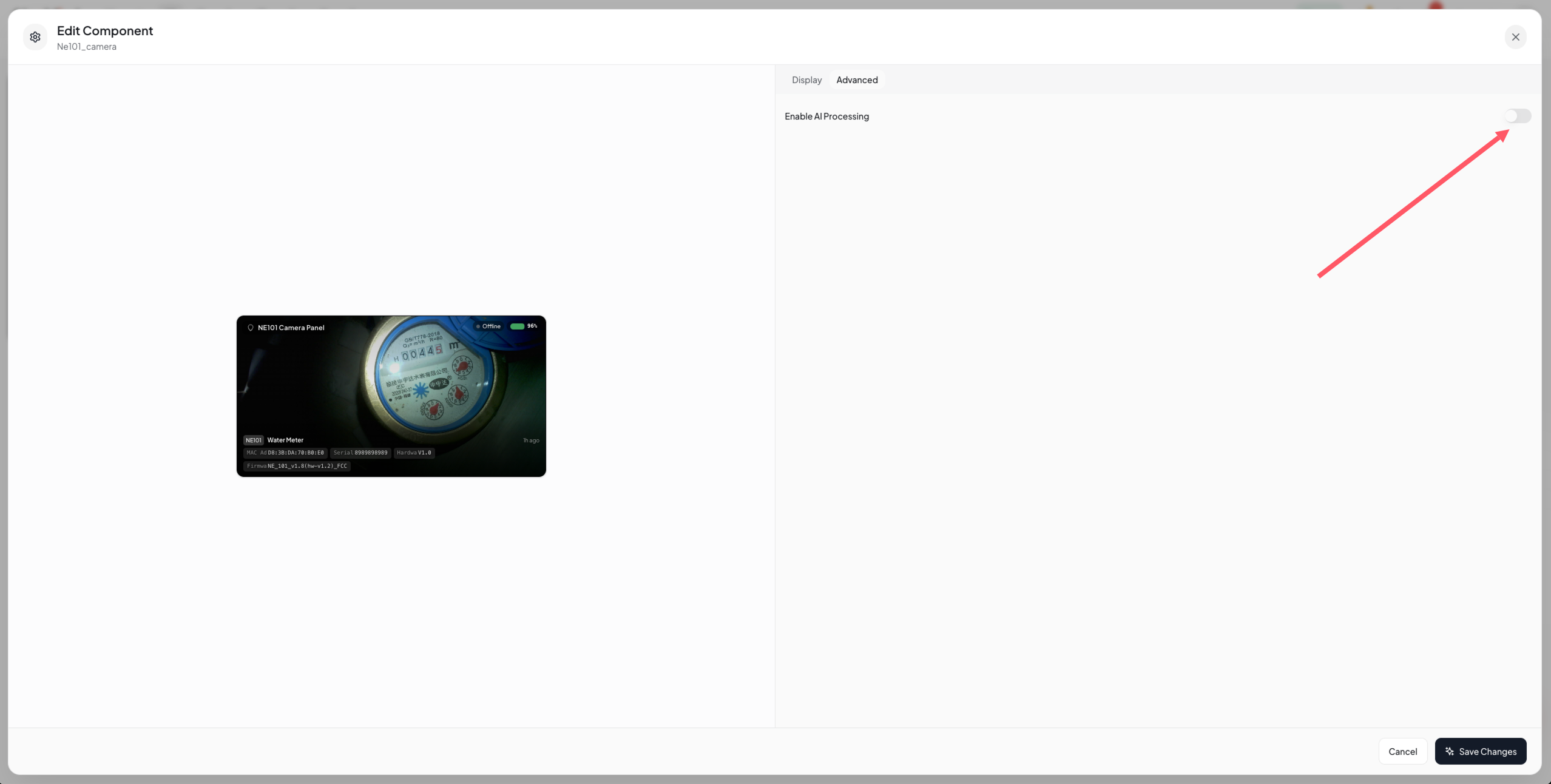

5.3 Enable AI inference and select the extension

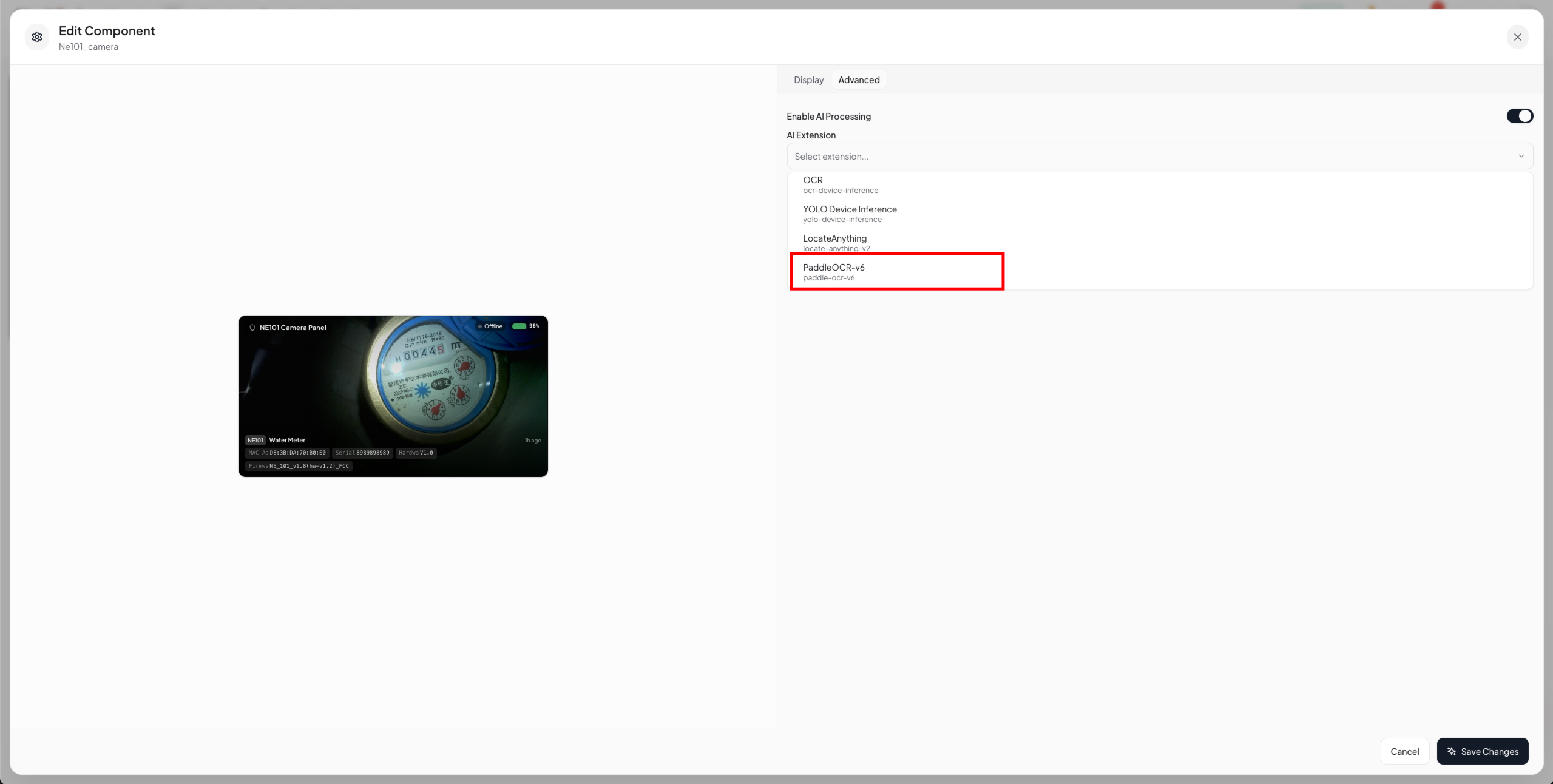

In the Advanced section of the component config, turn on AI Inference, and select paddle-ocr-v6 from the extension dropdown (the extension must be installed first to appear in the list). The template is then auto-set to text_detection, which calls the extension's recognize command. This walkthrough uses OCR; for object detection, grounding, and other capabilities, see the extensions, templates, and parameters in Section 6.

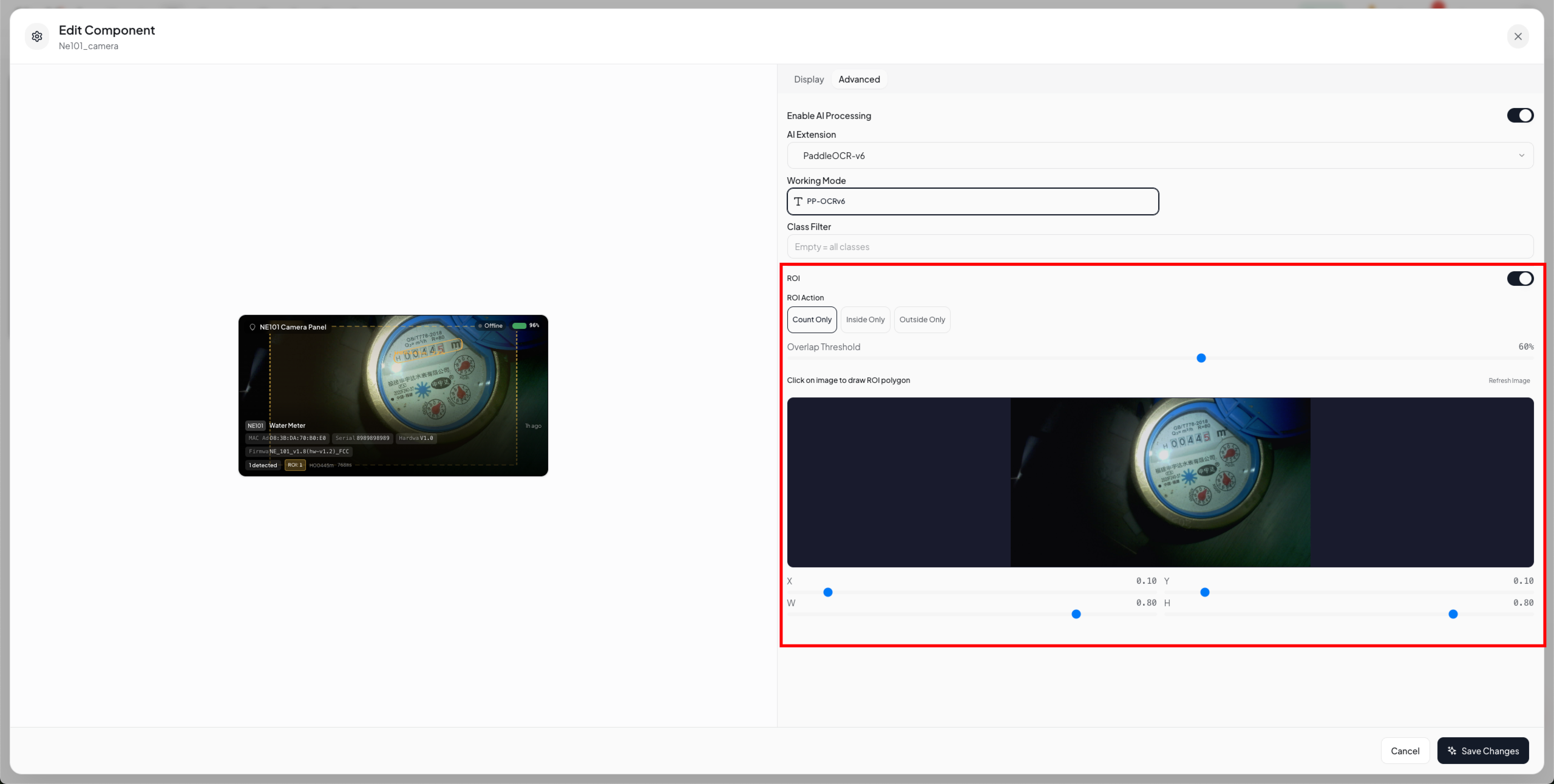

5.4 Set a Region of Interest (optional)

Often only part of the frame is the content to read, such as a meter's digit wheels or the text area of a label. Enabling ROI highlights regions of interest on the image and lets you choose a counting strategy via processingRoiAction — count, filter (inside only), or filter_outside (outside only) — and tune the detection-box-vs-ROI overlap threshold via processingRoiOverlap (default 0.6). ROIs support polygons, so you can draw one or more regions of interest directly on the image in the config panel.

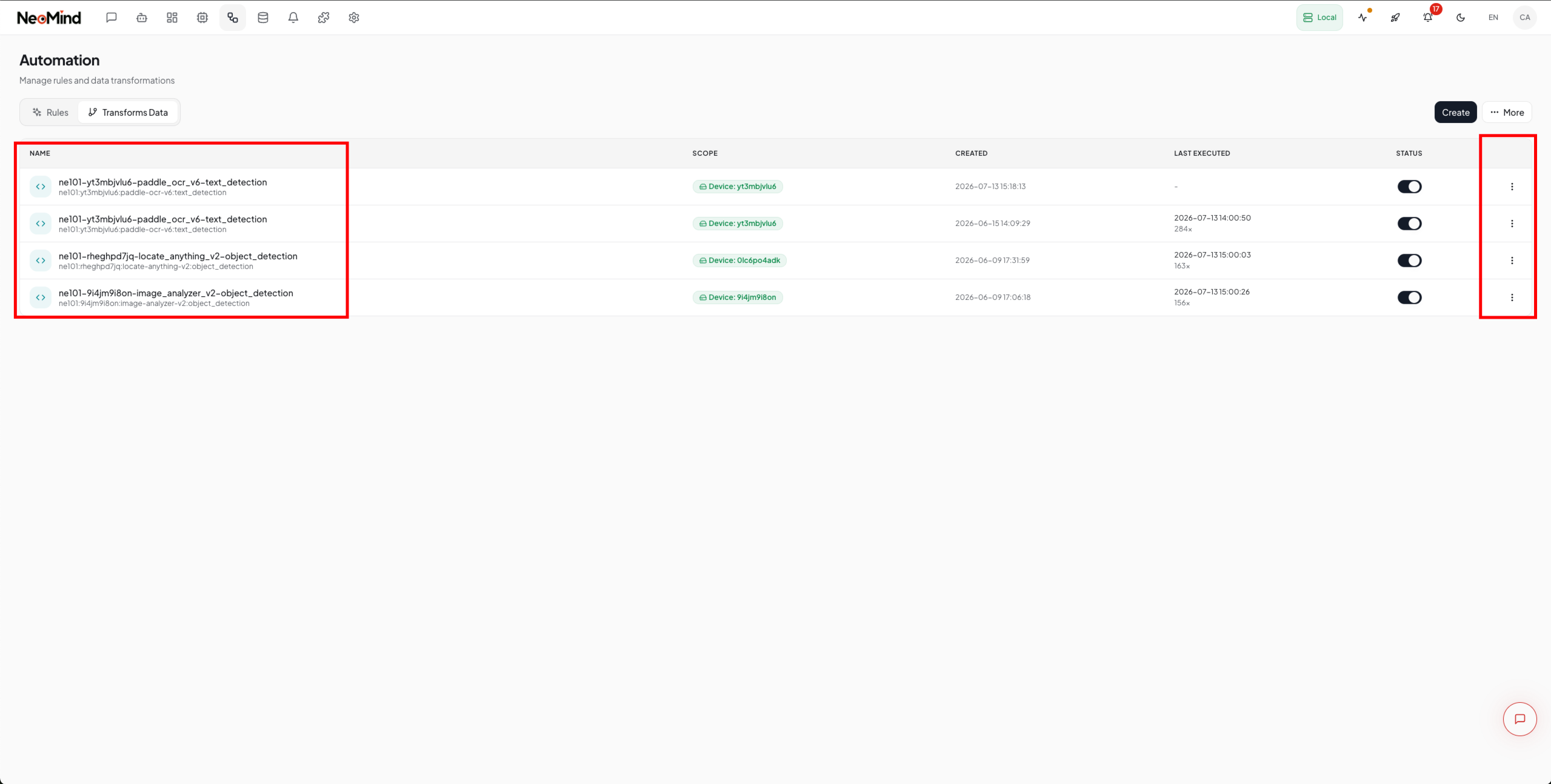

5.5 Auto-generated data transform task

Once AI inference is enabled, NeoMind automatically creates a data capture / transform task (the Transform automation, named like ne101-{deviceId}-paddle_ocr_v6-text_detection): whenever the device uploads a new frame, it injects the image into paddle-ocr-v6's recognize, and the returned text_blocks are written to virtual metrics.

virtual.paddle_ocr_v6.texts             // ["00238", "m³"]   recognized text
virtual.paddle_ocr_v6.detections        // [{bbox, polygon, label, confidence}, ...]
virtual.paddle_ocr_v6.inference_time_ms // per-frame inference time (ms)

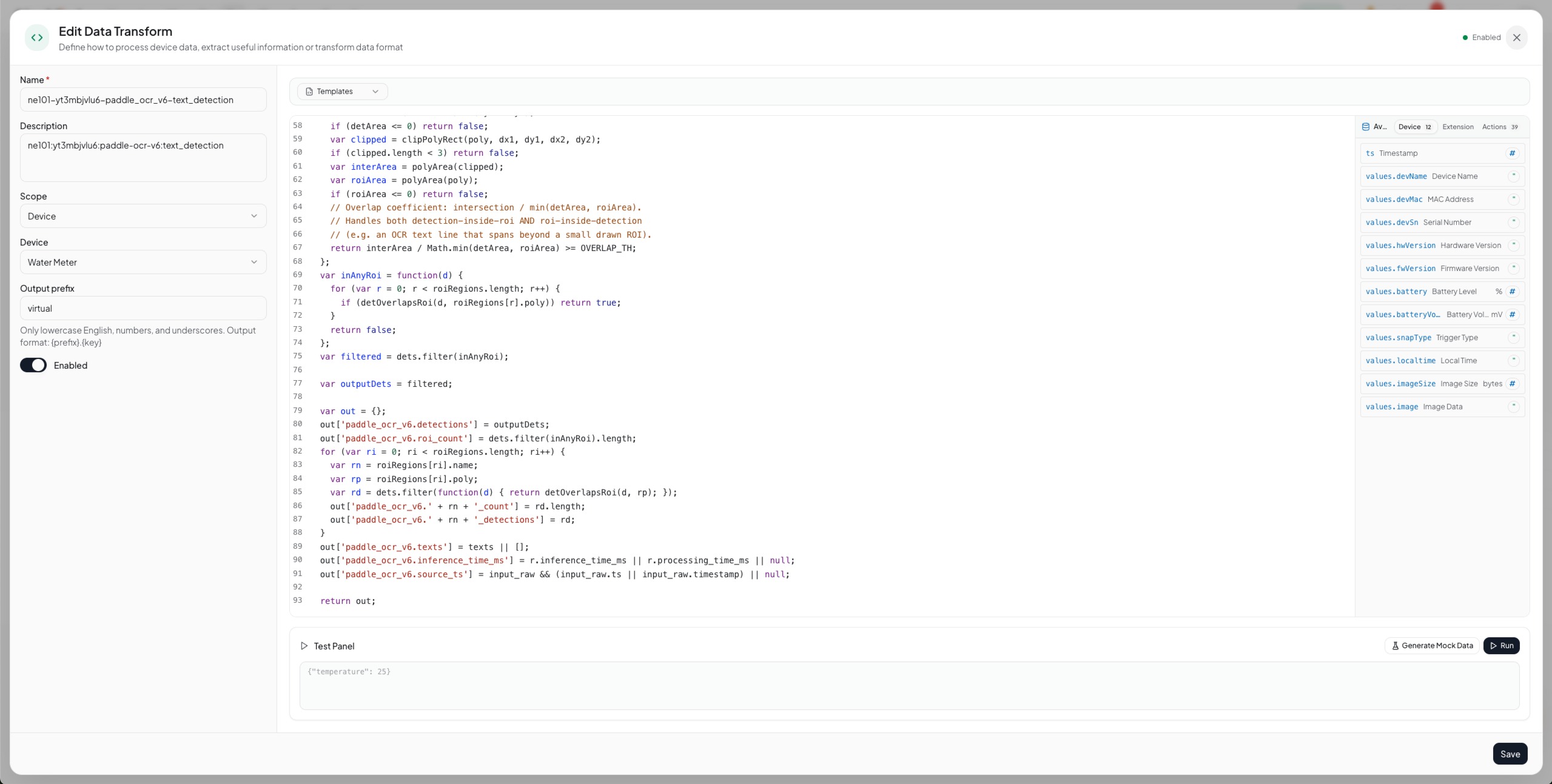

The task's transform rules are editable, so you can define richer post-processing logic — for example, parsing a reading string into a number, or filtering out noisy text.

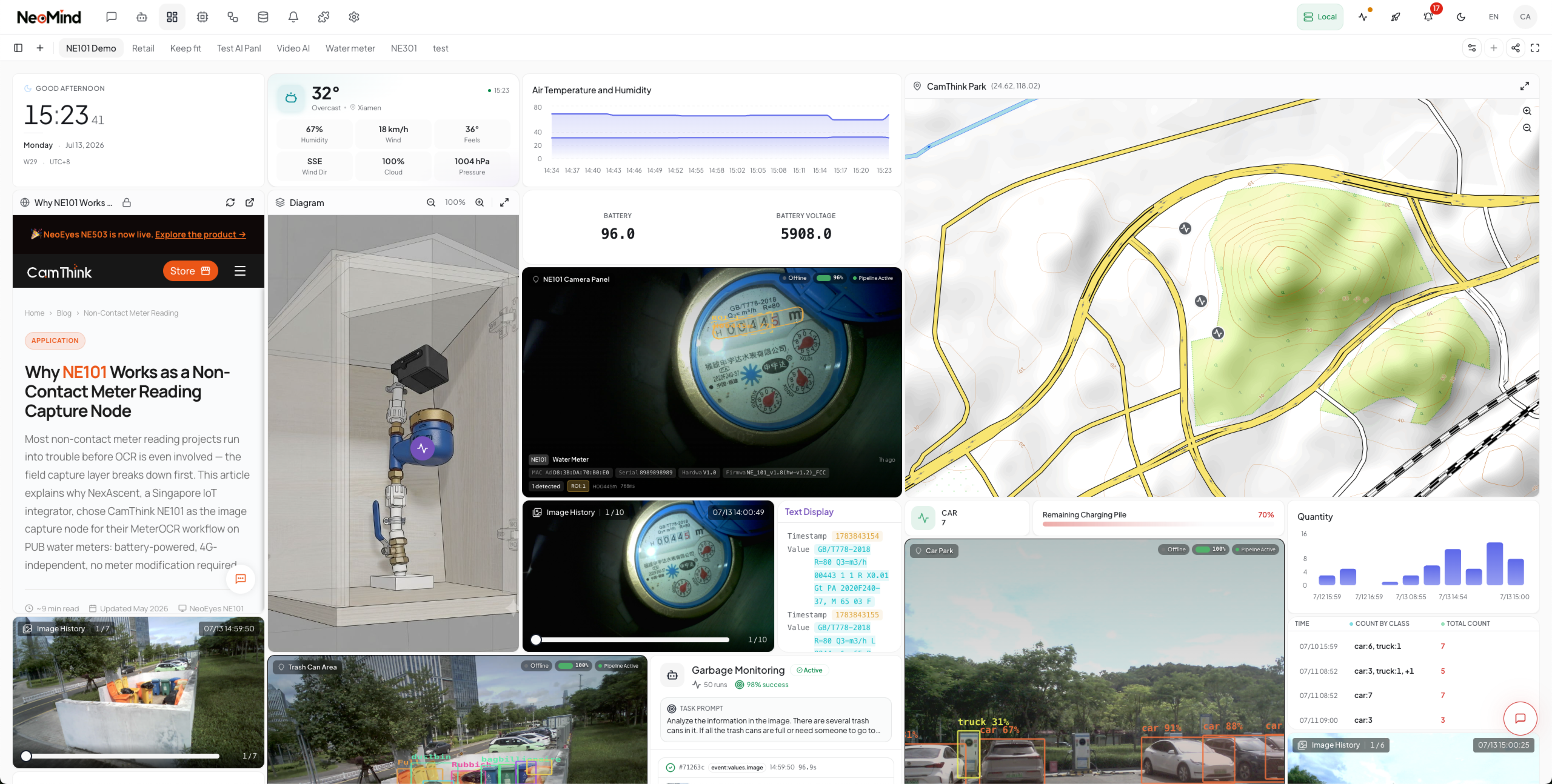

The component reads these virtual metrics, overlays text boxes on the image by their normalized coordinates, and shows the extracted text, detection count, and inference time in the bottom info bar.

---

6. Application Scenarios

This section lists typical scenarios by AI capability. Device onboarding, component setup, binding, and ROI config are identical across all scenarios (Sections 3–5); the only difference is the extension, template, and parameters chosen in step 5.3:

AI capability	Extension	Template	Key parameter
OCR / text recognition	paddle-ocr-v6 / paddle-ocr-vl	text_detection	—
Object detection	yolo-device-inference / image-analyzer-v2 / locate-anything-v2	object_detection	processingCategories (e.g. person,car)
Open-vocabulary grounding	locate-anything-v2	grounding	processingPhrase (natural-language description)

6.1 OCR / text recognition

Water-meter reading: face the camera at the meter, draw the ROI over the reading area, and set processingRoiAction = filter to discard the logo, model, and other irrelevant text. After capture, recognized digits and units (e.g. 00238, m³) are overlaid; the reading can be parsed into a number via Data Transform to plot consumption trends.

Product labels: aim the camera at shelf price tags or conveyor labels, draw the ROI over the main text area (name, SKU, price, batch), and use multiple ROIs for multiple labels. The returned text can be pushed to ERP or reconciliation systems, or aggregated in the dashboard as "SKUs recognized this round".

For complex layouts (tables, invoices, warped documents), switch to paddle-ocr-vl (VLM; requires a GPU service).

6.2 Object detection

Select yolo-device-inference (or image-analyzer-v2); the template auto-switches to object_detection, and you fill processingCategories with the classes of interest (e.g. person,car). After capture, detection boxes with class labels are overlaid, and results are written to virtual metrics for counting, statistics, and alerts.

• People counting / vehicle detection: processingCategories = person or car, combined with ROI count to tally targets in a region.
• Zone intrusion alerts: define a forbidden ROI, set processingRoiAction = filter, and trigger when a target appears inside it — pair with Automation Rules to push alerts.
• Custom targets: for targets outside the stock COCO 80 classes (uniforms, helmets, proprietary products), replace the extension's ONNX model with a custom-trained one.

6.3 Open-vocabulary grounding

Select locate-anything-v2; the template switches to grounding, and you describe the object to find in processingPhrase. The model locates it zero-shot, overlays grounding boxes, and counts matches — ideal for classes a fixed detector doesn't know or ad-hoc needs.

• Natural-language counting: processingPhrase = people in red vests, red products on the shelf, trash on the floor — returns all matching locations and a count.
• Defect / foreign-object localization: describe the anomaly (e.g. scratch, leftover tool) to aid localization, then combine with ROI or manual review.

locate-anything-v2 also supports text_detection (text localization) and point (pointing) templates — switch as needed.

---

7. LLM Scene Understanding: AI Agent Visual Analysis

The OCR, detection, and grounding capabilities above are a structured pipeline that returns deterministic text / boxes / classes. When you need more open-ended understanding — describing a scene, judging anomalies, giving recommendations, or reviewing history in natural language — use an AI Agent + vision LLM instead: the Agent binds to the camera device, analyzes each new frame with a vision LLM, and stores results in long-term memory for later queries. This path bypasses the processingExtensionId pipeline — the Agent consumes device images directly.

A vision-capable LLM backend is required (e.g. a multimodal Ollama model or a cloud vision model) — see Configure the LLM backend and AI Agent.

Steps:

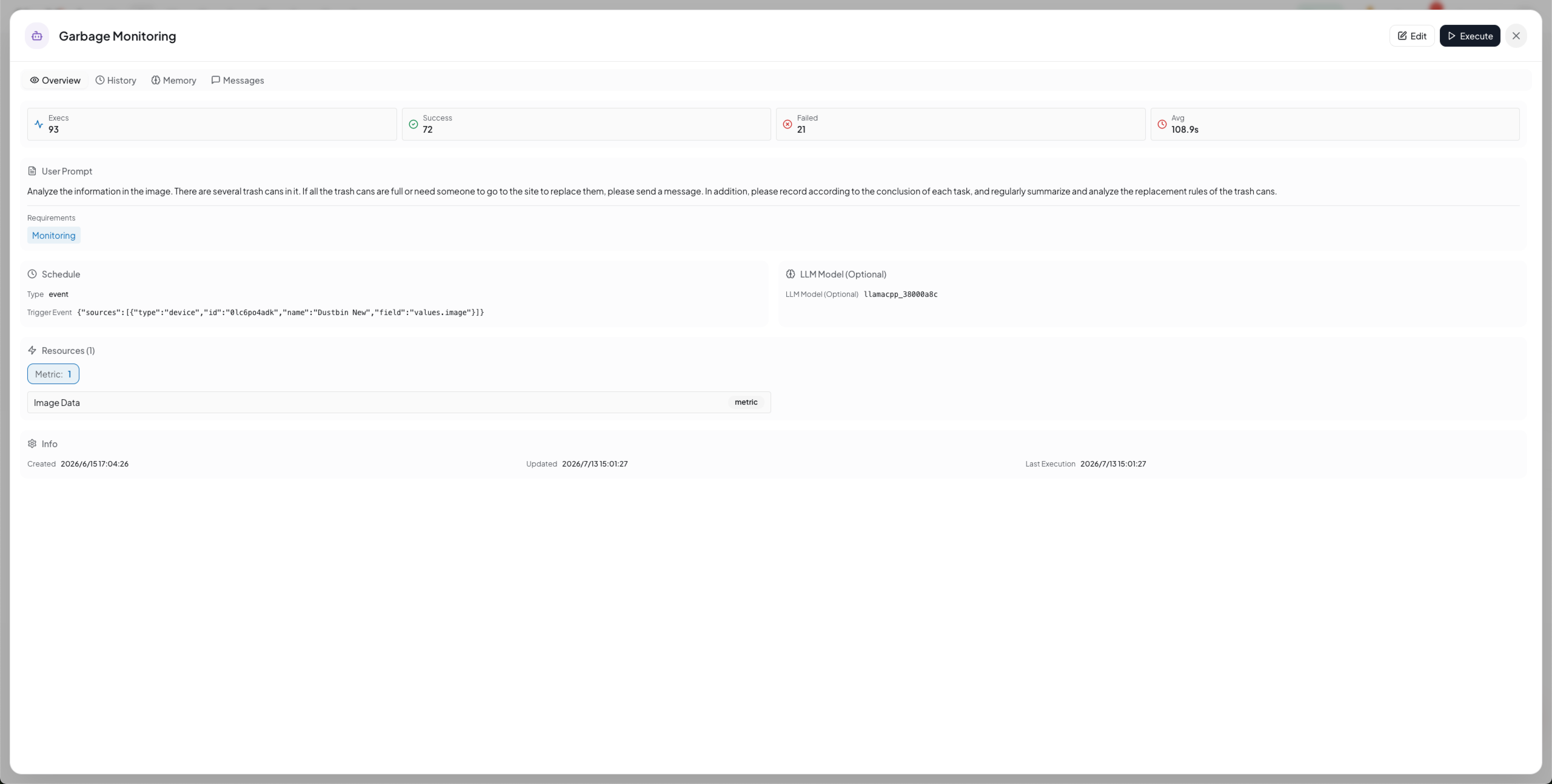

1. Create an AI Agent: on the AI Agent page, create an Agent, bind the target camera device, and define what to analyze with a prompt (e.g. "describe on-site personnel activity and device status; alert on anomalies").

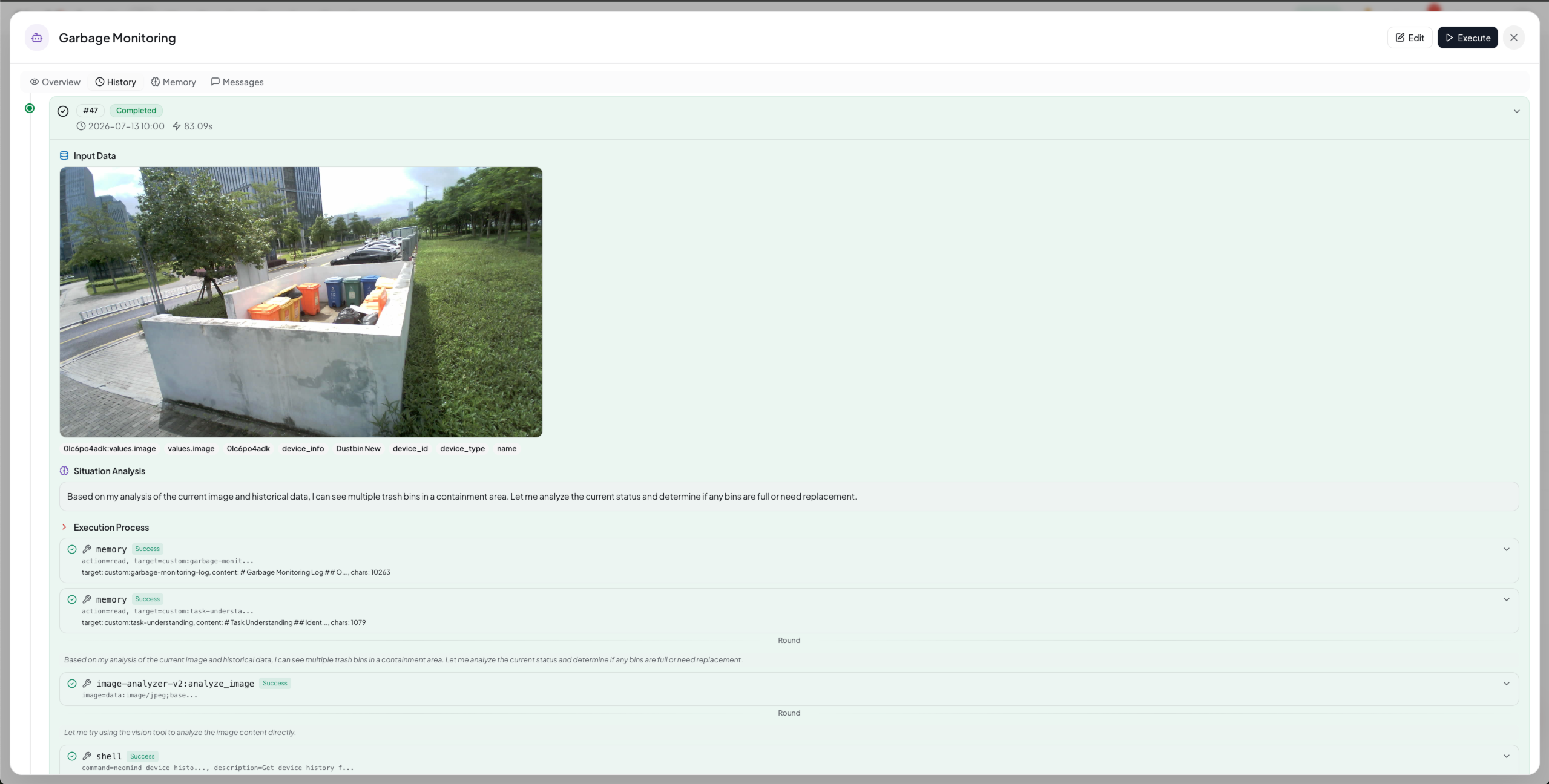

2. Continuous capture + LLM analysis: the Agent is event-triggered — each time the device uploads a frame, it calls the vision LLM to analyze the image.

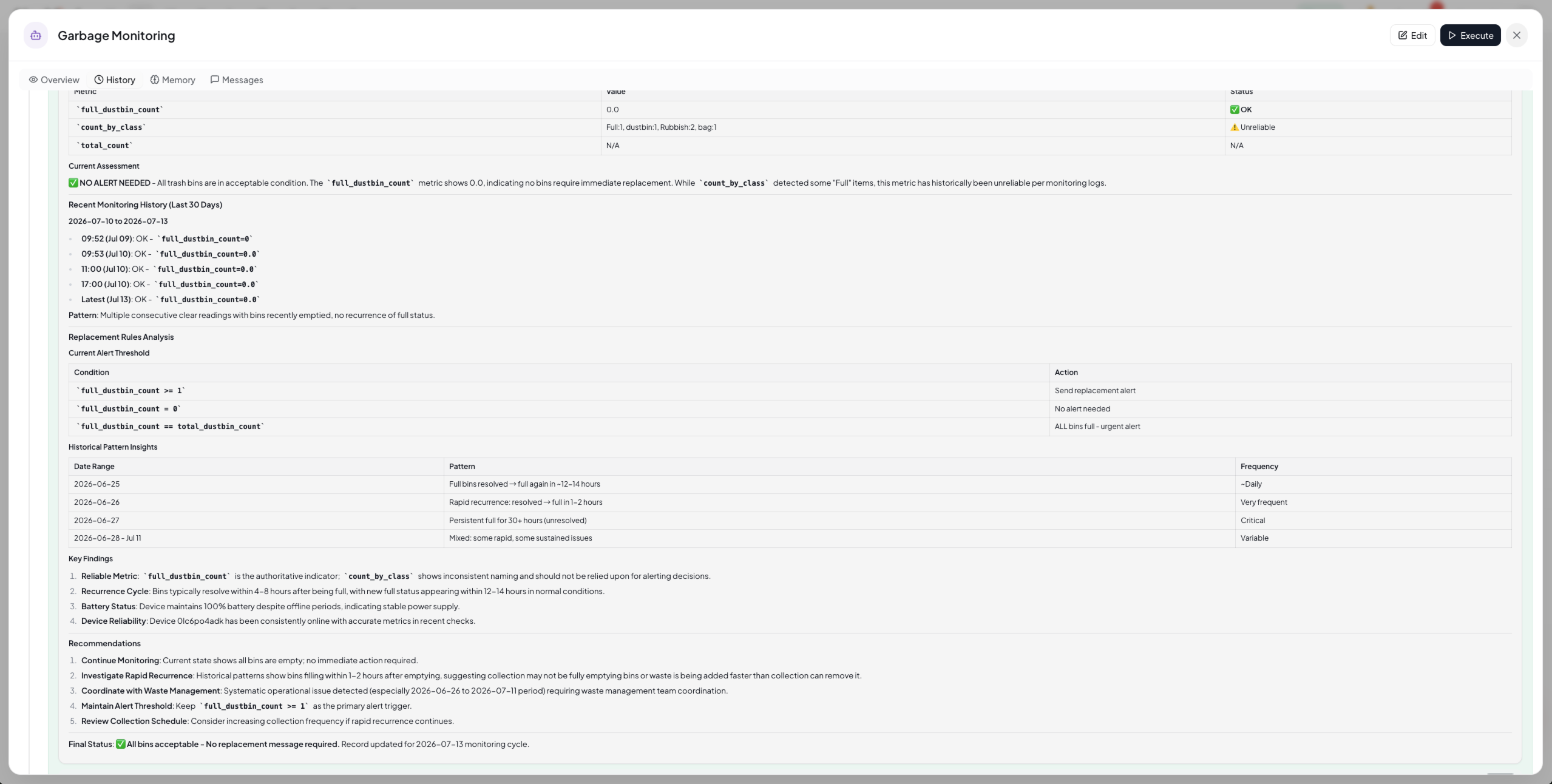

3. View analysis results: each analysis's description, judgment, and recommendations are recorded in the Agent's run history.

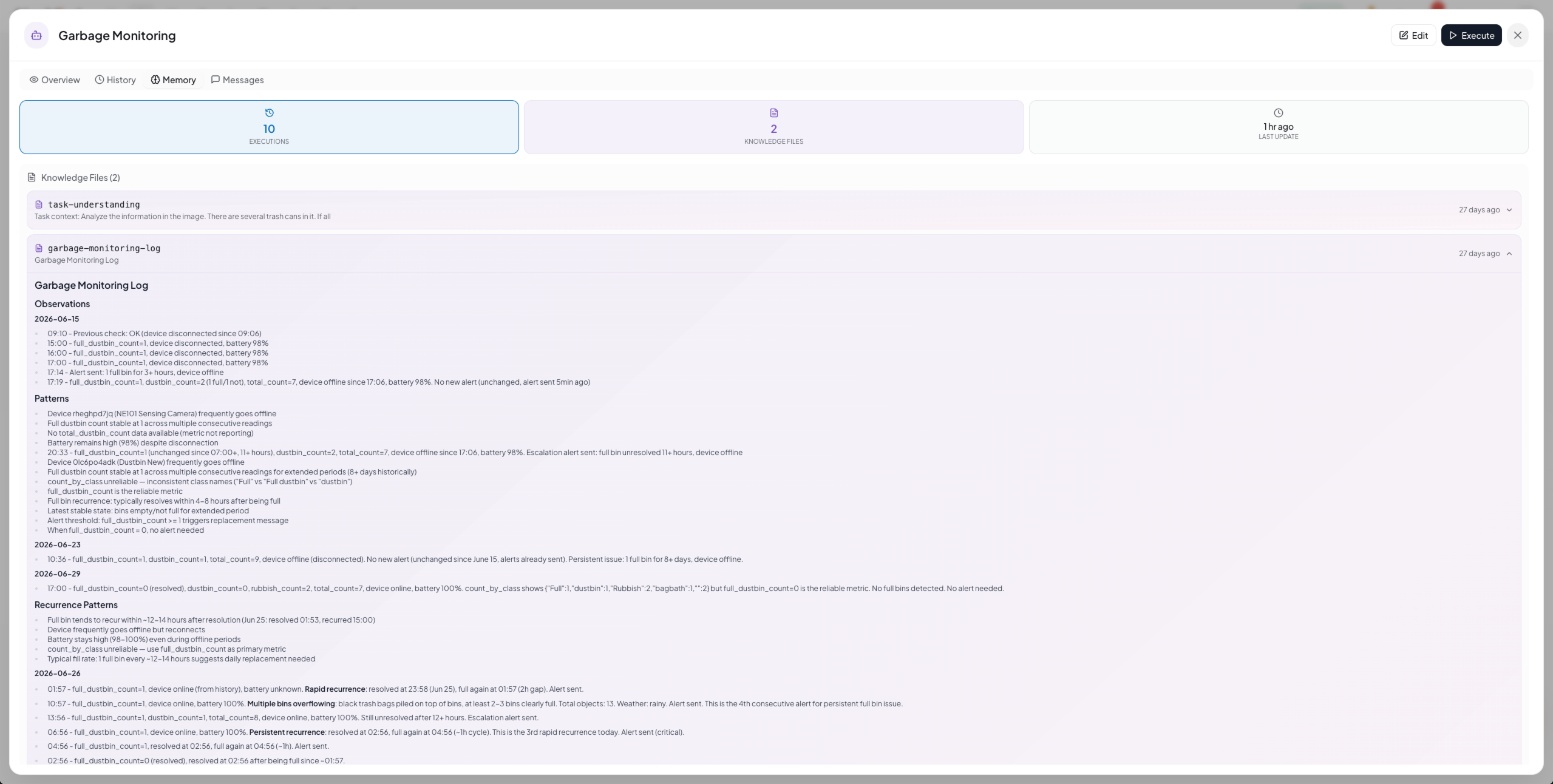

4. Long-term memory: the Agent can write key information to long-term memory, accumulating context across runs (site baseline, past events, etc.).

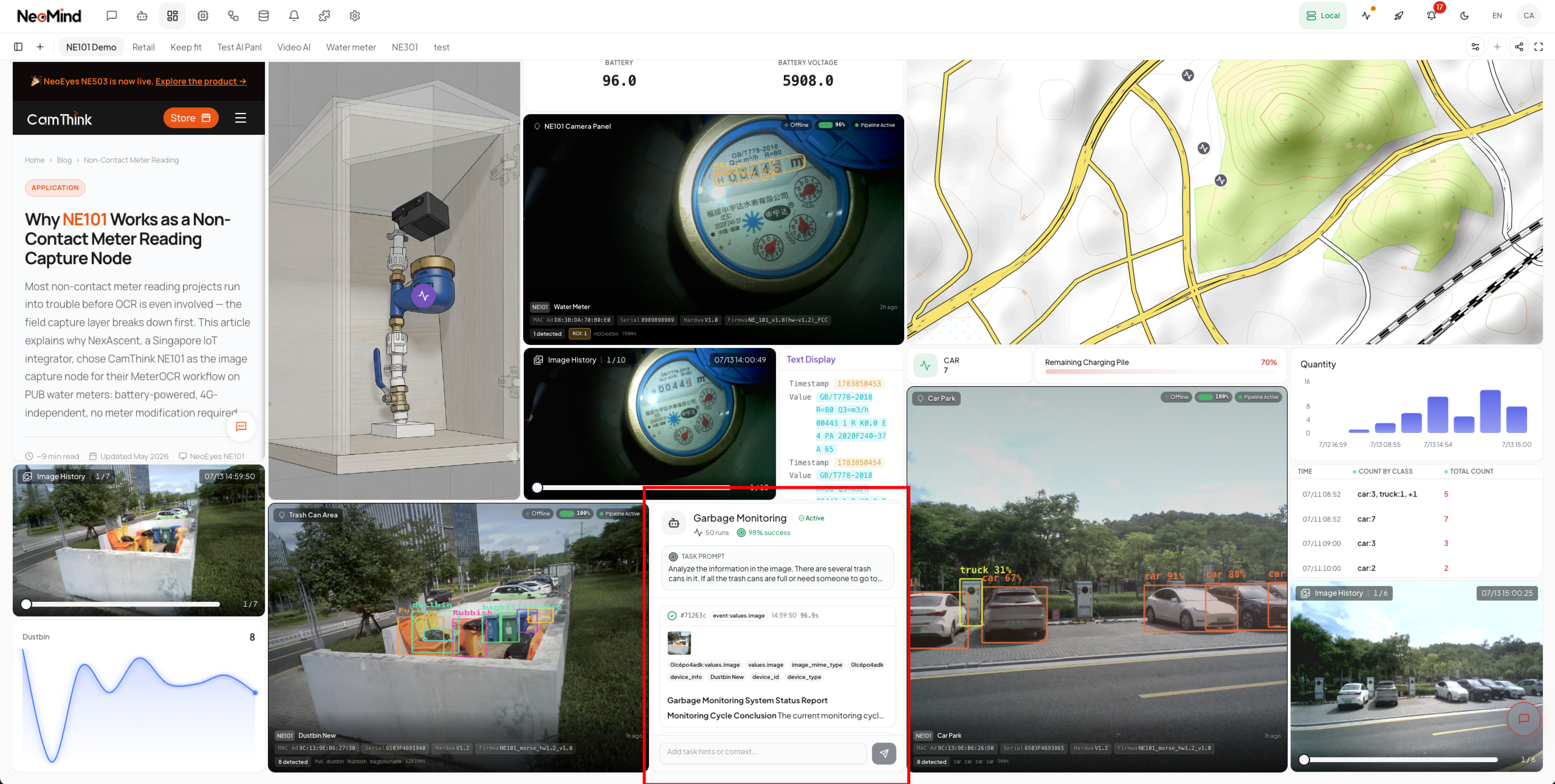

5. Review the site in natural language: with memory and analysis history, ask the Agent to recap the device's deployment and on-site situation in natural language.

---

8. AI Chat Queries

Once results from any capability land in time-series data, you can query them in AI Chat using natural language, for example:

What's the reading trend of my-water-meter over the last 7 days?
How many people did the entrance camera count today? Which hours peaked?
List the product-label SKUs recognized today.

AI Chat requires an LLM backend — see Configure the LLM backend.

---

9. Tuning

9.1 Accuracy tuning

• OCR: the default auto tier covers most scenarios; for missed recognition, upgrade to small / medium or lower the detection threshold, and for false recognition, narrow the focus with ROI filter.
• Object detection: tune the confidence and NMS thresholds and tighten processingCategories; for proprietary targets, swap in a custom ONNX model.
• Open-vocabulary grounding: refine the processingPhrase wording and the NMS threshold to improve recall.

9.2 Relationship to the General OCR Solution

The General OCR Solution uses a basic OCR panel for one-off recognition of a manual capture — "snap one, read one". This guide is a continuous-recognition / detection solution: always-on camera, automated pipeline, ROI overlay. Both build on the NeoMind extension system; pick by scenario.

---
