Engineering Guide

This page is for implementation and integration engineers, covering the complete engineering process of the Vision LLM scene understanding solution from selection and deployment to integration testing and business integration.

1. Solution Scenarios

This solution targets vision scenarios where recognition targets vary, questions are open-ended, and you need to "understand" rather than just "detect": inspection (safety equipment, site status), verification (shelf compliance, item placement), and monitoring (overflow, occupancy, anomalies).

LLM understanding vs fixed models: assess fit first

Vision LLMs do not replace OCR / YOLO — they cover what those cannot. Triage your requirements first:

Trait	Fixed models (OCR / YOLO extensions)	This solution (Vision LLM scene understanding)
Recognition target	Fixed (meter dials, 80 object classes)	Varying, long-tail, descriptive (states, compliance, anomalies)
Output	Classes, boxes, exact text	Descriptions, judgments, conclusions, recommendations
Frequency	High frequency / real-time video	Second- to minute-level sampling is enough
Requirement changes	Each change means retraining	Change the prompt to go live
Typical question	"Is there a person in the frame?"	"Is the work compliant? What are the risks?"

Hybrid patterns are common: high-frequency fixed detection runs on a YOLO extension as the first filter; hits then trigger an Agent for fine-grained understanding — balancing cost and depth. Both coexist in NeoMind; see the TRIGGER_AGENT action in Automation Rules.

Typical scenarios

Scenario	Capture	Task defined by the prompt	Recommended camera
Construction / workshop inspection	Scheduled shots of work areas	Hard hat / vest compliance, unsafe acts and risks	NE301 / NE101
Retail shelf audit	Scheduled shelf shots	Out-of-stock gaps, facing counts, planogram alignment	NE101 / NE302
Bin / silo overflow	Bin-mouth shots	Overflow level grading, threshold alerting	NE101 (battery + 4G)
Meter / screen verification	Dial / display shots	Reading cross-check, needle position, status lights	NE101 (meter bracket)
Agriculture growth patrol	Crop / livestock shots	Growth description, abnormal behavior, health screening	NE301 (solar)
Entrance monitoring	Event shots at doors	Door open/closed, obstruction, personnel flow	NE302 (magnetic mount)

2. Camera Selection

All three NeoEyes cameras output JPEG images and report to NeoMind over MQTT — pick by site conditions:

	NE101	NE301	NE302
Positioning	Low-power battery sensing camera	Modular edge-AI camera	Mini integration vision module
Power	4×AA batteries (years of life) / custom wired	Battery / Type-C / solar / PoE	USB Type-C (full unit) / DC (board only)
Network	Wi-Fi (incl. HaLow) / Cat.1	Swappable Wi-Fi 6 / Cat.1 / PoE modules	Wi-Fi 6 + BLE
On-device AI	—	0.6 TOPS, runs YOLOv8n-class local inference	0.6 TOPS (INT8)
Triggers	Schedule / button	Schedule / PIR / radar / IO / MQTT remote / AI detection	Schedule / trigger button / remote
Protection & mounting	IP67, bracket system	IP67, wall / pole / meter brackets	Indoor magnetic / 3M pad, 42×42×20mm
Best fit	Outdoor sites without power or LAN: wells, farmland	Workshops and farms needing on-device filtering or stable power	Indoor device integration, entrances, workstations

Selection tips:

• Outdoor, no mains power → NE101 battery model first; capture frequency scales battery life linearly — derive frequency from the inspection cycle
• On-device pre-filtering (detect locally, upload only on hits) → NE301; local filtering cuts both uplink traffic and LLM call volume significantly
• Indoor integration / quick pilots → NE302 mini form factor mounts magnetically; wireless and interface variants depend on the delivered SKU

3. Solution Composition (BOM)

#	Item	Model / Spec	Qty	Purpose
1	NeoEyes camera	NE101 / NE301 / NE302, per Section 2	1 per site point	Field capture
2	NG4500 AI Box	Linux edge host	1 per site	Runs NeoMind: ingestion, VLM analysis, storage, dashboards
3	Vision LLM	Local: Ollama vision model; or cloud VLM API	1 set	Image understanding inference
4	Power & network accessories	Batteries / brackets / PoE switch / SIM	As needed	Deployment kit

Starter configuration: 3–5 cameras + 1 NG4500 + a local Ollama vision model runs the full pipeline. Scaling means adding cameras only — the platform and model stay unchanged.

4. Network Topology

General requirements:

• Cameras and the NG4500 join the same LAN (or come back via a HaLow gateway / cellular); the host needs no public internet
• Cameras must reach NeoMind's MQTT port (built-in Broker, default TCP 1883, MQTTS available; allow the device subnet on the host firewall)
• Image analysis and storage complete locally on the NG4500; only a cloud VLM choice requires outbound access to the API domain
• Bandwidth: scheduled-capture traffic is small (a few hundred KB per JPEG × capture frequency); any regular LAN carries it

5. Solution Setup

Follow this order: install NeoMind and the vision model, onboard cameras, create the image-understanding Agent, then run the four-step integration test.

5.1 Install NeoMind (NG4500)

The recommended host is the NG4500 AI Box; any Linux machine or personal computer works for evaluation.

• Platform installation: one-line script / manual deployment / HTTPS setup — see Install & Upgrade
• After installation, open http://<host-IP>:9375 and register the admin account (the platform's data-encryption key is bound to it — keep the credentials safe)

5.2 Configure the Vision LLM Backend

Vision capability comes from the LLM backend — local or cloud, either or both. See Configure LLM Backends.

Option 1: built-in model vision component (recommended to start; data stays local)

MiniCPM-V-4.7-1B in the built-in model catalog is a dedicated vision model (0.7 GB, official Q4_K_M quant + F16 projector, resident alongside the main model):

1. NeoMind Web → LLM Backends → pick MiniCPM-V-4.7-1B on the Built-in Model card for a one-click download (also selectable in the onboarding wizard)
2. Once downloaded, the platform automatically spawns a llama.cpp vision instance (main model + mmproj projector) with Multimodal enabled — zero configuration
3. AI Chat can then take uploaded images, and vision Agents can bind it to analyze camera footage; llm test verifies connectivity

Option 2: local Ollama (when Ollama is already deployed)

1. Install Ollama on the NG4500 and pull a vision model:

ollama pull minicpm-v   # or llava, etc.

2. NeoMind Web → LLM Backends → add an Ollama backend and select the model
3. NeoMind auto-detects multimodal capability; if detection is wrong, flip the Multimodal switch on the backend detail page manually
4. Run llm test to verify connectivity, then set the small vision model as default — bind a stronger cloud backend for complex-analysis Agents

Option 3: cloud VLM (stronger reasoning; requires internet)

• Add an OpenAI / Anthropic / Qwen / GLM backend and pick a vision model such as gpt-5 / claude-sonnet-4-5 / gemini-2.5-flash / qwen3-vl / glm-4.5v, with your API key

Each Agent binds its own LLM backend (decoupled from Chat) — a common mix: inspection Agents on a local small vision model for cost, anomaly-review Agents on a cloud large model for quality.

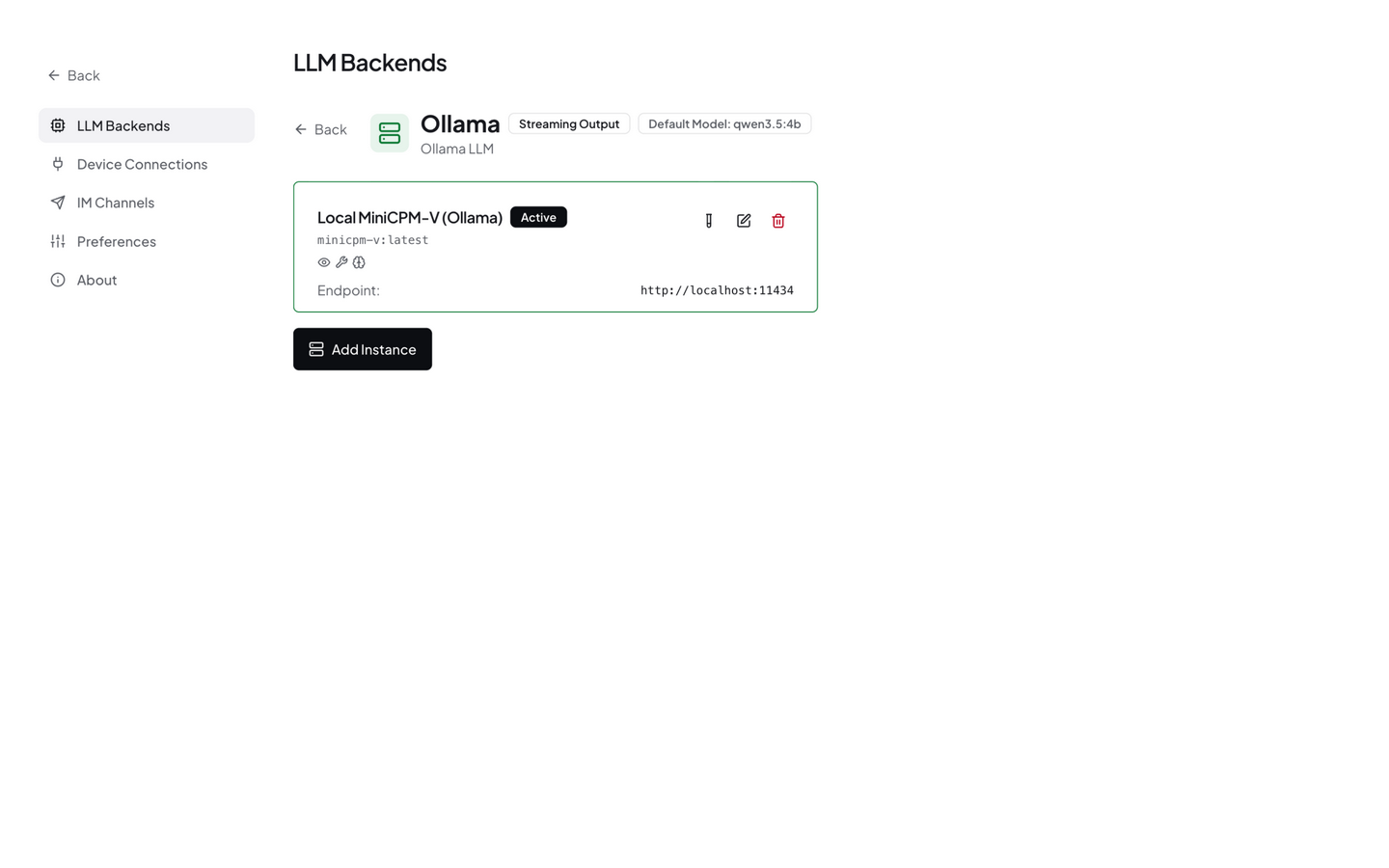

Option 2 in action: an Ollama backend running local minicpm-v, with multimodal capability auto-detected by NeoMind (the "eye" badge on the card) — no API key, data never leaves the box.

5.3 Onboard Cameras

1. Confirm the built-in ne101_camera component is available on the platform (receives reported images)
2. Add devices with the ne101_camera / ne301_camera device-type templates, bind them to a project, and note the MQTT Server Address and Data Reporting Topic
3. Configure reporting on each camera: NE101 — long-press the capture button to open the AP, then fill the MQTT details in its Web UI; NE301 / NE302 — configure on the MQTT reporting page of their web consoles. See the NE101 / NE301 / NE302 quick starts for specifics
4. Reported devices appear in the pending list; approve to complete onboarding

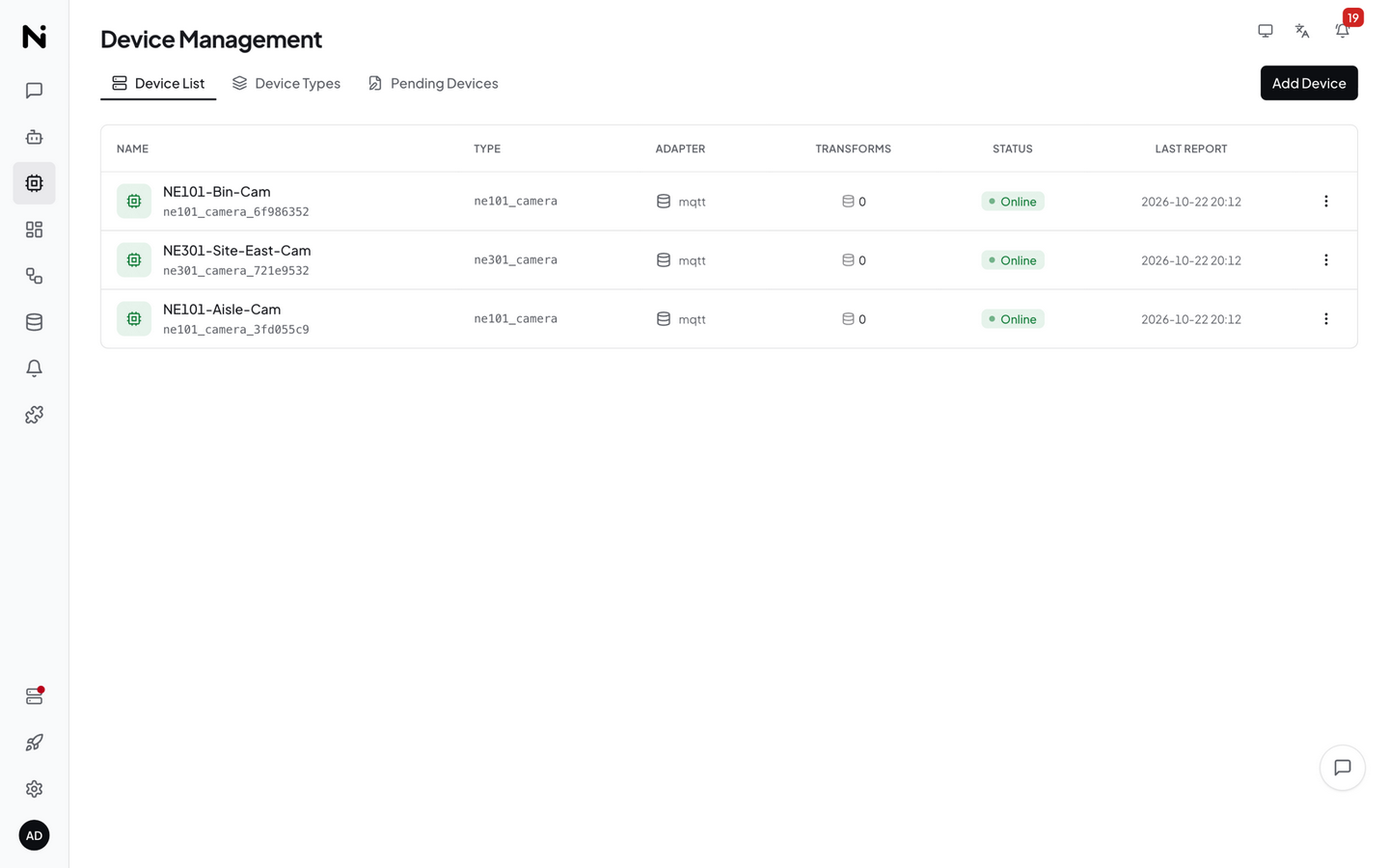

Three cameras onboarded in the demo — one NE301 watching the site's east work area, two NE101s covering a store aisle and a waste collection point:

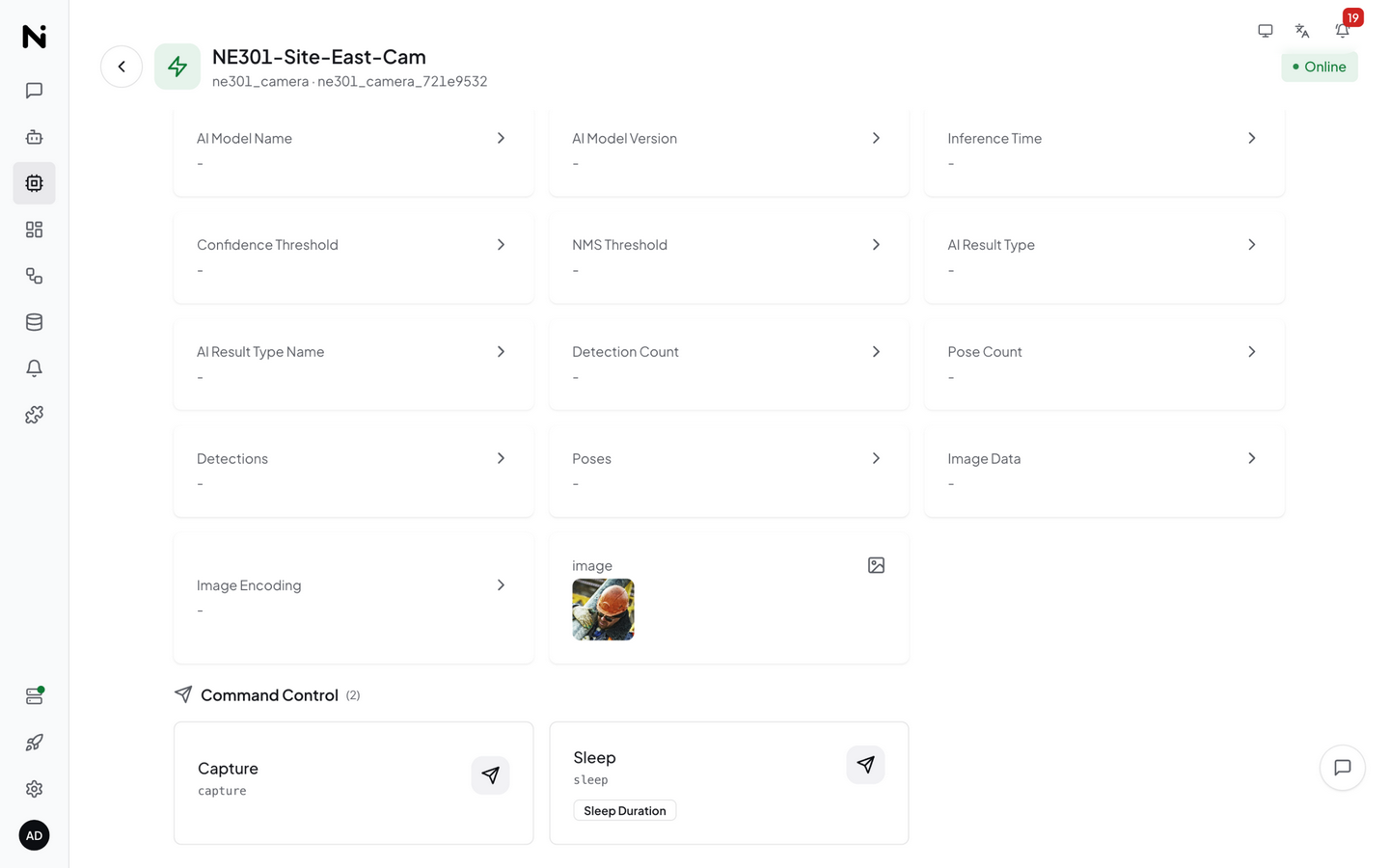

Every reported frame lands as the device's image metric (URL reference to the stored original); the device detail page previews the thumbnail and exposes remote commands such as Capture / Sleep:

5.4 Create the Image-Understanding Agent

Go to Agents and create an Agent (full field reference in AI Agent). Choose the execution form by business shape:

Recommended: Structured mode — results land directly as metrics

1. Set Execution Mode to Structured and bind the camera device (image data source)
2. Define the output fields schema — each field has a name, type (Number / Text / Boolean / Enum), unit and description:

Field	Type	Unit	Description (injected into the prompt)
helmet_count	Number	person	Number of people wearing hard hats
violation	Enum: none, no_helmet, no_vest	—	Violation type: none / no helmet / no vest
scene_summary	Text	—	One-sentence description of site activity

3. Write the User Prompt with analysis requirements and judgment criteria (examples in Section 6)
4. Schedule as Event (analyze on every new frame) or Cron (sampled polling; 6-field expression, e.g. 0 */30 * * * * every 30 minutes)
5. Bind the vision backend from 5.2 as the LLM Backend, save — the Agent turns Active

Each run: images injected as multimodal messages → single constrained inference → fields schema-validated → written as ai:{agent_id}:{field} virtual metrics ready for dashboards.

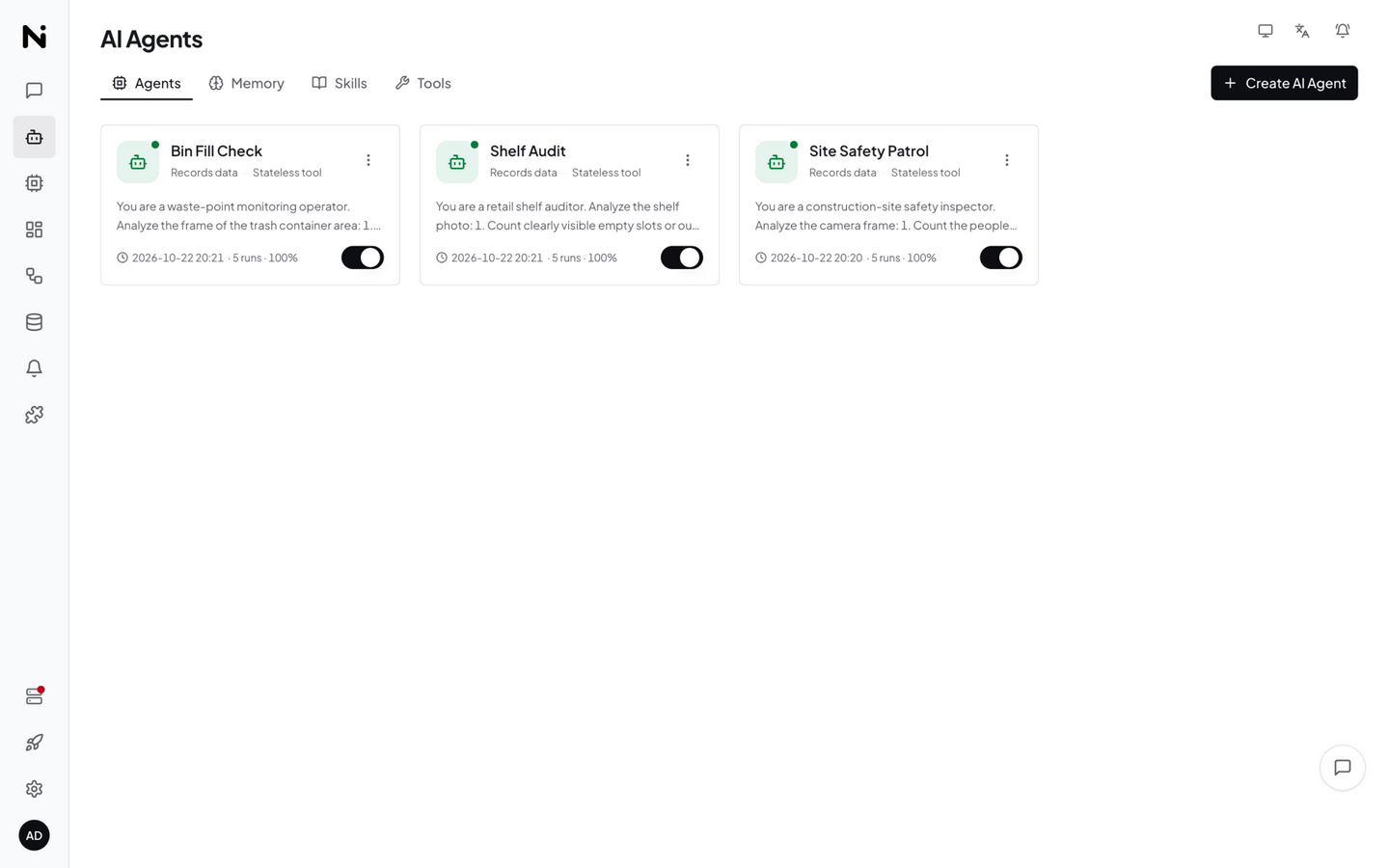

The demo environment created three structured Agents this way — Site Safety Patrol, Shelf Audit and Bin Fill Check — all Event-triggered, all bound to the same local vision model:

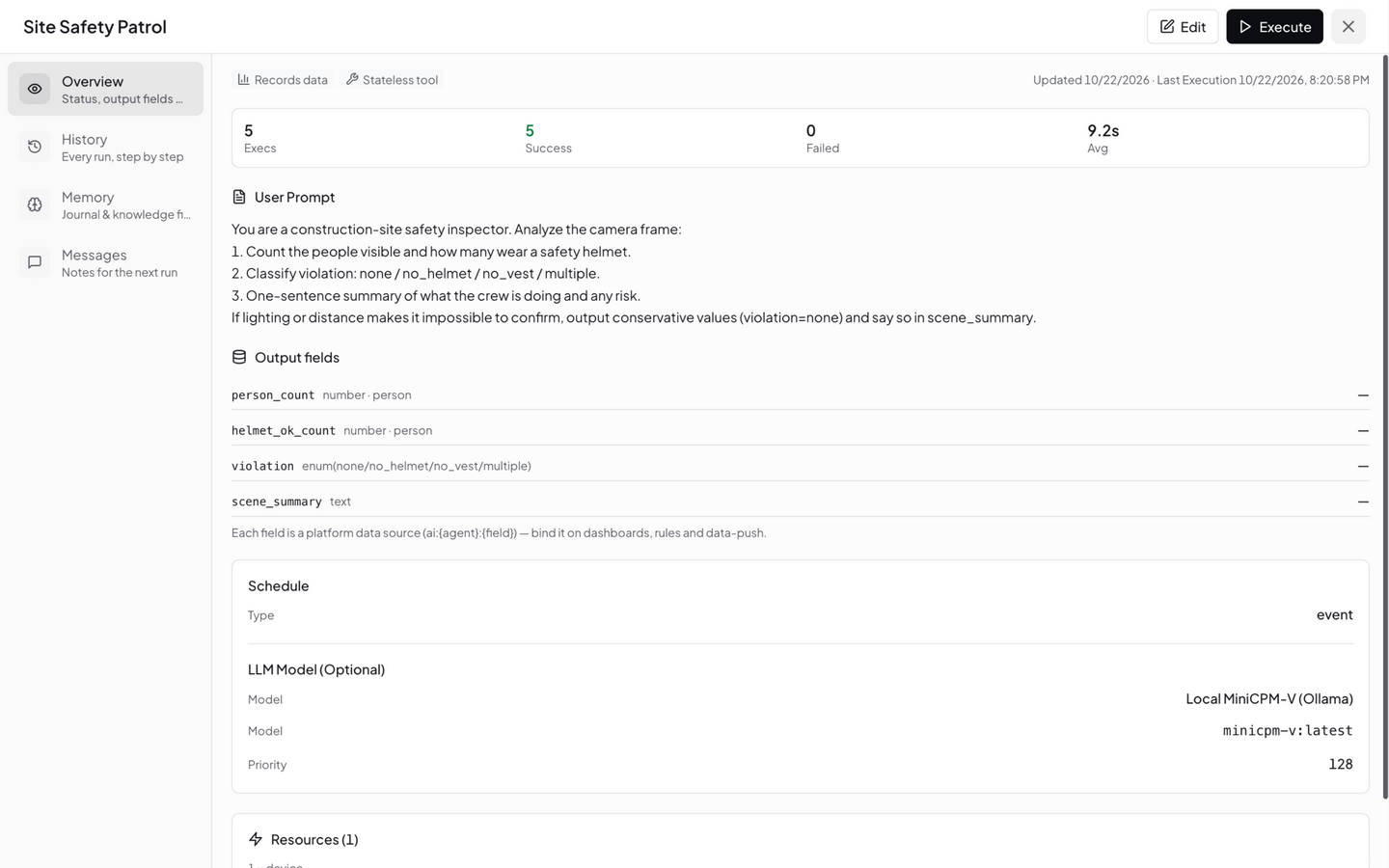

The Agent detail page concentrates the structured definition: User Prompt, Output fields (each field is one ai:{agent}:{field} data source), Schedule (event) and the bound vision model:

Alternative: Focused / Free event mode — more flexible analysis

• Bind the camera device + Event trigger; images are injected automatically; the Agent can chain tools (query history, send notifications, run commands) with conclusions recorded in execution history
• Fits composite "judge + act" tasks (e.g. violation detected → query recent device data → send a Feishu alert)
• To store results as metrics, parse the output JSON into virtual metrics with Data Transforms

5.5 Integration Test (four checks)

Verify in order; if one fails, troubleshoot that stage first:

1. Capture arrival: trigger a capture manually; the image shows up in the camera component and device data
2. Agent run: Agent detail → Execute Now; an execution record appears and completes. On failure, read error (common causes: backend Multimodal off, model is not a vision model)
3. Metric landing: ai:{agent_id}:* virtual metrics appear under devices/metrics with fresh data points
4. Dashboard rendering: add a metric card on a dashboard; values refresh with each capture

All four passing = the pipeline is accepted.

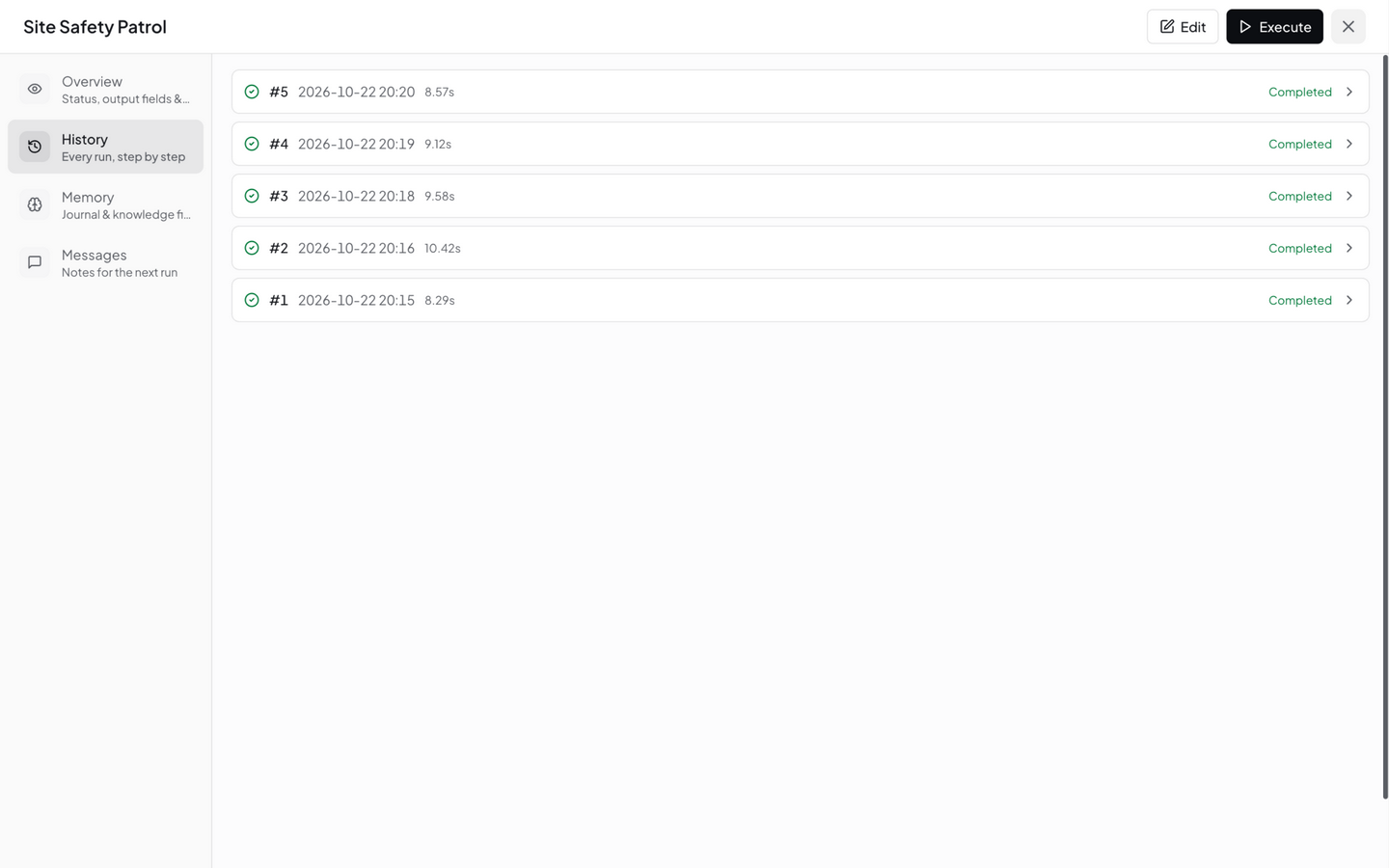

Integration-test records from the demo: 5 consecutive Completed runs (8–10 s each on a local 1B vision model):

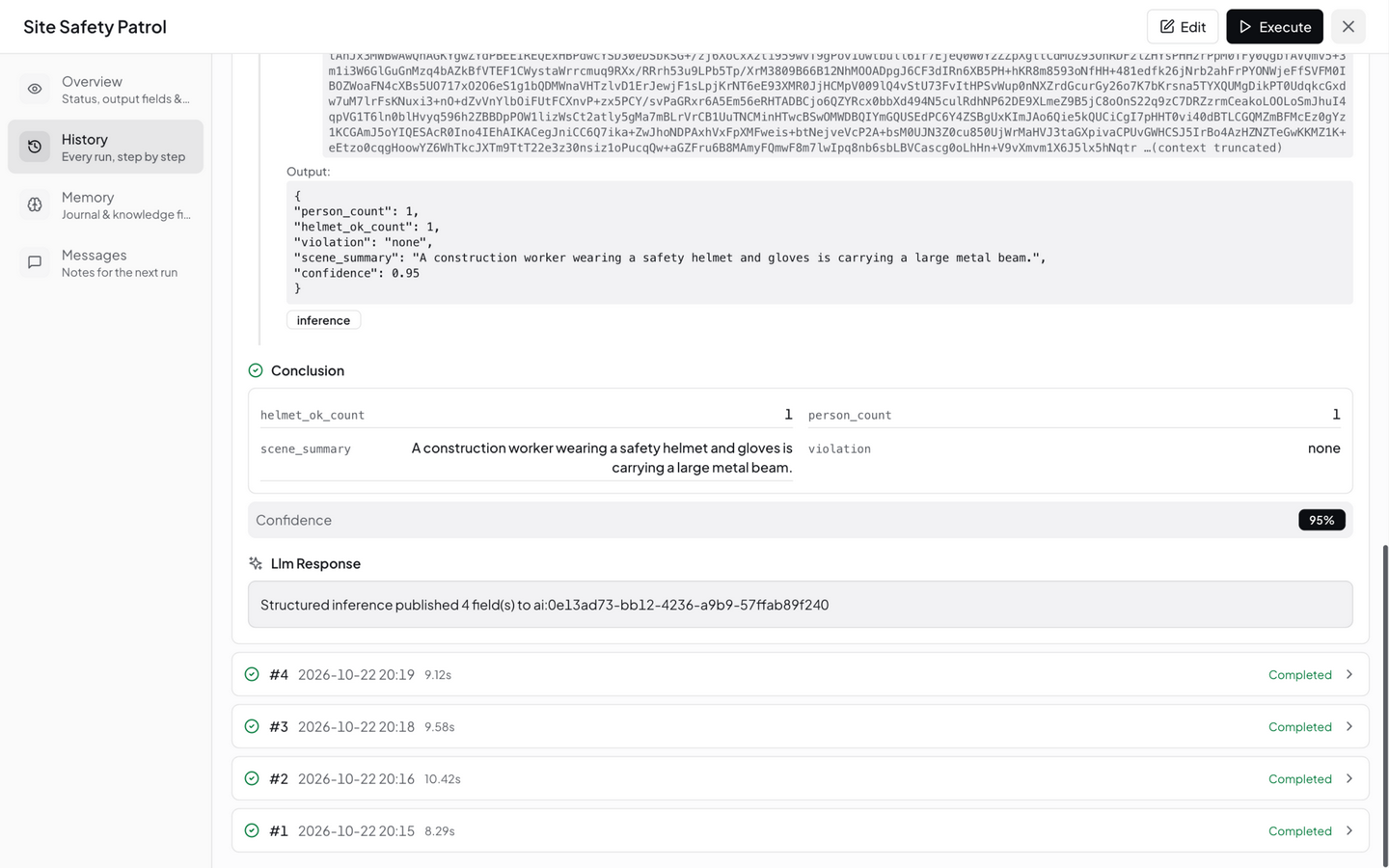

Opening any run replays the full analysis: the input includes the captured frame, the output is schema-validated JSON with a confidence score, and a note confirms the fields were published as virtual metrics — full auditability in action:

5.6 Build the Dashboard

Ingestion is only half the story — operations and business teams watch the dashboard. Build an inspection board in four steps in the Visual Dashboard:

1. New Dashboard: Visual Dashboard → New Dashboard, name it (e.g. Site Safety Patrol)
2. Enter edit mode: click the gear icon in the toolbar to unlock drag & drop
3. Add components: click + in the toolbar to open the component library and add four kinds of widgets —

Widget	Data source	Purpose
Value Card ×2	ai:{agent_id}:person_count, ai:{agent_id}:helmet_ok_count	Latest people / compliance counts
Line Chart	ai:{agent_id}:person_count	People trend
Image Display + Image History	the camera's image metric	Latest frame + capture history
Agent Monitor	bound to the Agent	Live execution status and per-run conclusions

4. Arrange & save: organize as three blocks — status cards, trend chart, image stream — then ✓ save; the board becomes visible to everyone

The full widget catalog, data-source binding details, sharing and mobile notes: Using Dashboards.

5.7 Data Storage & Display

Three destinations for analysis results, use as needed:

Destination	Content	Use
Virtual metrics (time-series store)	Structured fields (ai:{agent_id}:*)	Trend charts, period comparisons, alert rules, dashboard cards
Execution records (JSON)	Full reasoning chain: collect → analyze → decide → conclude + timing	Tracing a single conclusion, audits, prompt tuning
Agent memory	Journal summaries and knowledge files	Cross-run context (site baselines, historical events)

• Original captures: stored on the NG4500; retention is controlled in data-retention settings with automatic cleanup
• Suggested three-block dashboard: latest-status card (latest conclusion + time), metric trend chart (violations / state distribution), image stream (camera component live view + capture history); see Using Dashboards
• Structured JSON in execution records can be pulled via REST API and archived to business-side warehouses

5.8 Data Forwarding (optional)

Method	Description	Fit
Data Push	New data points of selected virtual metrics pushed to a business HTTP endpoint in real time (with retries)	Real-time linkage, big screens
OpenAPI pull	Business systems pull metrics and execution records via REST API on a cycle	Daily / weekly reporting

• Configuration: Data Push / Platform API
• Violation alerts, device offline and similar events go through Notifications via Webhook / IM / email
• Field mapping example: site ↔ device ID; violation type ↔ ai:{agent_id}:violation; evidence ↔ execution record ID + original capture URL

6. Prompt & Scenario Examples

Prompt quality drives analysis quality. Three principles: role + judgment criteria + output requirements, and explicitly allow "say uncertain when uncertain" to suppress hallucination.

Example 1: construction site safety inspection (Structured + Event)

You are a site safety inspector. Analyze the workers in the frame:
1. Count the people present and those wearing hard hats;
2. Classify violation: none / no helmet / no reflective vest / multiple;
3. Describe the site activity in one sentence (what is happening, any risk);
4. If lighting is poor or people are too small to confirm, output none for
   violation and note "insufficient image conditions" in scene_summary —
   never guess.

Example 2: retail shelf audit (Structured + Cron every 2 hours)

You are a store compliance auditor. Analyze the shelf image against the
planogram standard:
1. Identify visible out-of-stock gaps (bare shelf board as the criterion);
2. Count visible product facings;
3. Judge whether products are faced to the shelf edge;
4. Base conclusions only on visible content; note unreadable shelf levels
   in the summary.

Example 3: anomaly review + linked alert (Focused/Free + Event)

You are a warehouse monitoring operator. Analyze the frame just reported:
1. Determine whether an anomaly exists (fire signs, heavy smoke, a fallen
   person, blocked aisles);
2. If suspected: query this device's metrics from the last hour to
   cross-check; on confirmation, send an alert message (title includes
   site name and anomaly type);
3. If normal or unconfirmed: record briefly, no alert;
4. If the journal shows an alert for the same event within the last 10
   minutes, do not send again.

Tuning experience: too many false positives → tighten judgment criteria, add "output the conservative value when uncertain"; too many misses → relax thresholds, raise capture frequency; drifting outputs → check that output-field descriptions match the prompt's criteria.

7. Frequency & Capacity Planning

Item	Reference	Notes
Capture frequency	Status checks every 5–30 min; event-driven at entrances	Frequency × points = VLM call volume, linear
Local VLM throughput	4B-class models: seconds per frame (host-dependent)	Start pilots with low-frequency Cron, observe latency, then scale
Structured Agent limits	Merge window defaults to 30s; daily call cap available	Auto-pauses at the daily cap; circuit breaker after consecutive failures keeps last good values
Image size	≤ 10MB per frame; auto-scaled to 1280px before analysis	Fine distant detail (small text) requires closer placement
Execution timeout	Agent runs capped at 5 minutes	Structured single inference defaults to a 60s timeout
Data retention	Images and metrics cleaned per retention policy	Long-term archive via Data Push / OpenAPI offload

Cost experience: local Ollama models have zero marginal cost — ideal for high-frequency inspection; cloud VLMs bill per call — ideal for low-frequency deep review. Mix them per Agent as needed.

8. Technical Support

• Community support: Discord / GitHub Discussions
• Custom solutions & volume deployment: Contact us to reach the CamThink technical support team
• Private model adaptation / scenario prompt tuning / large-scale site planning: same as above; include point count, capture frequency and target model in your request
