Overview​

This document covers three GME display modules: a 0.96" OLED, a 1.14" TFT LCD, and a 1.54" TFT LCD. They use SSD1315 and ST7789 driver ICs respectively, supporting I2C and SPI interfaces, and can be widely used in IoT devices, smart terminals, and embedded instruments for information display.

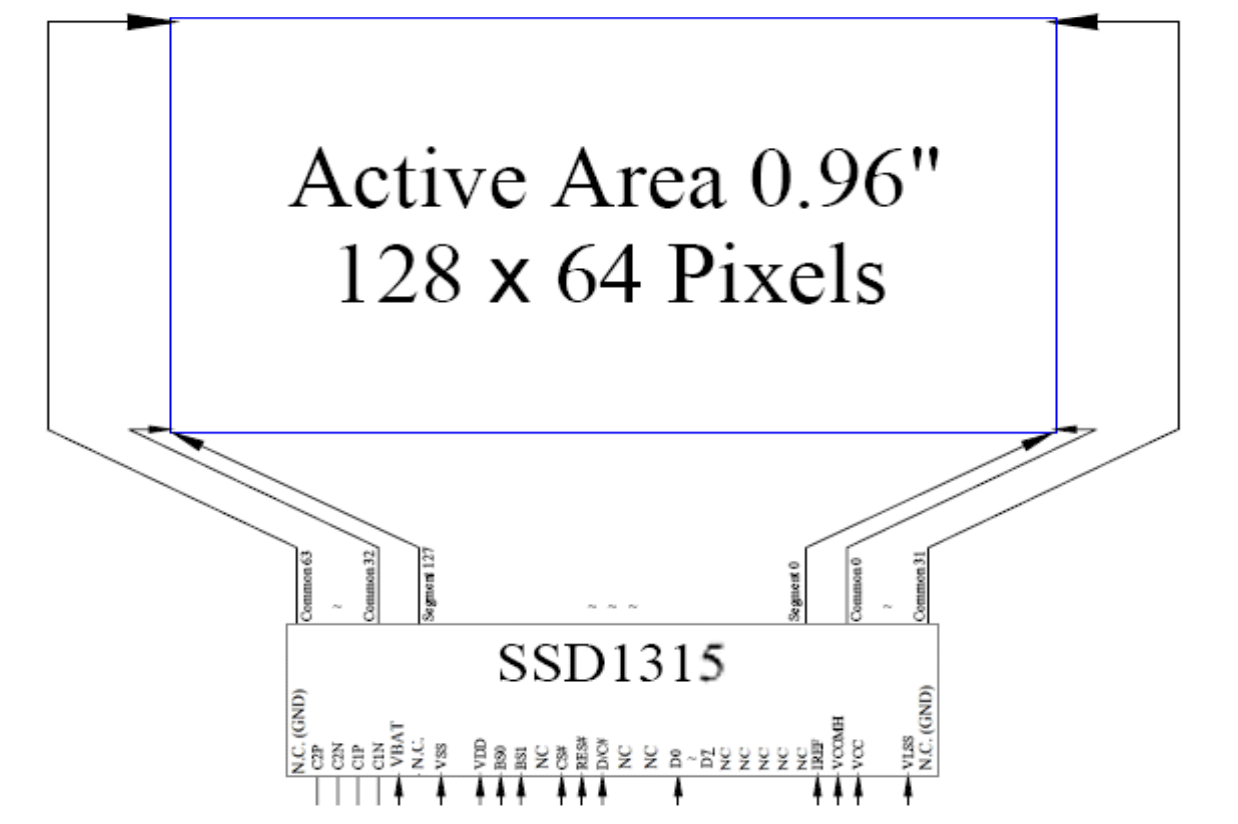

0.96" OLED GME12864

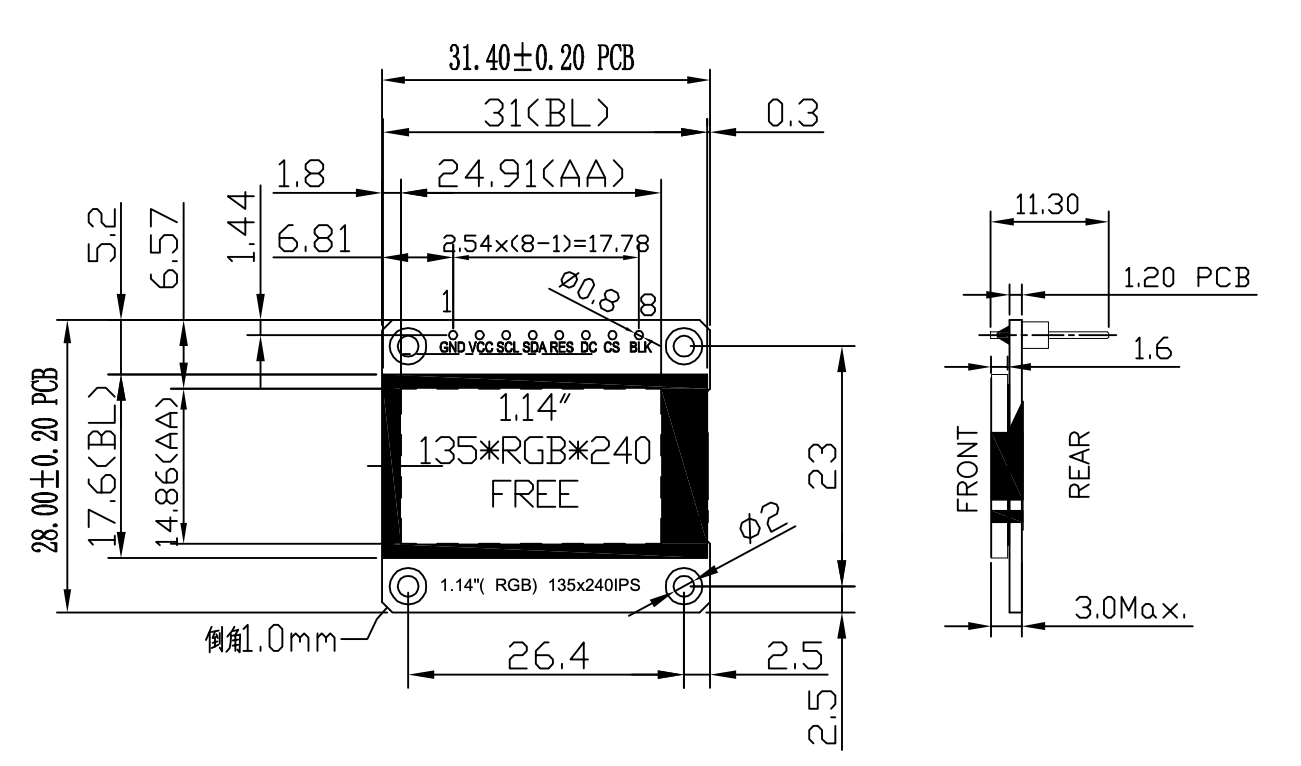

1.14" TFT LCD GMT114-02

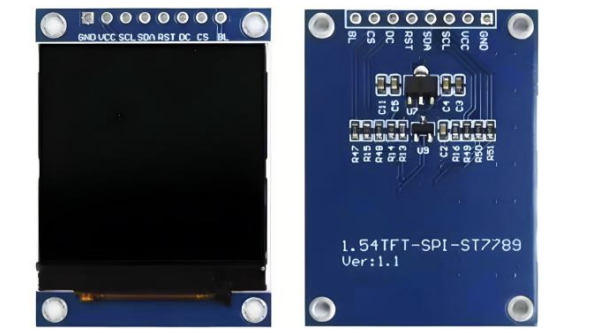

1.54" TFT LCD TB154-07-08-B

1. Product Overview​

1.1 Product Comparison​

Parameter0.96" OLED (GME12864)1.14" TFT LCD (GMT114-02)1.54" TFT LCD (TB154-07-08-B)
Display TypePassive Matrix OLEDIPS TFTIPS TFT
Driver ICSSD1315ST7789VST7789
Resolution128 Γ— 64135 Γ— 240 (RGB)240 Γ— 240 (RGB)
InterfaceI2C4-Wire SPI4-Wire SPI
ColorsBlue65K262K
Module Size (mm)24.7 Γ— 27 Γ— 11.331.4 Γ— 28 Γ— 11.332 Γ— 43.7 Γ— 5.32
Pin Count488

1.2 Key Features​

  • 0.96" OLED: Self-illuminating display with high contrast and low power consumption, suitable for static text and simple graphics
  • 1.14" TFT LCD: IPS wide viewing angle with SPI high-speed refresh and 65K colors, suitable for colorful UI interfaces
  • 1.54" TFT LCD: Large square screen with 262K colors and normally black mode display, suitable for interactive applications

1.3 NE301 Application Scenarios​

In the NE301 sensor expansion board, the display serves as a local status indicator and human-machine interface, capable of displaying detection results, device status, and configuration information directly on the device without connecting to a phone or computer to view NE301's running status and AI detection results.

Application ScenarioRecommended ModuleDescription
Device Status Indicator0.96" OLEDLow-power display of device online status, IP address, model loading status
Detection Result Display1.14" TFT LCDColorful display of AI detection bounding boxes and confidence levels
Interactive Terminal1.54" TFT LCDLarge screen display of complete captured images and detailed configuration menus

2. Specifications​

2.1 Basic Parameters​

0.96" OLED (GME12864)​

ParameterSpecification
ManufacturerGME
ModelGME12864-49/50/51/52/53/54
Display Type0.96" OLED Passive Matrix
Drive Method1/64 Duty
Viewing Direction6 O'clock
Supply Voltage3.0V ~ 12.0V
Active Area22.74(L) Γ— 11.86(W) mm
Effective Display Area21.74(L) Γ— 10.86(W) mm

1.14" TFT LCD (GMT114-02)​

ParameterSpecification
ManufacturerGME
ModelGMT114-02
Display Type1.14" IPS TFT
BacklightWhite LED
RoHSYES

1.54" TFT LCD (TB154-07-08-B)​

ParameterSpecification
ManufacturerGME
ModelTB154-07-08-B
Display Type1.54" IPS TFT
Display ModeNormally Black
Viewing AngleALL
Effective Display Area27.72(W) Γ— 27.72(H) mm
Pixel Pitch0.1155(H) Γ— 0.1155(V) Β΅m
Color ArrangementRGB Vertical Stripe

2.2 Performance Parameters​

1.54" TFT LCD DC Characteristics​

ParameterMinTypicalMaxUnit
Analog Supply VCC2.42.753.3V
Logic Supply IOVCC1.652.83.3V

1.54" TFT LCD Backlight Characteristics​

ParameterTypicalUnit
Forward Voltage VF3.2V
Forward Current IF60mA
Power Consumption Pd192mW
LED Lifetime (25Β°C)10000Hrs

2.3 Operating Conditions​

ParameterSpecification
Operating Temperature (1.54")-20Β°C ~ 70Β°C
Storage Temperature (1.54")-30Β°C ~ 80Β°C
Supply Voltage (0.96" OLED)3.0V ~ 12.0V

3. Pin Definition​

3.1 0.96" OLED (4-pin)​

PinNameDescription
1GNDGround
2VCCPower supply input (3.0V ~ 12.0V)
3SCLI2C clock line
4SDAI2C data line

3.2 1.14" TFT LCD (8-pin)​

PinNameDescription
1GNDGround
2VCCPower supply input
3SCLSPI clock line
4SDASPI data input/output
5RESReset (active low)
6DCData/command select
7CSChip select (active low)
8BLKBacklight control

3.3 1.54" TFT LCD (8-pin)​

PinNameDescription
1GNDGround
2VCCAnalog power supply
3SCLSerial clock
4SDASPI data input/output
5RSTLCM reset
6DCRegister select
7CSChip select (active low)
8BLBacklight
ItemInformation
Document Versionv1.0
Last Updated2026-04-08
