AI Agent

AI Agent is NeoMind's autonomous execution mode — you set goals and triggers, and the Agent runs automatically on schedule or event, collecting data, calling LLM for analysis, and executing actions. Compared to AI Chat:

Dimension	AI Chat (Interactive)	AI Agent (Autonomous)
Trigger	You send messages, real-time	Scheduled / event-triggered
Context	Conversation history	Memory system (journal + knowledge)
Use case	Ad-hoc queries, exploration, debugging	Long-term monitoring, scheduled checks, event response
Config	Go to Chat page	Create in Agents tab

Prerequisites

• An LLM backend configured (Agents call LLM)
• Devices onboarded (Agents need data sources)

Interface Overview

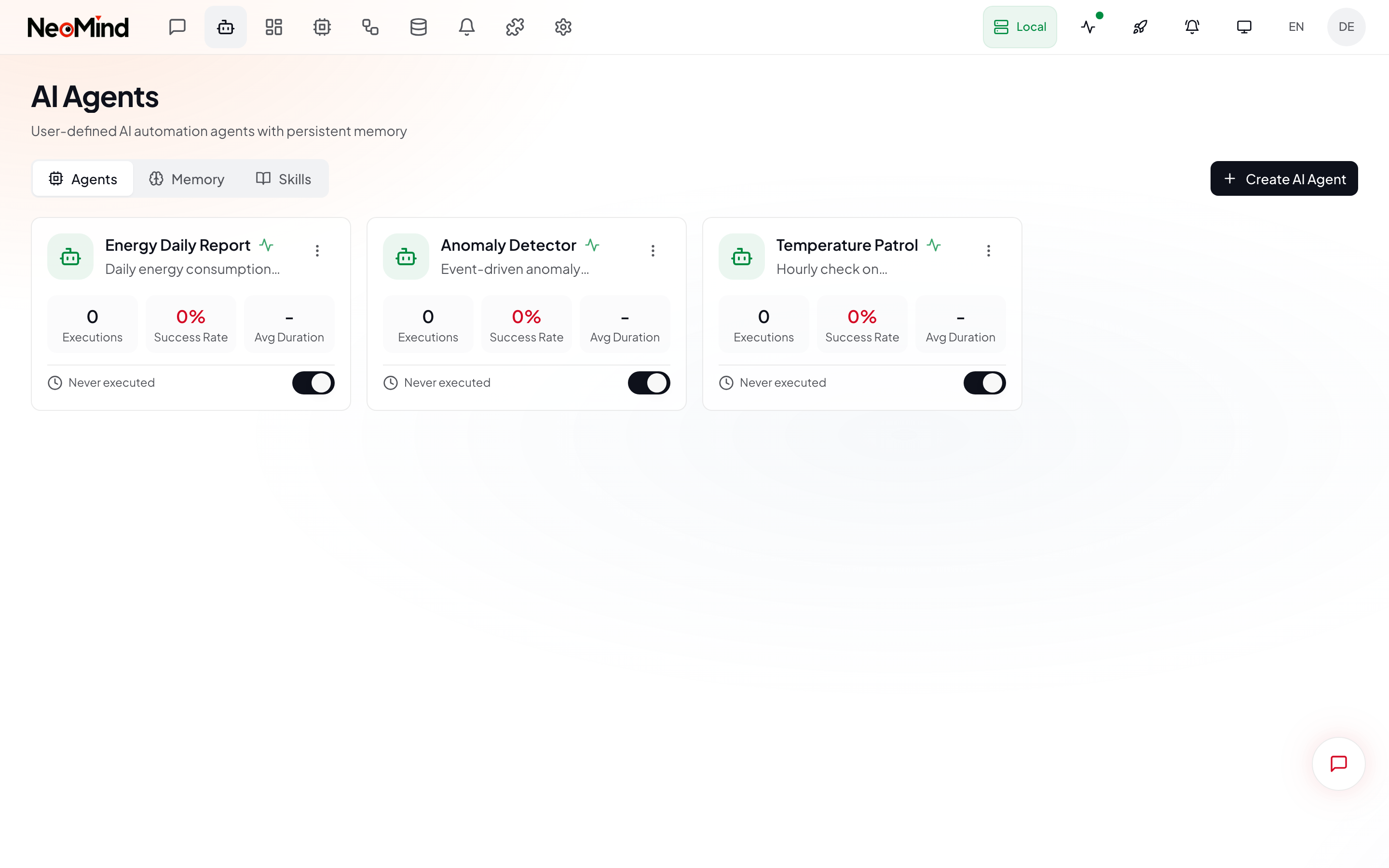

Click Agents (bot icon) in the left nav to open the Agent management page:

The page displays all agents in a card grid, each card showing:

Info	Description
Agent Name	The name you set (e.g. "Temperature Patrol", "Energy Report")
Status Badge	Active / Paused / Executing / Error
Schedule	Cron expression / Interval / Event
Last Run	Time and result of the most recent execution

The page has three tabs at the top: Agents (agent list), Memory (system memory), Skills (skill management).

Creating an Agent

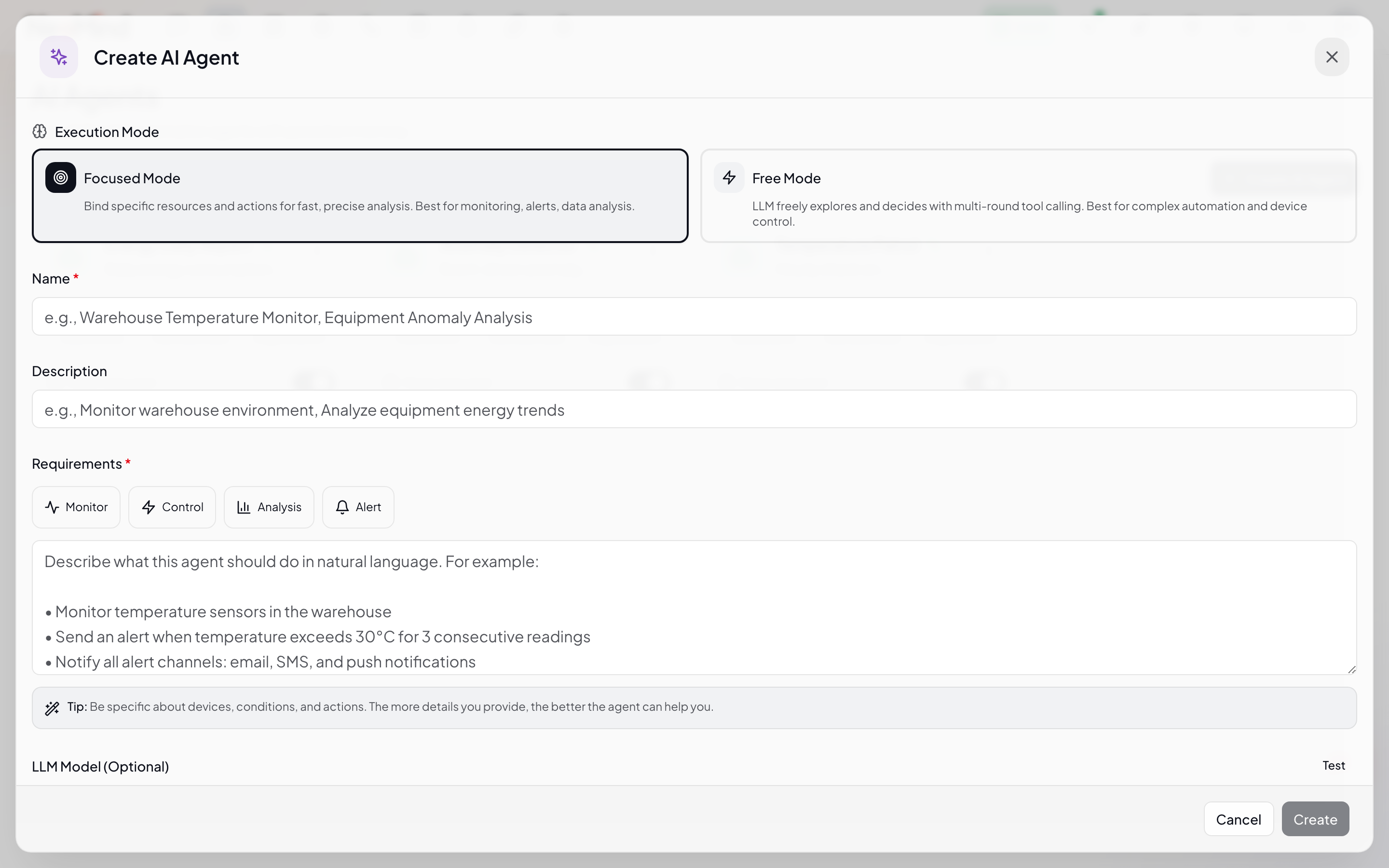

Click the Create AI Agent button in the top right to open the full-screen editor:

The editor is split into left and right columns. Here's what each field means:

1. Name & Prompt (Left)

• Name: 1–100 characters, easy to identify (e.g. "Energy Patrol", "Device Health Monitor")
• Description: Optional, brief summary of the agent's purpose
• User Prompt: Tell the Agent what to do. 1–10000 characters.

Example prompt:

Check the latest readings from all temperature and humidity sensors. If any sensor reports temperature above 35C, notify the ops team via Slack and log an alert on the dashboard. If all devices are normal, give a brief summary.

2. Execution Mode (Right)

Mode	Description	Best For
Focused	Binds specific resources; Agent works within defined scope, single-pass analysis, token-efficient	Monitoring, alerts, data analysis
Free	No resource binding; LLM freely explores with all tools, multi-round reasoning	Complex automation, device control, exploratory tasks

Focused mode requires bound resources (device metrics / extension metrics / devices / extension tools). The Agent only collects and analyzes data within the bound scope. Scope validation rejects commands outside bound resources.

Free mode needs no resource binding. The LLM has access to all tools (device / rule / message / extension / shell, etc.) and can do multi-round tool calls (default max 30 rounds, 5-minute timeout).

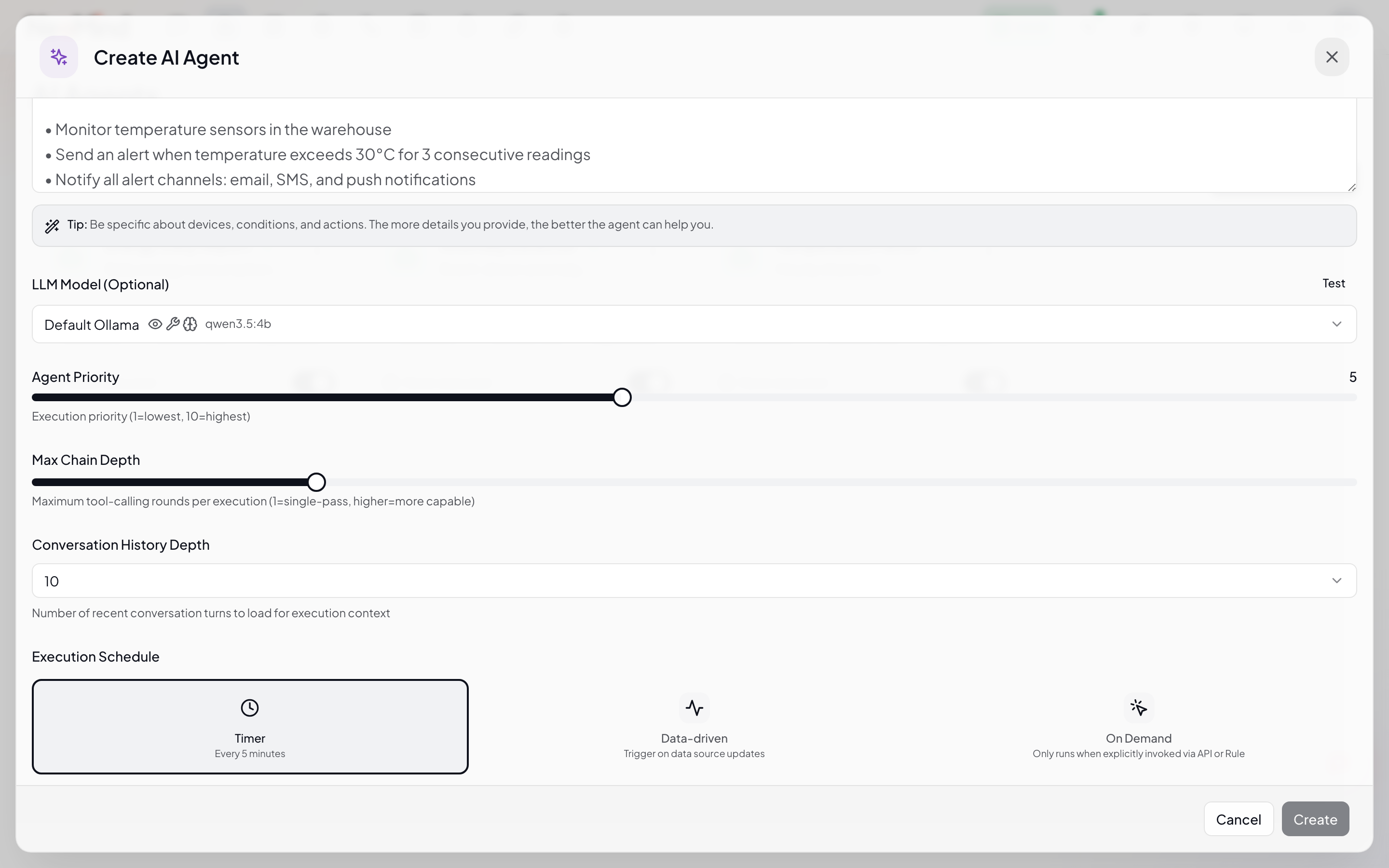

3. Schedule Type (Right)

Agents trigger automatically based on their schedule:

Schedule	Description	Config
Cron	Triggers on cron expression	schedule_type: "cron", cron_expression: "0 0 * * * *"
Interval	Executes every N seconds	schedule_type: "interval", interval_seconds: 300
Event	Triggers on device data change / alert	schedule_type: "event"

Cron uses 6-field format (with seconds): sec min hour day month weekday. For example, 0 0 * * * * = every hour on the hour, 0 0 8 * * * = daily at 8 AM.

Event trigger: Executes automatically when devices push new data or the system generates alerts. Ideal for real-time response scenarios (e.g. immediate analysis after anomaly detection). Event triggers have a 60-second dedup window to prevent event storms.

4. LLM Backend

Each Agent can bind an independent LLM backend. Decoupled from the Chat model — switching Chat models doesn't affect Agent configuration. Recommendations:

• Simple monitoring: Local small model (qwen3.5:4b), lower latency and cost
• Complex analysis: Large model (qwen3.5:32b / cloud model), better reasoning quality

Click Save at the bottom to save the Agent.

Agent Detail

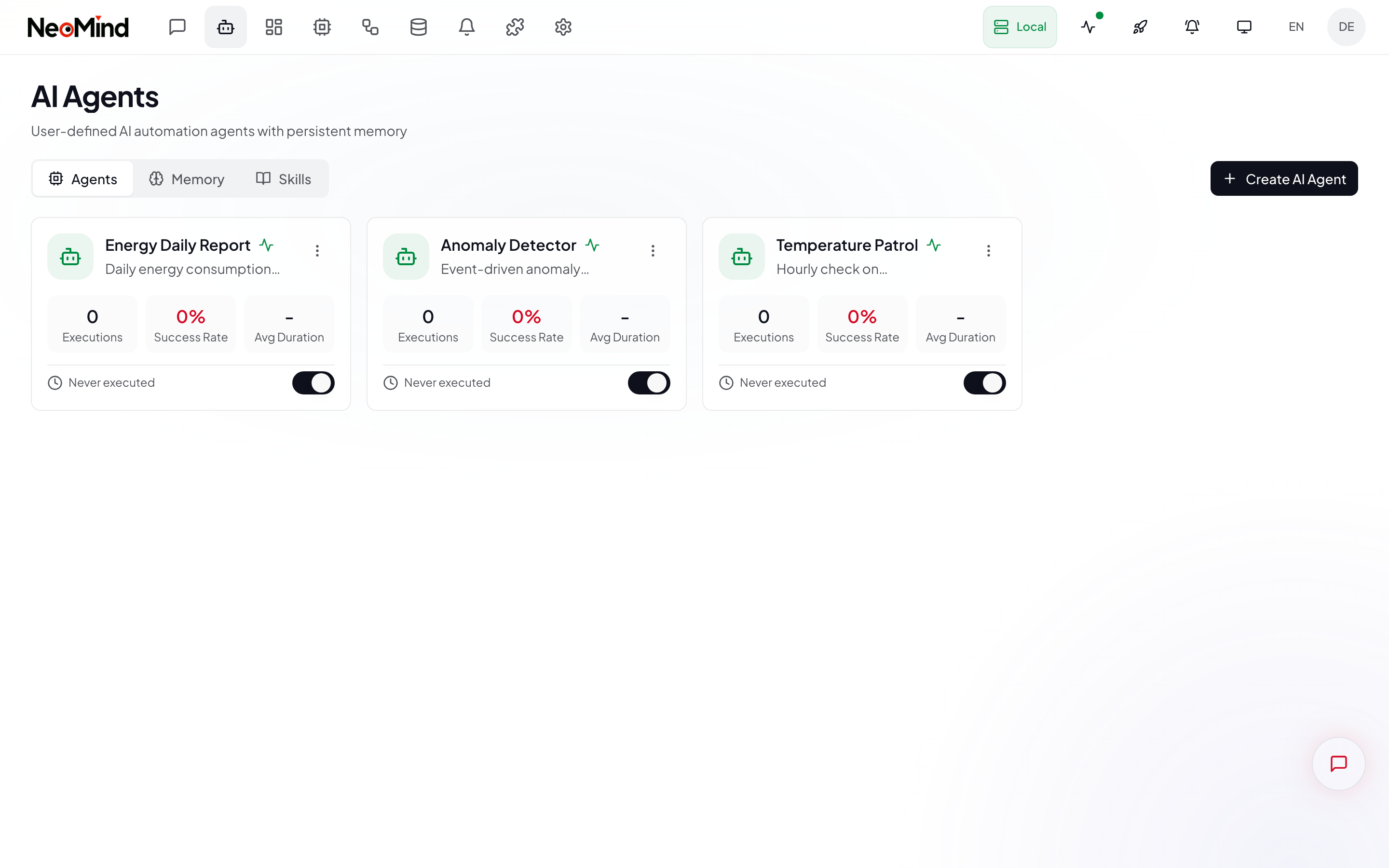

Click any Agent card to open the detail panel:

The detail panel contains multiple sections:

Section	Description
Top Action Bar	Edit and Run Now buttons
Overview	Agent basic info, bound resources, schedule config, LLM backend
Execution History	Chronological execution records with success/failure status and duration
Memory	Journal logs and Knowledge files
User Messages	Feedback messages left for the Agent

The Run Now button in the top right triggers an immediate execution without waiting for the schedule.

Agent Memory System

Agents have an independent memory system that accumulates experience across execution cycles:

Journal (Execution Log)

Each execution writes a journal entry recording:

• Execution time and trigger type
• Collected data summary
• LLM analysis conclusion
• Actions taken (action_taken)
• Success / failure status

On the next execution, the Agent reads recent journal entries to learn from historical patterns (avoid repeating failed actions, adjust thresholds, skip already-sent alerts).

Knowledge Files

Agent's persistent knowledge in Markdown format:

• identity.md — Agent identity and responsibilities
• mission.md — Task objectives and constraints
• resources.md — Bound resource descriptions
• schedule.md — Execution plan

Auto-initialized on first execution. You can manually edit these files to fine-tune Agent behavior (Agent detail → Memory panel).

User Messages (Feedback)

You can leave messages for the Agent (Agent detail page → User Messages), which the Agent reads on its next execution. Used to correct Agent behavior or provide additional context. Auto-retains the most recent 50 messages.

Execution Flow

Tool calls can loop (G → E) until the LLM no longer needs tools or hits the 30-round limit.

Status Management

The status badge on each Agent card reflects the current state in real time:

Status	Description	Color
Active	Agent is active, auto-executes on schedule	Green
Executing	Agent is currently running (real-time WebSocket push)	Blue / animated
Paused	Agent is paused, won't auto-trigger (can be run manually)	Gray
Error	Last execution failed, check logs to troubleshoot	Red

Pause/activate is toggled via the switch button on the card, which syncs with the scheduler — pausing unschedules, activating reschedules.

Real-time Execution Status

When an Agent is executing, the card shows a live "Thinking..." indicator (pushed via WebSocket), letting you see what the LLM is currently doing (e.g. "Querying device data", "Analyzing temperature trends").

Manual Execution

Don't want to wait for the schedule? Click Run Now on the Agent card or detail page to execute immediately.

Typical Scenarios

Scenario 1: Hourly Temperature Patrol (Focused + Cron)

• Mode: Focused
• Resources: Bind 3 temperature sensor metrics
• Schedule: Cron 0 0 * * * * (hourly)
• Prompt: Check the latest readings from all temperature sensors. Notify via Slack if above 35C. Send Telegram + email if above 45C.

Scenario 2: Event-Driven Anomaly Diagnosis (Free + Event)

• Mode: Free
• Resources: None (free exploration)
• Schedule: Event (device data change)
• Prompt: Analyze whether the incoming data is anomalous. If abnormal, query related device history, determine if alerting or auto-remediation is needed. May use shell tool to check system status.

Scenario 3: Daily Energy Report (Focused + Cron)

• Mode: Focused
• Resources: Bind energy consumption metrics
• Schedule: Cron 0 0 8 * * * (daily 8 AM)
• Prompt: Summarize yesterday's 24-hour energy data, calculate peak and average, compare with the same period last week, generate a daily report, and send it to the ops email.

CLI Management

# List all agents
neomind agent list

# View agent details
neomind agent get <agent_id>

# Activate / pause
neomind agent control <agent_id> active
neomind agent control <agent_id> paused

# Manually trigger execution (with input hint)
neomind agent invoke <agent_id> "Check all sensor readings"

Concurrency & Timeout

• Global concurrency: Max 10 Agents executing simultaneously
• Per-LLM-backend concurrency: Max 2 concurrent requests per backend
• Global timeout: Max 5 minutes (300 seconds) per execution
• Tool timeout: Shell 30s (max 600s), Web fetch 15s, Extensions 300s

If concurrency is full, the scheduler skips the current execution (retries on next tick).

Prompt Tips

• Be specific about output: "Generate a summary under 200 words" is more controllable than "analyze data"
• Give conditional branches: "If temp > 35 notify Slack; if > 45 also send Telegram and email"
• Reference device names: "Check sensor-01 through sensor-03" is more precise than "check all sensors"
• Leverage memory: The Agent reads journals, so you can write "If the same alert was already sent last time, don't repeat it"

Integration with Other Modules

Module	Integration
Automation Rules	Rule's TRIGGER_AGENT action can trigger Agents
Notifications	Agent decides whether to send notifications after analysis
Devices	Focused mode binds device metrics
AI Chat	Two AI operation modes, complementary

Mobile

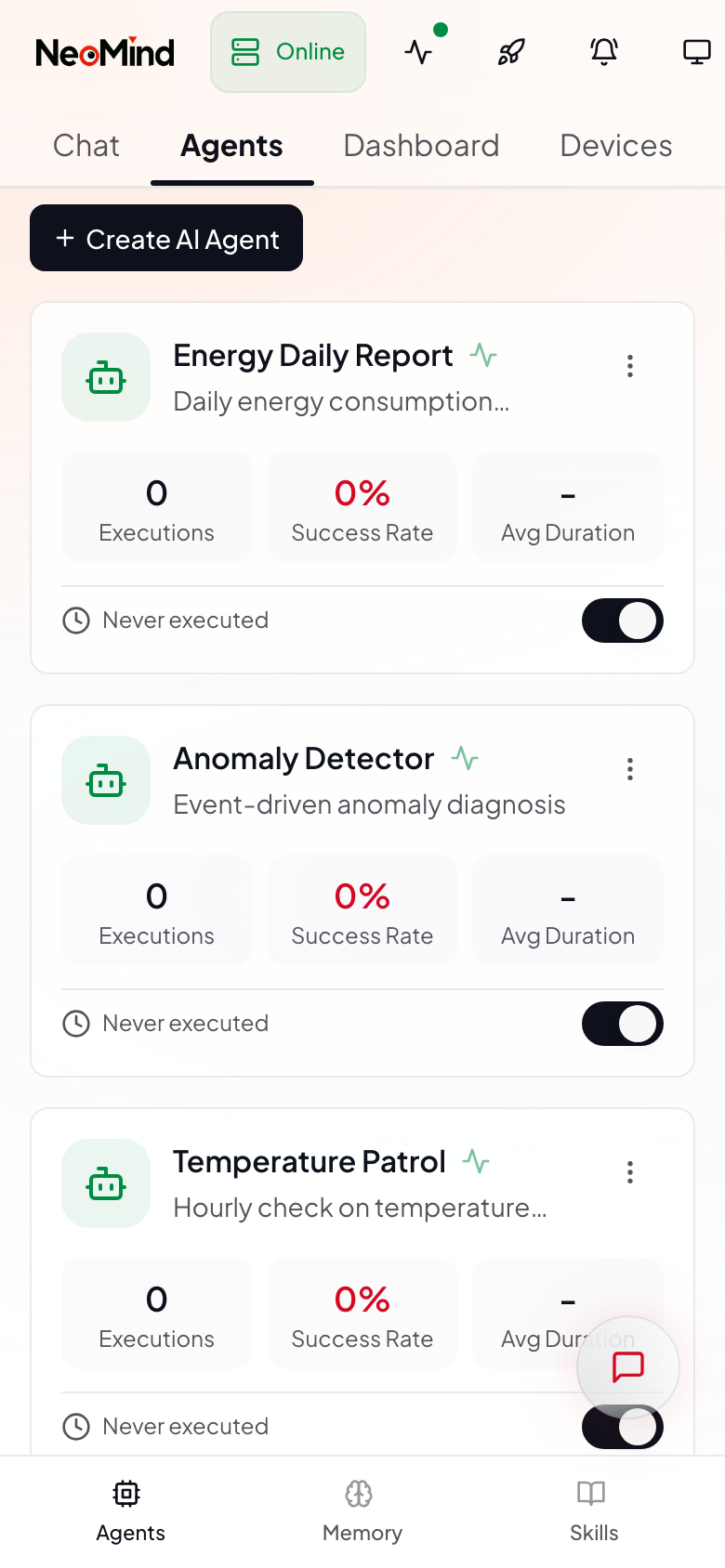

On mobile, the interface switches to a single-column card list, supporting status viewing, manual execution, and pause/activate toggling.

Next Steps

• Automation Rules — Use JSON rules for deterministic triggers and Agents for fuzzy judgment — they complement each other
• Notifications — Agent needs to notify ops after analysis? Configure notification channels first
• Extensions — Agents can call commands from installed extensions (YOLO detection, OCR, etc.)

---

Last updated: 2026-06-16
