Extension Management

Extensions are NeoMind's pluggable capability modules — vision AI, OCR, weather forecasts, custom data sources, and more are all integrated as extensions. Extensions run in separate processes and communicate via FFI, so a crash in any single extension does not affect the main service, achieving true fault isolation.

What Are Extensions?

Extensions provide three types of capabilities to NeoMind:

Capability	Description	Data form	Example
Metric	Time-series data produced by the extension, stored in telemetry.redb, viewable on dashboards	Stored as time series	temperature metric from a weather extension
Command	Callable operations invoked by AI Agent / API / rules, supporting parameters and return values	Input params → execute → return JSON	detect command from a YOLO extension
Component	Custom dashboard visualization components (provided by a frontend bundle shipped with the extension)	Dragged into the dashboard editor	Real-time annotated video frame from a video-stream extension

A single extension can declare multiple capabilities. For example, yolo-video-v2 simultaneously provides metrics (detection counts), commands (single-frame detection), and components (live annotated video).

Official Extensions

The NeoMind-Extensions repository provides official extensions:

Extension	Type	Capabilities	Description
Weather Forecast	Data Source	Metric + Command	Weather forecasts and real-time meteorological data (OpenWeather / QWeather)
YOLO Detection	Vision AI	Metric + Command	Object detection (YOLO models), supports images and video streams
OCR	Vision AI	Command	Image text extraction (PaddleOCR)
Face Recognition	Vision AI	Command + Component	Face detection and recognition
Video Stream	Streaming	Metric + Command + Component	RTSP/RTMP video stream ingestion and inference
Device Inference	Device AI	Metric	Edge AI camera (NE101/NE301) inference result ingestion

For end-to-end examples, see Use Cases.

Interface Overview

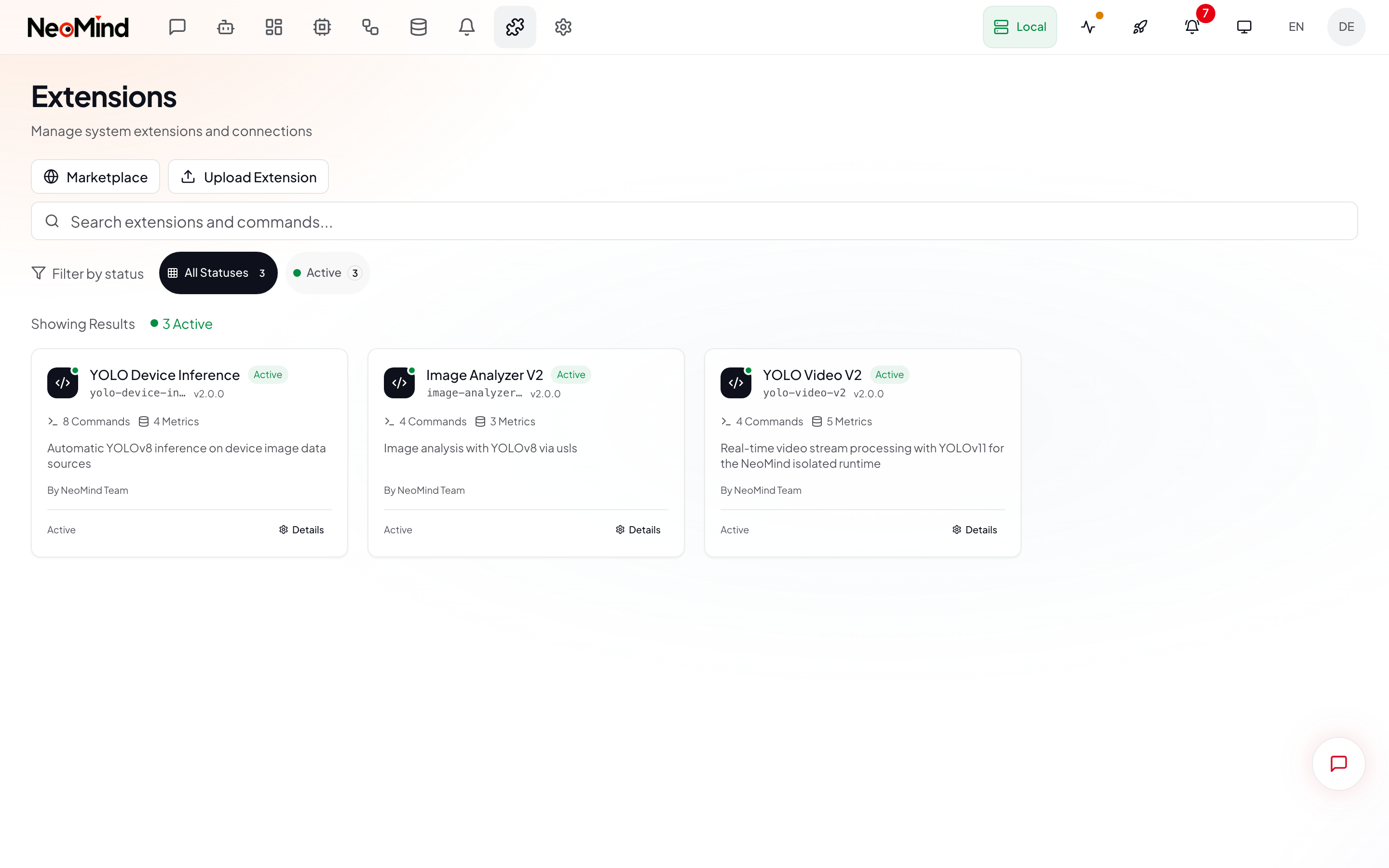

Navigate to the Extensions tab in the left sidebar to see all installed extensions:

The toolbar at the top provides three actions:

Button	Icon	Purpose
Refresh	RefreshCw (circular arrows)	Re-fetch the extension list to see the latest status
Upload	Upload	Open a local .nep package installation dialog
Marketplace	Globe	Open the official extension marketplace for one-click install

Each extension card displays: extension name, version, current status (Running / Stopped / Error), and capability icons (metric / command / component). Click anywhere on a card to open the extension details dialog.

Installing Extensions

NeoMind supports four installation methods, ordered by recommendation:

Method 1: Marketplace (Recommended)

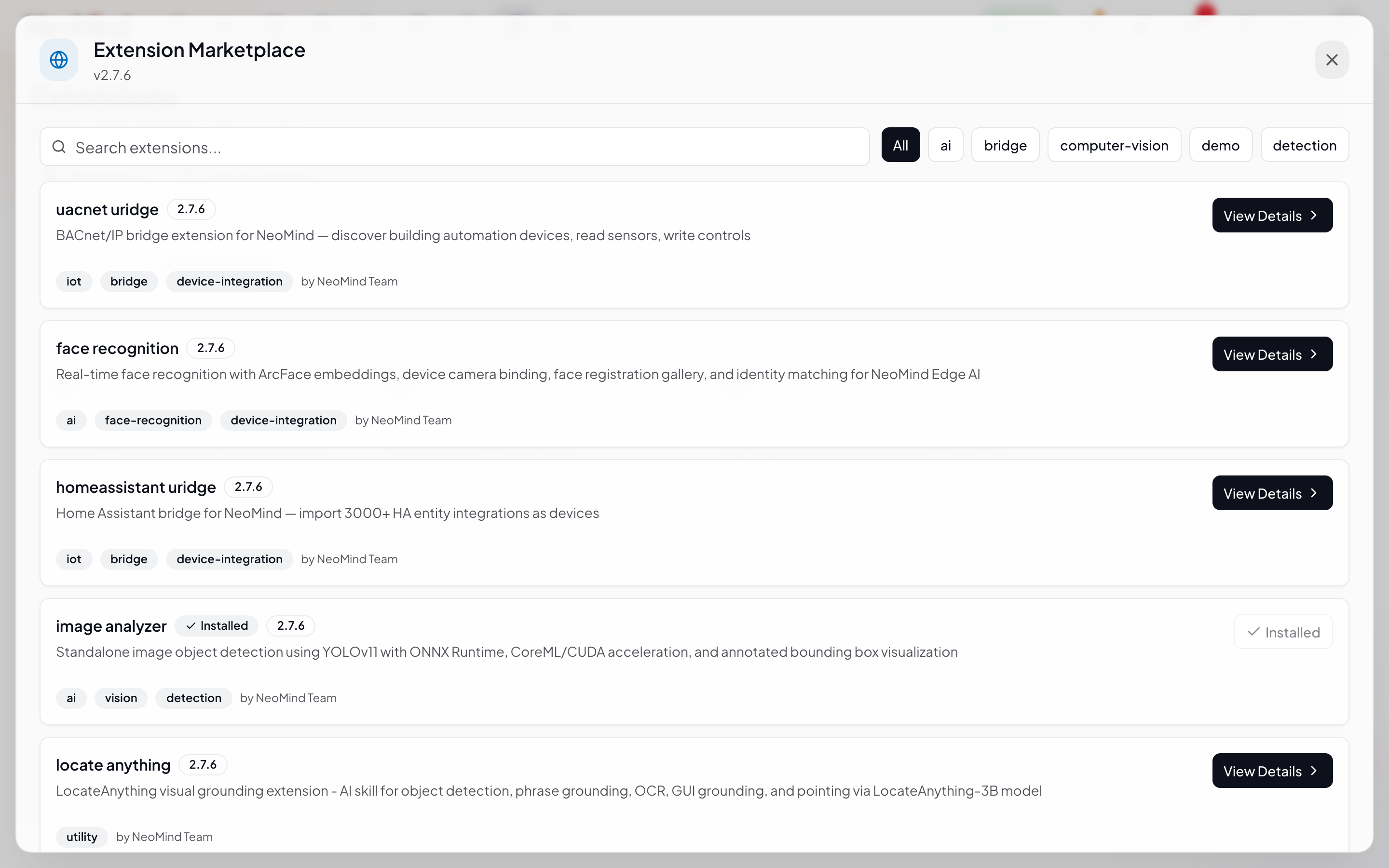

Click the Globe icon in the toolbar to open the marketplace dialog. NeoMind fetches the list of available extensions from the official repository:

In the marketplace dialog:

1. Browse available official extensions (name, version, description, size)
2. Click Install to download and install in one click
3. After installation, the extension automatically appears in the list and starts

Marketplace installation automatically selects the extension package matching the current main service's ABI version — no manual platform selection needed.

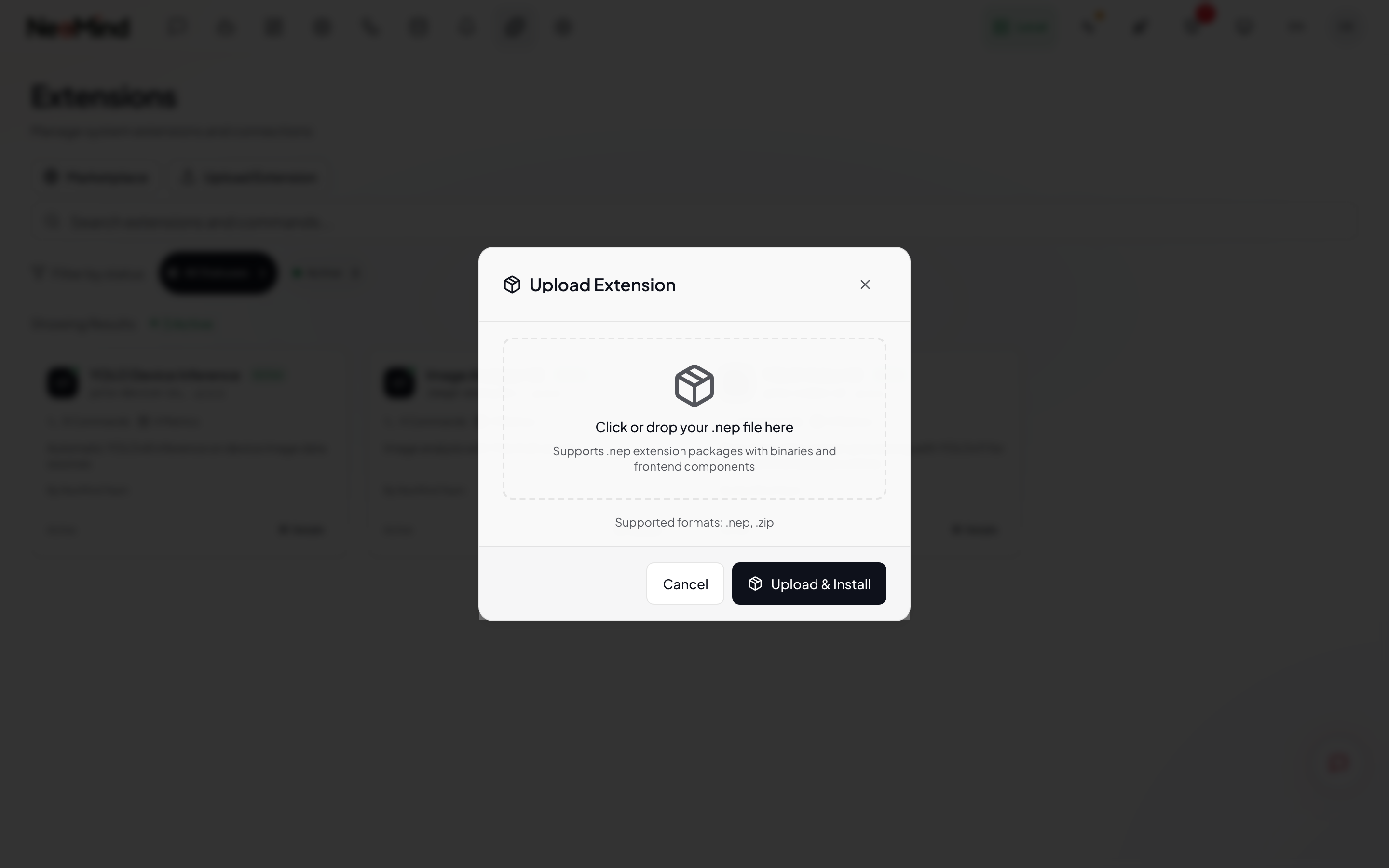

Method 2: Web UI Upload

If you already have a .nep package (self-developed or downloaded from Releases), use upload installation:

1. Click the Upload button in the toolbar
2. In the dialog, drag in or select a .nep file
3. NeoMind automatically validates package integrity, ABI version, and signature
4. After validation, it unpacks, loads, and starts the extension

tip

A .nep package contains multi-platform binaries (Linux .so / macOS .dylib / Windows .dll). NeoMind automatically selects the binary for the current platform. Cross-platform distribution requires no separate packaging.

Method 3: CLI

# Install a local .nep package
neomind extension install /path/to/weather-forecast.nep

# Install from URL (suitable for automated deployment)
neomind extension install https://github.com/camthink-ai/NeoMind-Extensions/releases/download/v0.6.1/weather-forecast-v0.6.1.nep

# List installed extensions
neomind extension list

# View extension details (metrics, commands, configuration parameters)
neomind extension info <extension_id>

# Uninstall
neomind extension uninstall <extension_id>

Method 4: AI Chat

Tell AI Chat directly:

"Help me install the weather extension"

The LLM guides you to upload a .nep package or provide a download URL, and automatically invokes extension install to complete the installation.

Extension Details and Configuration

Click any extension card to open the details dialog. The dialog uses a left-right layout: the left side has navigation for five sections, and the right side shows the corresponding content. Each section is described below.

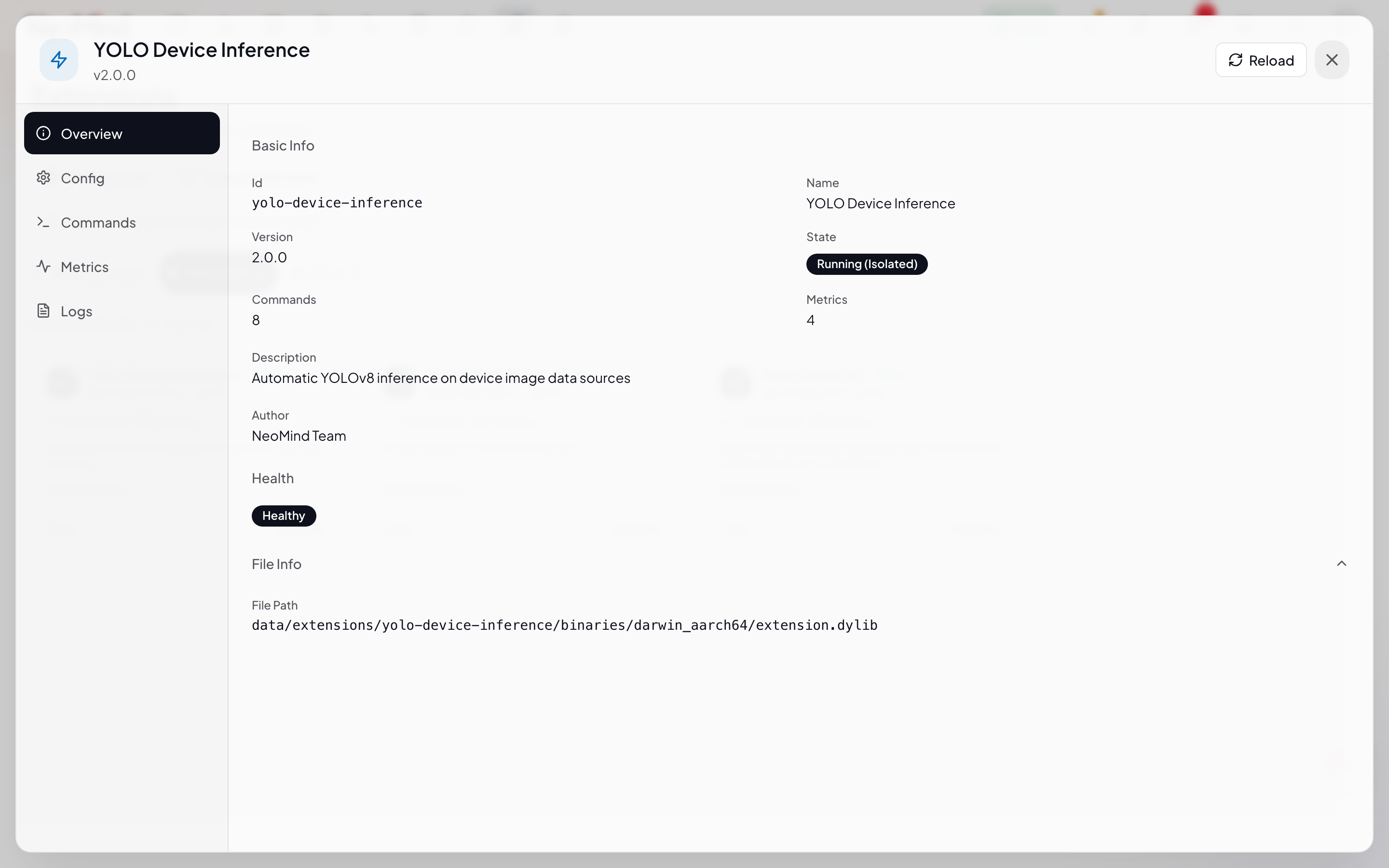

1. Overview

The Overview section displays basic information about the extension:

• Extension ID: Unique identifier (e.g., yolo-device-inference), used for API calls and data source binding
• Name and version: Human-readable name + SemVer version
• Status: Current runtime status (Running / Stopped / Error / Crash Loop)
• Capability declaration: Types of capabilities provided (metric count / command count / component count)
• Description: Functional description of the extension
• ABI version: ABI version the extension was compiled against (must match the main service)

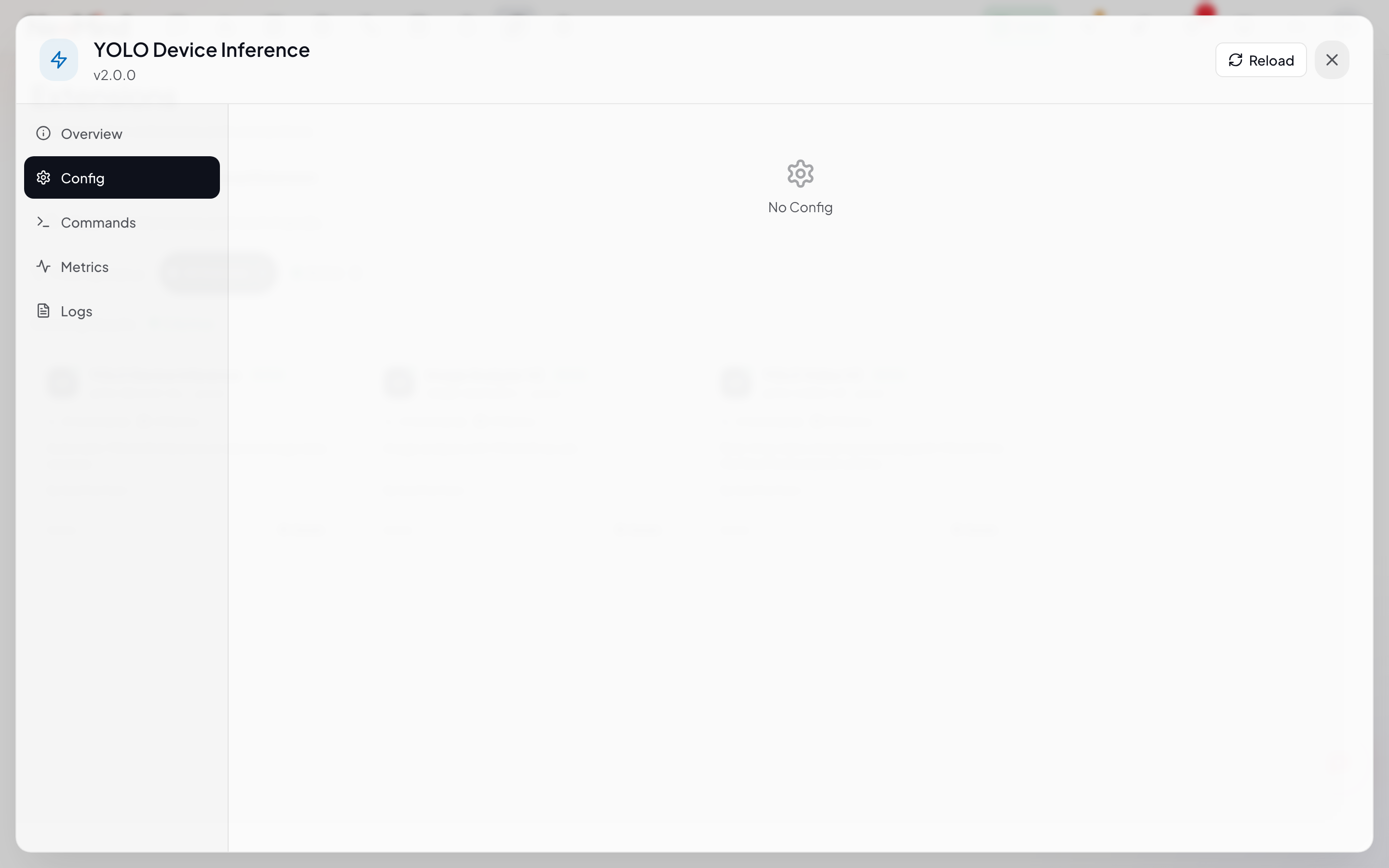

2. Configuration

Some extensions require configuration parameters to run (e.g., a weather extension needs an API key). Switch to the Configuration tab to configure:

Configuration parameters are automatically rendered as appropriate input controls based on their type:

Parameter type	Control	Validation rules
string	Text input	Required check, max length
string + password: true	Password input (masked)	Required check
string + enum	Dropdown select	Must choose from predefined values
integer / number	Number input	Min / max range
boolean	Toggle switch	true / false

After filling in the fields, click Save. The extension automatically restarts to load the new configuration. Invalid values (out-of-range numbers, missing required fields) cause an error on save and are not persisted.

tip

Configuration changes trigger an extension process restart — in-flight commands will be interrupted. For production environments, modify configuration only during maintenance windows.

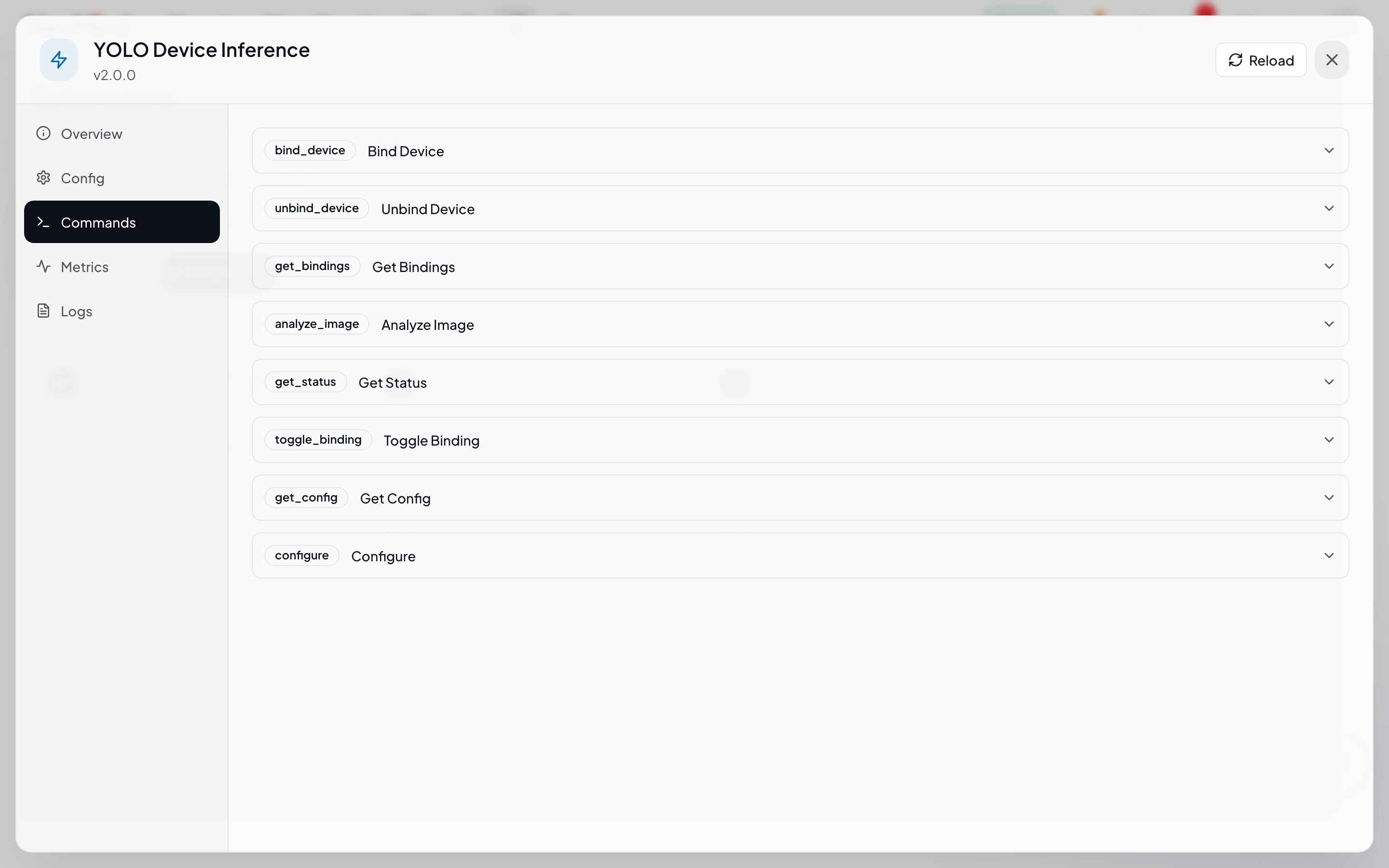

3. Commands

Commands are callable operations exposed by the extension. Switch to the Commands tab to see all commands:

Each command card displays:

• Command name: e.g., detect, ocr_recognize
• Description: What the command does
• Parameter form: Click the expand button to reveal the command's parameter input form
• Execute button: Fill in parameters and click to run; the result is returned as JSON and shown below

tip

Commands can be executed manually for testing, and also invoked by AI Agents / REST API / automation rules. Manual testing is the fastest way to verify an extension is working correctly.

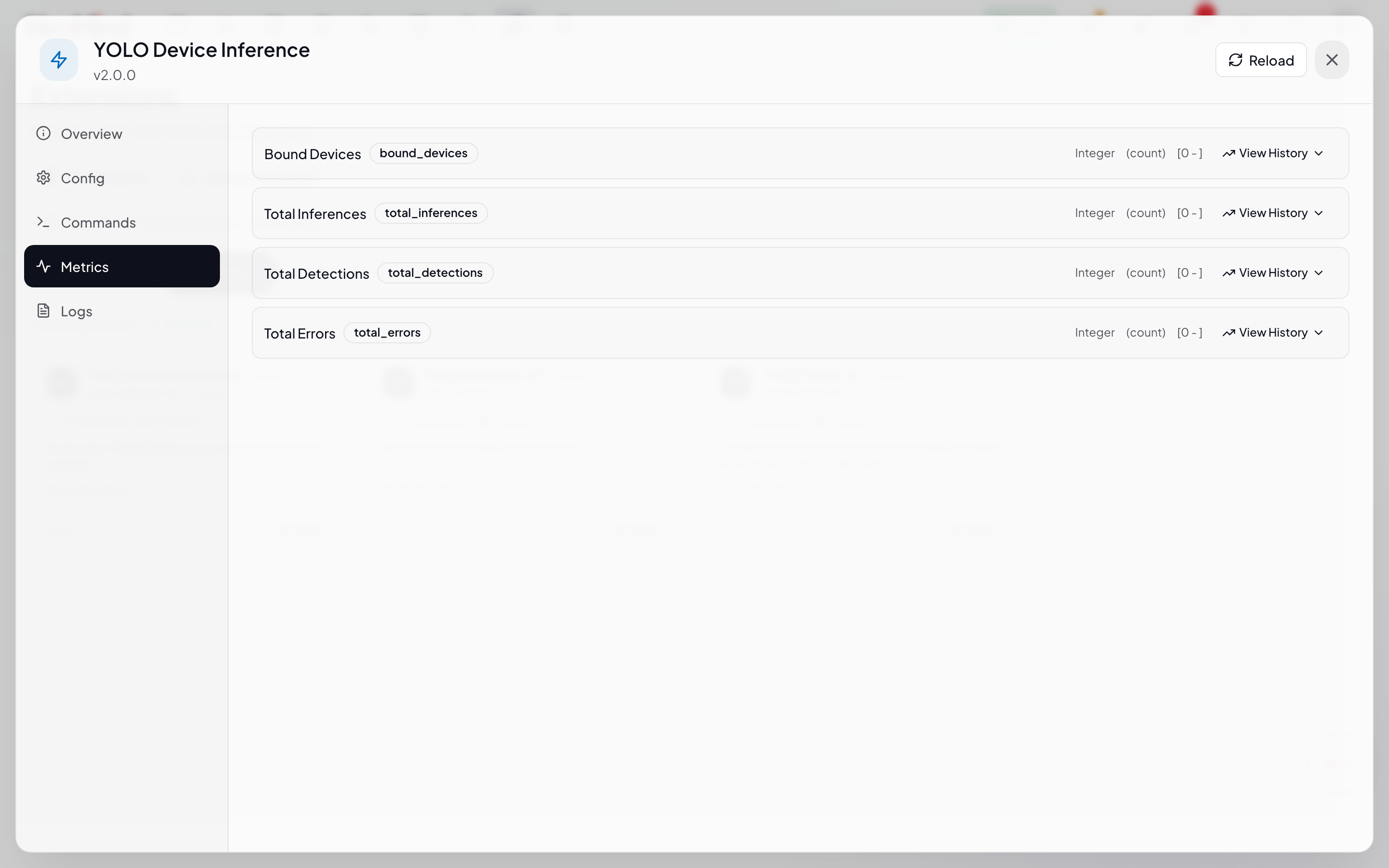

4. Metrics

Metrics are the time-series data produced by the extension. Switch to the Metrics tab to view historical data:

The Metrics section provides:

• Time range selector: 1 hour / 24 hours / 7 days / 30 days
• Metric list: All metrics produced by the extension (e.g., detection_count, avg_confidence)
• Trend chart: Select a metric to display its historical curve
• Latest value: Current real-time value of the metric

Metric data source format: extension:<extension_id>:<metric_name>. This can be used as a component data source in dashboards.

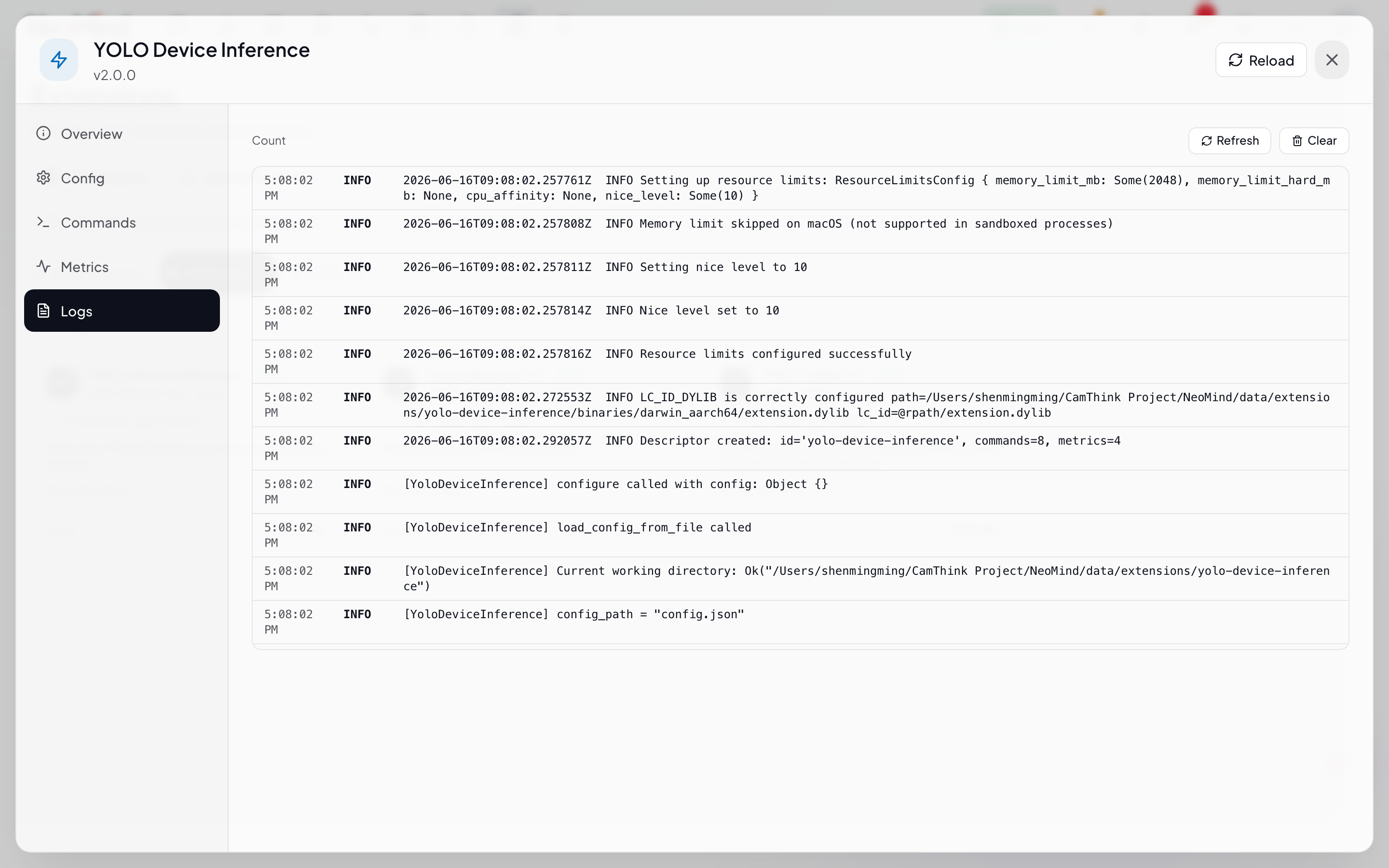

5. Logs

The Logs section shows the extension process's standard output and error output in real time:

Features:

• Auto-refresh: Fetches new log lines every 3 seconds
• Auto-scroll to bottom: New logs automatically scroll into view
• Error highlighting: ERROR / WARN level logs are highlighted in red / yellow
• Retention: Keeps the most recent 500 lines by default

When troubleshooting extension issues, the Logs section is your first stop. If an extension is in Error or Crash Loop state, the logs usually show the panic stack trace or initialization failure reason directly.

Extension Status and Lifecycle

Status	Icon	Description	Trigger
Running	Green dot	Extension is running normally	Install complete / manual start / auto-recovery
Stopped	Gray dot	Extension has been stopped	Manual stop / restarting after config change
Error	Red dot	Extension crashed or failed to load	Process exited abnormally / initialization failed
Crash Loop	Yellow dot	Crash loop detection triggered; auto-restart suspended	≥ 3 consecutive crashes within 50 seconds

Restart / Reload Extensions

# Restart an extension
neomind extension reload <extension_id>

# Check extension status
neomind extension status <extension_id>

# Start / stop
neomind extension start <extension_id>
neomind extension stop <extension_id>

You can also start / stop / restart / uninstall from the action menu on the extension details page.

Crash Protection

Extensions run in separate processes. NeoMind safeguards main service stability through multiple layers:

1. Process isolation — An extension crash does not affect the API, MQTT, dashboards, or other extensions
2. Auto-restart — An extension process that exits abnormally is automatically restarted, up to 3 attempts with a 5-second interval
3. Crash loop detection — If ≥ 3 consecutive crashes occur within 50 seconds, the extension enters Crash Loop state, suspending auto-restart to prevent resource exhaustion
4. In-app notifications — Crash events are written to the notification center, alerting operations staff

Crash Loop state requires manual intervention:

# View extension crash logs
ls data/logs/extensions/

# After fixing the root cause, manually restart
neomind extension start <extension_id>

Common crash causes: missing model files, invalid API keys, port conflicts, ABI version mismatches.

Using Extension Data

In Dashboards

Extension metrics are used exactly like device metrics. In the dashboard editor, when adding a component, select an extension metric as the data source:

• DataSourceId format: extension:<extension_id>:<metric_name>
• Example: extension:weather:temperature
• Extensions that ship components appear under the Extension Components category in the component library — just drag them in

In AI Chat

Tell AI Chat directly:

"Call the weather extension and check whether it will rain in Shanghai tomorrow."

The LLM automatically identifies the extension command, fills in parameters, invokes it, and interprets the returned result.

In AI Agents

Agents in Focused mode can bind:

• Extension metrics as data sources (for periodic analysis)
• Extension commands as tools (for LLM tool calling)

During execution, the Agent automatically invokes extension commands to close the reason-execute loop.

In Automation Rules

Automation rules can use extension metrics as conditions, or invoke extension commands as actions:

# Trigger a high-temperature alert when tomorrow's forecast temperature > 35°C
name: "High-temperature alert"
trigger:
  schedule: "0 18 * * *"  # Check every day at 18:00
condition:
  comparison:
    left: "extension:weather:tomorrow_temp"
    op: ">"
    right: 35
actions:
  - type: notify
    message: "High-temperature alert tomorrow — prepare for heat"

Extension Package Format (.nep)

.nep is the standard packaging format for NeoMind extensions — essentially a ZIP archive:

weather-forecast.nep
├── manifest.json      # Extension metadata (ID, name, version, ABI version, capabilities, config param definitions)
├── extension.so       # Linux shared library
├── extension.dylib    # macOS shared library
├── extension.dll      # Windows shared library
├── frontend/          # Optional: dashboard component bundle (manifest.json + bundle.js)
└── assets/            # Optional: model files, config templates
    └── model.onnx

note

Extensions must match the main service's ABI version (currently v3). Mismatched extensions are rejected at load time and display an "ABI version mismatch" error on the details page.

For detailed .nep structure and the development workflow, see Developer Guide - Extension Development.

CLI Reference

# Listing
neomind extension list                              # List all installed extensions
neomind extension list --json                       # JSON output (for scripting)

# Install / uninstall
neomind extension install <path-or-url>             # Install
neomind extension uninstall <extension_id>          # Uninstall

# Details and status
neomind extension info <extension_id>               # View metadata, metrics, commands, config params
neomind extension status <extension_id>             # View runtime status

# Lifecycle control
neomind extension start <extension_id>              # Start
neomind extension stop <extension_id>               # Stop
neomind extension reload <extension_id>             # Reload (restart process)

# Configuration
neomind extension config <extension_id>             # View current configuration
neomind extension config <extension_id> --set key=value  # Modify a config field

All commands support --json output for parsing in scripts. The CLI authenticates via the NEOMIND_API_KEY environment variable or --api-key flag.

REST API

Extension management also provides a REST API, for easy integration with external systems:

# List all extensions
curl -H "X-API-Key: $NEOMIND_API_KEY" http://localhost:9375/api/extensions

# Query a single extension's details
curl -H "X-API-Key: $NEOMIND_API_KEY" http://localhost:9375/api/extensions/<extension_id>

# Start / stop / reload
curl -X POST -H "X-API-Key: $NEOMIND_API_KEY" \
     http://localhost:9375/api/extensions/<extension_id>/start

curl -X POST -H "X-API-Key: $NEOMIND_API_KEY" \
     http://localhost:9375/api/extensions/<extension_id>/stop

curl -X POST -H "X-API-Key: $NEOMIND_API_KEY" \
     http://localhost:9375/api/extensions/<extension_id>/reload

# Invoke an extension command
curl -X POST -H "X-API-Key: $NEOMIND_API_KEY" \
     -H "Content-Type: application/json" \
     -d '{"image_url":"https://example.com/test.jpg"}' \
     http://localhost:9375/api/extensions/<extension_id>/commands/<command_name>

Full API documentation is available in Swagger UI at: http://localhost:9375/api/docs.

Troubleshooting

Quick Diagnosis

When you encounter extension issues, run these commands first to gather information:

# View all extension statuses
neomind extension list

# View a specific extension's metadata and recent errors
neomind extension info <extension_id>

# List extension process log files
ls data/logs/extensions/

# Check extension-related entries in the main service log
journalctl -u neomind.service | grep -i extension

You can also open the Logs tab on the extension details page to view process output in real time.

Common Issues

Problem	Possible cause	Solution
Extension shows Error after install	ABI version mismatch / binary load failure	Upgrade the extension or main service to a matching ABI version (currently v3); check Logs on the details page for the specific error
Install fails with Unsupported platform	The .nep package lacks a binary for the current platform	Verify the package contains the right platform directory (e.g., macOS arm64 needs darwin_arm64/); re-download the full package from the official source
Install fails with Extension already registered	An extension with the same ID already exists	Run neomind extension uninstall <id> first, then install the new version
Extension startup times out (Error after 120s)	Large model files / blocking initialization	Check Logs to see which step is stuck; if model loading is slow, wait longer or use a smaller model
Extension enters Crash Loop	Initialization failure / missing model / port conflict	Triggered after 3 crashes within 50 seconds. Check Logs for the root cause, fix it, then run neomind extension start <id>
Extension metrics don't show on dashboard	Extension not configured / DataSourceId typo	Confirm the format is extension:<id>:<metric>; open details → Metrics to see actual metric names
AI cannot invoke extension commands	Extension is stopped	Start the extension from the Extensions tab; confirm status is Running
Command execution times out	Inference takes too long / input too large	Default timeout is 300 seconds; compress input images, reduce batch size, or check the network
No visualization components after install	The extension does not provide Component capability	Only extensions that declare a frontend bundle have dashboard components; check the capability declaration on the Overview tab
Extension doesn't restart after config save	Restart is triggered only when a value actually changes	Confirm the new value differs from the old; check Logs for reload confirmation
Marketplace install fails / Checksum failed	Network interruption / corrupted package	Click Install again; check proxy settings; or use the CLI to download from GitHub Releases instead

For more general troubleshooting tips, see Troubleshooting.

Developing Your Own Extension?

The complete extension development tutorial is in Developer Guide - Extension Development, covering:

• Creating a Rust extension project from scratch
• ExtensionMetadata::new() builder usage
• Exporting FFI entry points with the neomind_export!() macro
• Implementation patterns for the three capabilities (metrics / commands / components)
• Cross-platform packaging (6-platform matrix)
• ML model lifecycle management (lazy loading, keep-alive across sessions)

Next Steps

• Use Cases — See how extensions are used in real scenarios (object detection / OCR / face recognition)
• Dashboard — How to display extension-provided visualization components on dashboards
• AI Agent — Have Agents invoke extension commands for automated inspection
• Automation Rules — Use extension metrics as conditions to trigger alerts and actions

---

Last updated: 2026-06-16
